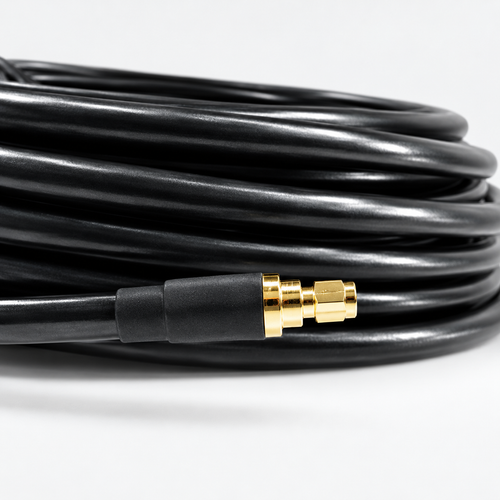

RP-SMA Extension cables
RP-SMA Extension Cables
RP-SMA Male to RP-SMA Female Cables
Compatibility with wireless standards & applications:
Our RP-SMA extension cables' range of frequency band compatibility (from 0 to 18GHz), consistently low broadband VSWR, and impedance matching to 50 Ohm antennas and cables, makes them suitable and compliant for all the following applications:
- Rated for outdoor use and is also suitable for indoor use.
- All WiFi standards: 2.4GHz and 5GHz applications: 802.11AC, 802.11N, 802.11G, 802.11B, 802.11A
- Cellular Wireless LTE / 4G, GSM / 3GWiMax, 5G: Data and voice applications.
- IoT wireless, automation & M2M: Bluetooth, ZigBee, RFID, LoRa, LTE-m, NB-IoT.
RP-SMA female connectors include a bulkhead nut and washer:
- This can be used to mount the connector (and thus the cable) on the wall of a network enclosure (to weatherproof the cable connection), or mount the connector on a case, panel or Printed Circuit Bard (PCB).
- Weatherproofing: Seal the hole where the female connector is mounted, by placing an O-ring between the wall of the enclosure and the bulkhead nut & washer on the female connector.
- The length of our standard RP-SMA-female connector (threaded part) is 3/8 inches. We have a longer option: 14.5mm, which is available as an option.
RP-SMA female and male diameter:
- RP-SMA female outside diameter is 5/16" (7.9375mm): Accommodates a hex nut (bulkhead nut) with 5/16" nominal outer diameter
- RP-SMA male inside diameter is 5/16" (7.9375mm) (the inside diameter where the threads are).
RP-SMA Connector Materials Composition
- Connector Body: Gold Plated Brass
- Center Contact: Beryllium Copper, Gold Plated
- Crimp Ferrule: Copper, Nickel Plated
- Insulators: PTFE
- Precision machined for low loss in ISO 9001 facilities
RP-SMA Connector: Other Characteristics and Details
- RP-SMA = Reverse Polarity SMA. Also known as SMA-RP, SMA-R, SMA RP, SMA R.

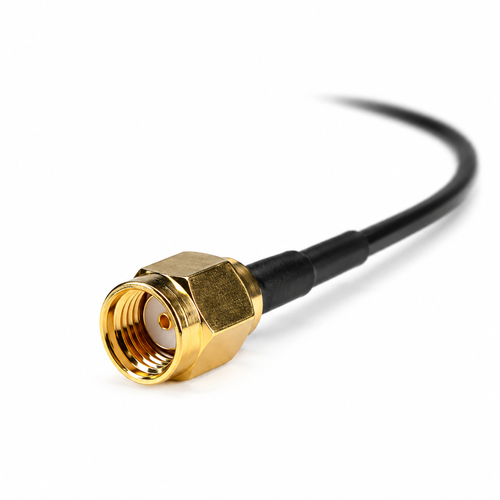

- RP-SMA gender is counter-intuitive: Please observe picture & note it is correct. The gender is referring to the pins inside--not the threads. RP-SMA male has threads on inside. More details regarding RP-SMA gender determination.
- RP-SMA female connector is also called "jack" and RP-SMA-male is also called "plug."
- RP-SMA is a round screw-type connector, with medium-sized, threaded coupling connectors that are rated for frequencies from the lowest (DC) up to 18GHz.
- We offer an RP-SMA wrench to assist in installing antennas, cables and adapters with RP-SMA or SMA connector(s).
- RP-SMA connectors are not compatible with the common, commercially available Type F coaxial connector. Type F connectors look similar but are of slightly different size and will not pair with RP-SMA connectors without an adapter.
ROHS 3 and REACH: In compliancefor content of lead, other heavy metals and toxic materials that are restricted by RoHS 3 and REACH..
