2.4GHz Antennas with RP-SMA connector
RP-SMA Antennas for the 2400 MHz Frequency Band

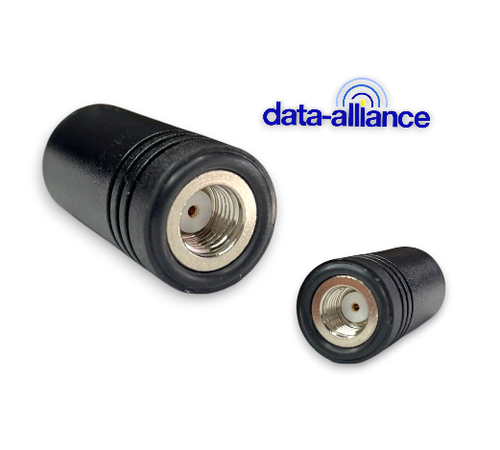

The 2.4GHz frequency band is one of the most commonly used bands in wireless communication due to its global availability and relatively unlicensed nature. RP-SMA antennas designed for this frequency (i.e., with the popular, threaded RP-SMA connector or a cable to an RP-SMA-male connector), find applications in a myriad of devices and systems.
Applications of 2.4GHz Antennas with RP-SMA Connector
- Applications that use Wi-Fi technologies on the 2.4GHz include modern printers, cars, digital audio players, smart TVs, tablets, smartphones, video game consoles, laptops, and desktops.
- Routers and Access Points: These antennas are commonly seen in household Wi-Fi routers and commercial access points. The RP-SMA connector allows for easy replacement or upgrade of antennas to improve range and signal quality.
- Wi-Fi Adapters: External USB Wi-Fi adapters for computers often come with detachable antennas using the RP-SMA connector.
These include Internet of Things (IoT) devices, Bluetooth, Phones, Wi-Fi, Car alarms, Microwave ovens, and video devices. Of course, all of this usage creates "noise" on the 2.4GHz that can impair range and performance.
Bluetooth used to be limited to special use equipment but is now used in all manner of devices from trackballs, trackpads, wireless mice and keyboards and wearables.
- Audio Devices: Wireless headphones, speakers, and audio transmitters utilize 2.4GHz antennas for Bluetooth connectivity.
- Peripheral Devices: Wireless keyboards, mice, and game controllers often use this frequency for reliable data transmission.
Industrial IoT Applications
- Remote Controls: Industrial machines and drones often utilize 2.4GHz remote controls with detachable antennas for more robust and interference-free communication.
- Wireless Sensors: In industrial automation, wireless sensors communicate data back to central systems using the 2.4GHz band.
Internet of Things (IoT) Devices for Home Automation & Monitoring
- The 2.4GHz band is widely adopted for many IoT devices for home automation, health monitoring, and more. Devices like smart thermostats, light bulbs, and wearables might utilize this frequency for communication.
Zigbee and Thread Networks
- These are low-power, mesh network technologies often seen in smart home devices. The 2.4GHz antennas with RP-SMA connectors can be used in Zigbee and Thread hubs, smart light switches, and other smart home components.
- Smart TVs and Set-top Boxes: These devices use 2.4GHz antennas for wireless internet connectivity or for connecting with other wireless devices.
- Cameras: Wireless security cameras and baby monitors operating in the 2.4GHz band might use antennas with RP-SMA connectors for better range and signal quality.
Drones and Other Radio Control (RC) Hobbyist Devices
- Drones: Many consumer drones operate in the 2.4GHz band for remote control, with antennas easily replaceable using the RP-SMA connector.
- RC Cars, Boats, and Airplanes: These hobbyist devices often operate on the 2.4GHz frequency for better interference resistance and range.
- Some wireless medical devices, like patient monitors or wearable health trackers, might use the 2.4GHz band for data transmission.
- For establishing short to medium-range wireless communication links, 2.4GHz antennas can be employed in applications like outdoor Wi-Fi bridges.
Other Information and Considerations regarding 2.4GHz Antennas
A 2.4GHz antenna is a device that receives or transmits radio frequency at 2.4GHz.
Wi-Fi technology typically uses two frequency bands the 2.4GHz and the 5.7 - 5.8GHz band. 2.4GHz is an older protocol that is an unregulated frequency.
Advantages and Disadvantages of 2.4 GHz versus 5.7 - 5.8GHz band (Note: In this article, we will sometimes refer to 5.7-5.8GHz band as 5GHz band).
When it comes to wireless networks, higher frequency bands will have shorter ranges while lower frequency signals will have longer ranges (if not considering signal-interference (also called "channel noise"), which is more likely to be an issue with 2.4GHz than with the 5.7-5.8 GHz band). As such, the 2.4GHz frequency provides better range than the 5.7-5.8 GHz band, and it passes through obstructions better. 5GHz is a higher frequency and thus provides faster speeds, and is less susceptible to channel noise, but does not penetrate obstacles very well.
The 2.4 GHz band is used not only by WiFi but also Bluetooth, and tends to have more wireless network devices crowding the channels. In spite of all this noise and traffic, 2.4GHz tends to be the better option for range in a network for home or a small business.
The general rule of thumb when you are doing home networking is that WiFi routers on the 2400 MHz have a range of about 300 feet outdoor waterproofing and 150 feet indoors. Conventional 5GHz frequencies could only have a range of about one third those of the 2.4GHz frequencies. Obstructions such as metal frames, sidings, and brick walls reduce the range of the signal by as much as 25%.
Many Household Items use 2.4GHz frequency band, but with internal antennas with no RP-SMA connector
- Phones – Many cordless phones and other household wireless items such as baby items use the 2.4GHz frequency.
- Car Alarm – Most vehicle manufacturers make their car alarms on the 2.4GHz wireless frequency.
- Video Devices – Video senders are designed to use an FM carrier on the 2.4GHz frequency to carry signals from closed circuit television and satellite TV from room to room. Amateur Radio operators are also allowed to transmit signals on the 2.4GHz band
