Antenna 2.4GHz 7dBi Directional Panel w/ RP-SMA. WiF Signal Booster. FPV
- SKU:
- A7P
- Availability:
- In stock
- Weight:
- 0.20 LBS
Alfa Network
Antenna 7 dBi WiFi 2.4GHz Directional Panel w/RP-SMA
- Directional antenna concentrates signal in the direction that it's facing.
- Better alternative to omni-directional antennas, for most users of USB wireless adapters: Omni-directional antennas pickup stray "interference" signals that can degrade performance: If you want to send/receive a signal in a particular direction, a directional antenna will achieve higher performance by eliminating most of the interference.
- Optional magnetic mount with 6.5FT cable to RP-SMA-male connector: Choose as option with checkbox above.
- For Wireless/WiFi 802.11N/G/B. 2.4GHz, Bluetooth.
- FPV antenna for both RX & TX: Hundreds of customers are using this antenna for FPV RX & TX, with excellent results
- Inexpensive to ship: Weight is only 1.7 ounces
Compatibility with wireless standards & applications:
- IoT wireless & M2M: Bluetooth, ZigBee, and ISM. Since it is vertically polarized, it is compatible with many machine to machine communication applications, remote monitoring, and telemetry applications.
- 2.4GHz WiFi applications: 802.11N, 802.11G, 802.11B
- Linear polarized, it is suitable for many of today’s machine to machine and communication applications such as telemetry, remote monitoring and mesh networking applications.
- Directional, direct connect antenna tuned to perform on 2.4GHz networks.

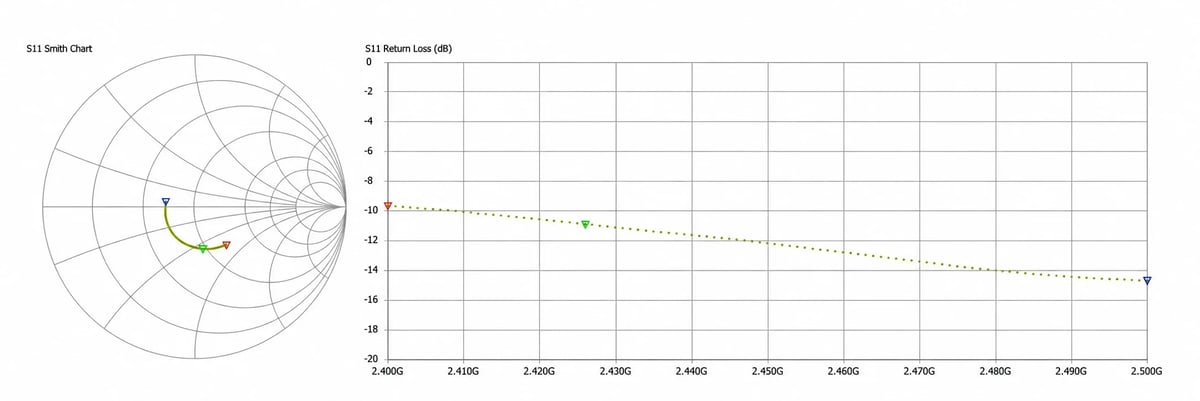

Suitable and compliant for all the above applications because of this antenna's range of frequency band compatibility in the 2.4 ~ 2.5GHz frequency band range, its low broadband VSWR, and impedance matching to 50 Ohm gear.
| SPECIFICATION | |
| Connector | RP-SMA (SMA reverse polarity, male) |
| Frequency | 2.4GHz ~ 2.5GHz |
| VSWR | 2.0 |
| Gain | 7dBi |
| Polarization | Linear, Vertical |
| Impedance | 50 |
| Connector | RP-SMA PLUG |
| Operation Temp | -10C ~ +55C |
| Humidity | 95%@25?C |
| Dimension | 120*90*15*mm |
ROHS 3 & REACH compliant: Antenna, cable and connector are all compliant with ROHS 3 and REACH.
RP-SMA Connector Characteristics and Details:
- RP-SMA = Reverse Polarity SMA. Also known as SMA-RP, SMA-R, SMA RP, SMA R.
- RP-SMA gender is counter-intuitive: The gender is referring to the pins inside-not the threads. RP-SMA male have threads on the inside. More details regarding RP-SMA gender determination.
- RP-SMA-male is also called "plug" and the respective female connectors are also called a "jack."
- RP-SMA are round screw-type connectors, with medium-sized, threaded coupling connectors that are rated for frequencies from the lowest (DC) up to 18GHz.
- RP-SMA male connector fits items that have an RP-SMA (female) jack/connector.
- We offer an SMA wrench to assist in installing antennas, cables and adapters with SMA or RP-SMA connector(s).
- Composition of RP-SMA male connectors:
- 96% brass-copper alloy
- Less than 4% lead content (ROHS Compliant)
- 0.1% Chromium VI compound
- 0.01% (by weight) Cadmium / cadmium compounds
- 0.1% Mercury
- 0.1% PBBs
- 0.1% PBDE
- Mounts directly onto RP-SMA(female) connector of access point, bridge, USB WiFi adapter, or booster. See other magnetic bases that fit this antenna and have antenna cables with other types of connectors.
Articulating (Bendable) Right Angle: This antenna can be angled up to 90 degrees (articulating right angle) or positioned straight. The articulating (bendable) right-angle isn’t weatherproof: Water can seep into the angled part of the antenna. Articulating right-angle antennas are therefore recommendable for indoor use or protected outdoors, i.e. under an eave. If you need a weatherproof dipole antenna, you should choose either a straight dipole or one with a fixed right angle. See our weatherproof antennas.
RELATED PAGES:
- Antenna Mounts & Brackets
- Antennas: How to choose
- Directional Antennas
- Omni-Directional Antennas
- Wireless Frequencies: 2.4GHz, 5GHz, 900MHz, WiMax
All of our antennas pass QC test before we ship them.
