N-female To RP-SMA female Cable: 8-inch 10-inch 18-inch

$4.30
SKU:
Nf10iRSf
Brand:

Availability:
In stock
Weight:
0.19 LBS
Antenna cable: N-female To RP-SMA female Reverse Polarity: 10-inch coax

N-female To RP-SMA female Cable

Antenna Cable / Adapter with RP-SMA female connector on one end and an N-female connector on the other end.

  • We stock many more RP-SMA to N-type cable options
  • This cable is rated for outdoor use and is also suitable for indoor use.
  • See our mounts for antennas with N-female connectors.
  • The length refers to the length of the cable between the connectors (not including the connectors).
  • Allows interconnection of devices with RP-SMA male and N-male interfaces: Antennas, antenna cables and wireless devices.
  • For coaxial extension (for better antenna positioning), coaxial interface conversion, coax retrofit applications.
  • Data Alliance's high-quality soldered terminations of RP-SMA and Type-N connectors with soldering provide a low-loss connection with discontinuities kept to a minimum.

The two lengths come in different thicknesses of coaxial cable: Both are double-shielded, both are rated for outdoor use and are also suitable for indoor use.

  • 10-inch version is LMR-100-equivalent cable-type: Equivalent or better than LMR100: Has the same or better signal-loss-per-meter and flexibility as LMR100 , and and less attenuation (signal loss) than RG174 and RG178. The higher quality of the cable of this antenna translates into lower loss/better performance. Cable is equivalent to LMR-100 in thickness: Very flexible/easily bendable
  • 18-inch version is LMR-200: has much lower attenuation (signal loss) than LMR-100 and RG58. Flexible and bendable.
  • Double-shielding of both LMR-100 and LMR-200 enables low signal loss. Both are flexible/easily bendable (LMR-100 is more flexible/bendable). The double-shielding is a major factor in the higher quality of this cable, which translates into lower loss/better performance.
  • See comparison of LMR-100 and LMR-200 attenuation (signal loss).
  • Both coaxial cable types have a black jacket.

The temperature range for operational use of these cable assemblies are as follows:

  • Cables with 100-series coax: -22 F ~ +185 F (-30 C ~ +85 C)
  • Cables with 200-series coax: -31 F ~ +203 F (-35 C ~ +95 C)

Compatibility with wireless applications: Our RP-SMA-male to N-male cable' range of frequency band compatibility (from 0GHz to 18GHz), consistently low broadband VSWR, and impedance matching to 50 Ohm gear, makes them compatible and compliant for all the following applications:

N-female Connector Characteristics and Details:

N-female connector with embedded o-ring

  • Durable, weatherproof connection
  • The N-female-bulkhead connector has a rubber O-ring, which provides a water-tight seal when installing in an enclosure port.
  • Nickel-plated brass body for enhanced corrosion resistance: Nickel plating is the most weather-resistant, corrosion-resistant metal plating.
  • Our N connectors provide a consistent performance from 900MHz to 12.5 GHz.
  • N-Female diameter is 0.620-inch (1.57 cm). N-male inside diameter is 0.620-inch (1.57 cm)
  • N-connector gender is counter-intuitive:.
  • N-Type connectors are the largest of the RF connector types, and are usually found on large antennas, especially for outdoor use.
  • Our N-Type connectors feature threaded coupling mechanisms and are fully interchangeable with N-Type connectors made to the MIL-C-39012 specification. These connectors are used in all systems where excellent RF and mechanical performance is critical.

N materials composition:

  • Connector Body: Nickel-Plated Brass
  • Center Contact: Beryllium Copper, Gold Plated
  • Crimp Ferrule: Copper, Nickel Plated
  • Insulators: PTFE
RP-SMA Female Version Options RP-SMA Elongated
The version of the RP-SMA female connector on the left has an embedded o-ring, together with a wider flange, for more secure protection against intrusion of water and/or dust and dirt. It is available for some cable versions on this page, and others by special order. The longer RP-SMA-female version (top in photo) has a 14.5mm threaded section. It is available for some cable versions on this page, and others by special order.



RP-SMA Female Connector Characteristics and Details

  • RP-SMA female connector includes a bulkhead nut and washer:
  • The length of our standard RP-SMA-female connector (threaded part) is 3/8 inches. We have a longer option: 14.5mm, which is available as an option. The longer 14.5mm option has an O-ring embedded in the flange to waterproof the port where the cable enters a network enclosure

RP-SMA female diameter:

  • RP-SMA female outside diameter is 5/16" (7.9375mm): Accommodates a hex nut (bulkhead nut) with 5/16" nominal outer diameter
  • RP-SMA male inside diameter is 5/16" (7.9375mm) (the inside diameter where the threads are).

RP-SMA-female Connector Materials Composition:

  • Connector Body: Gold Plated Brass
  • Center Contact: Beryllium Copper, Gold Plated
  • Crimp Ferrule: Copper, Nickel Plated
  • Insulators: PTFE
  • Precision machined for low loss in ISO 9001 facilities
  • RP-SMA-female connector fits items that have an RP-SMA (female) jack/connector: RP-SMA = Reverse Polarity SMA..

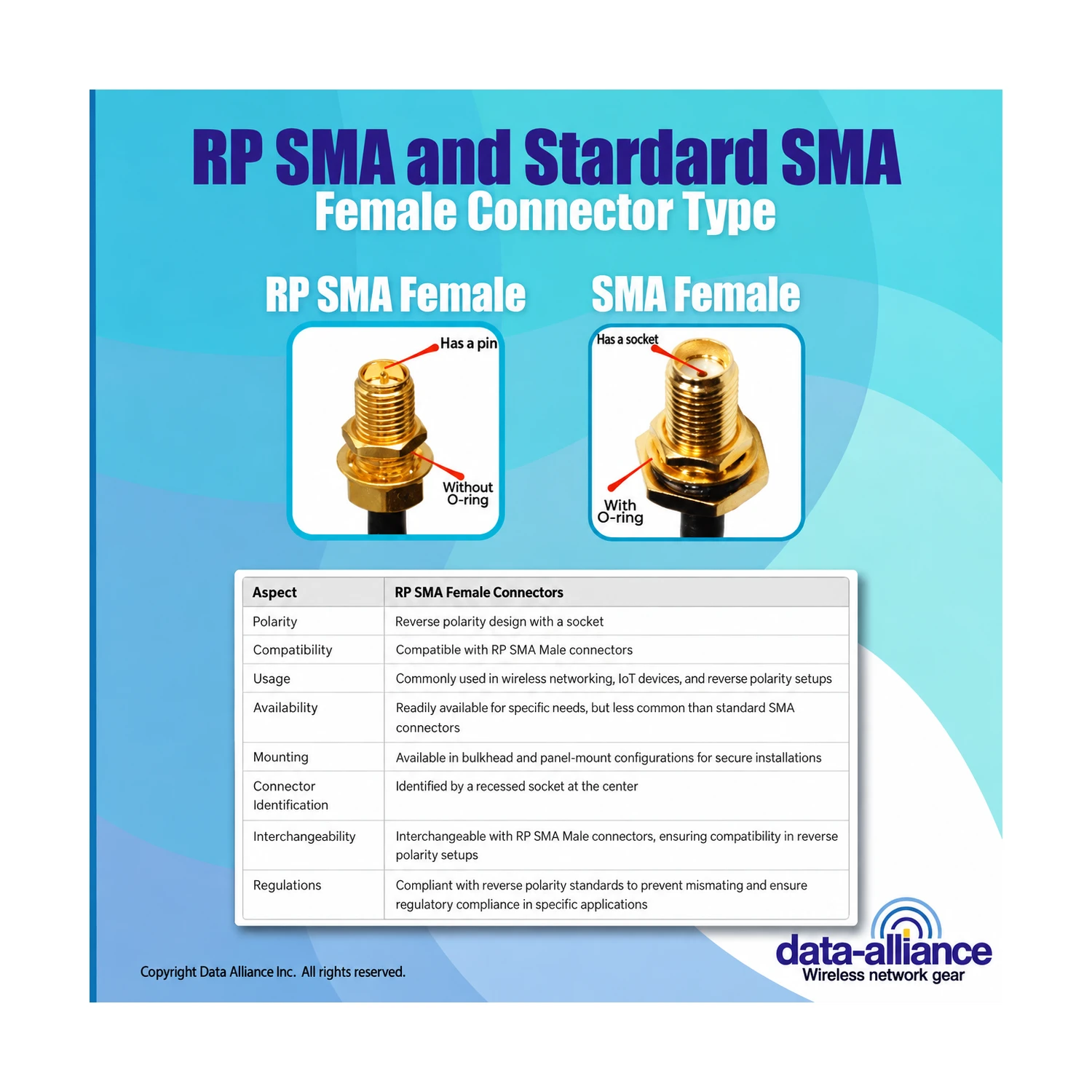

  • RP-SMA gender is counter-intuitive: Please observe picture & note it is correct. The gender is referring to the pins inside--not the threads. RP-SMA male has threads on inside. More details regarding RP-SMA gender determination.
  • RP-SMA female connector is also called "jack" and RP-SMA-male is also called "plug."
  • RP-SMA is a round screw-type connector, with medium-sized, threaded coupling connectors that are rated for frequencies from the lowest (DC) up to 18GHz.
  • We offer an RP-SMA wrench to assist in installing antennas, cables and adapters with RP-SMA or SMA connector(s).

RoHS and REACH compliant: All of our antenna cables and adapters are compliant with RoHS 3 and REACH restrictions on heavy metals and other toxins.
