N-male To RP-SMA-female: 10-inch, 24-inch Cable for Antenna

N-male To RP-SMA-female

Antenna Cable / Adapter with RP-SMA female connector on one end and an N-male connector on the other.

• We stock many more RP-SMA to N-type cable and adapter options.
• This cable is rated for outdoor use and is also suitable for indoor use.
• See our mounts for antennas with N-female connectors.
• The length refers to the cable size between the connectors (not including the connectors).
• Allows interconnection of devices with RP-SMA male and N-male interfaces: Antennas, antenna cables, and wireless devices.
• For coaxial extension (for better antenna positioning), coaxial interface conversion, and coax retrofit applications.
• Data Alliance's high-quality soldered terminations of Type-N and RP-SMA connectors with soldering provide a low-loss connection with discontinuities kept to a minimum.

The two lengths come in different thicknesses of coaxial cable: Both are double-shielded, rated for outdoor use, and suitable for indoor use.

• The 10-inch version is an LMR-100-equivalent cable type. Equivalent or better than LMR100: It has the same or better signal loss per meter and flexibility as LMR100 and less attenuation (signal loss) than RG174 and RG178. The higher quality of the cable of this antenna translates into lower loss/better performance. The cable is equivalent to LMR-100 in thickness: Very flexible/easily bendable.
• The 2FT version is LMR-200 and has much lower attenuation (signal loss) than LMR-100 and RG58. Flexible and bendable.
• The double-shielding of both LMR-100 and LMR-200 enables low signal loss. Both are flexible and easily bendable (LMR-100 is more flexible and bendable). The double-shielding is a major factor in the higher quality of this cable, which translates into lower loss and better performance.

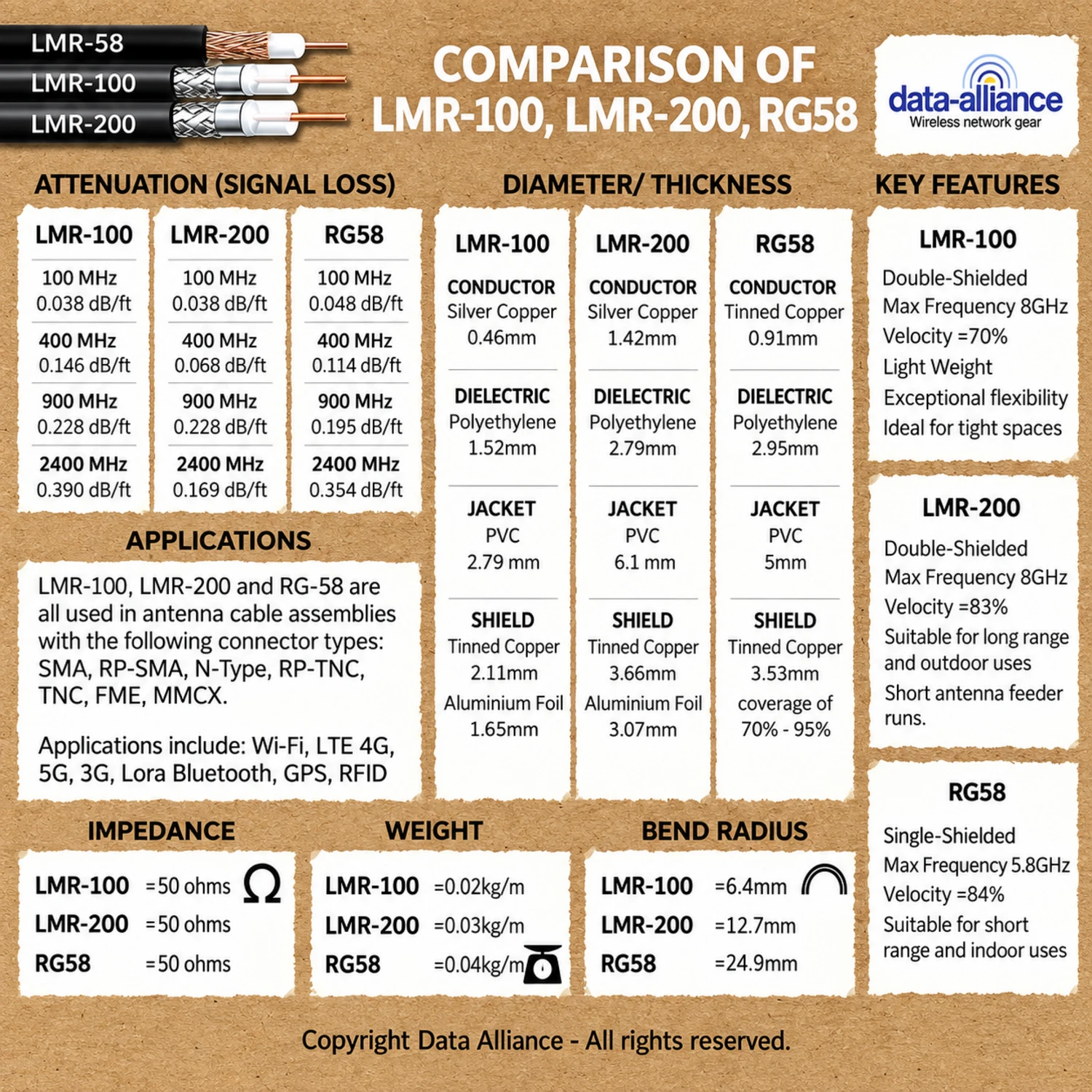

• See a comparison of LMR-100 and LMR-200 attenuation (signal loss).
• Both coaxial cable types have a black jacket.

The temperature range for operational use of these cable assemblies are as follows:

• Cables with 100-series coax: -22 F ~ +185 F (-30 C ~ +85 C)
• Cables with 200-series coax: -31 F ~ +203 F (-35 C ~ +95 C)



RP-SMA Female Connector Characteristics and Details

• • RP-SMA female connector includes a bulkhead nut and washer:
    • This can be used to mount the connector (and thus the cable) on the wall of a network enclosure (to weatherproof the cable connection) or on a case, panel, or Printed Circuit Board (PCB).
    • Weatherproofing: Seal the hole where the female connector is mounted by placing an O-ring between the enclosure's wall and the bulkhead nut and washer on the female connector.
  • Our standard RP-SMA-female connector (threaded part) length is 3/8 inches. We have a more extended option: 14.5mm, which is available. The longer 14.5mm option has an O-ring embedded in the flange to waterproof the port where the cable enters a network enclosure.

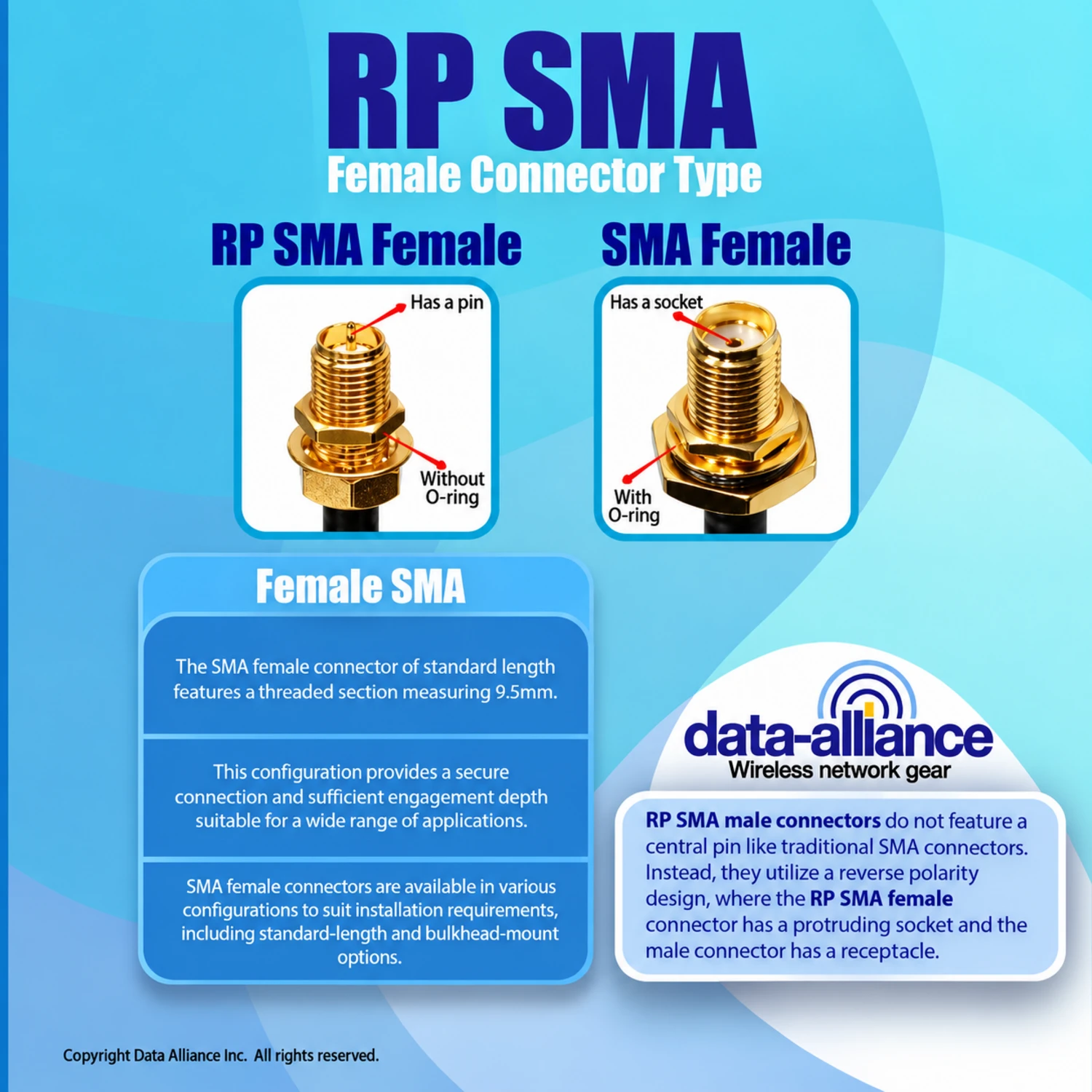

  • RP SMA Dimensions
  • RP SMA Connector Material Composition
  • RP SMA Features and Key Information

  N-male Connector Characteristics and Details: Durable, weatherproof connection

  • The N-male-bulkhead connector has an internal rubber O-ring, which provides a water-tight seal.
  • Nickel-plated brass body for enhanced corrosion resistance: Nickel plating is the most weather-resistant, corrosion-resistant metal plating.
  • Our N connectors provide consistent performance from 900MHz to 12.5 GHz. Their rating of up to 12.5GHz makes them usable in WiFi applications and the higher end of the microwave spectrum.
  • N-Female diameter is 0.620 inches (1.57 cm). N-male inside diameter is 0.620-inch (1.57 cm)
  • N-connector gender is counter-intuitive: Click here for details. Gender refers to the pin inside and not the threads.
  • The N-type connector is the largest of the RF connector types and is usually found on large antennas, especially for outdoor use.
  •
  • Our N-Type connectors feature threaded coupling mechanisms and are fully interchangeable with N-Type connectors made to the MIL-C-39012 specification. These connectors are used in all systems with critical RF and mechanical performance.

  N materials composition:

  • Connector Body: Nickel-Plated Brass
  • Center Contact: Beryllium Copper, Gold Plated
  • Crimp Ferrule: Copper, Nickel Plated
  • Insulators: PTFE

  Compatibility with wireless applications:

  • All WiFi standards: 2.4GHz and 5GHz applications: Wi-Fi 6, WiFi 6E, 802.11AX, 802.11AC, 802.11N, 802.11G, 802.11B, 802.11A
  • Cellular Wireless LTE / 4G, GSM / 3G WiMax, 5G: Data and voice applications
  • IoT wireless, automation & Machine to Machine (M2M): Bluetooth, ZigBee, RFID, LoRa, LTE-m, NB-IoT.

  Our RP-SMA to N-type cables' range of frequency band compatibility (from 0GHz to 18GHz), consistently low broadband VSWR, and impedance matching to 50 Ohm gear makes them compatible and compliant for all the above applications.

  RoHS and REACH compliant: Our antenna cables and adapters comply with RoHS 3 and REACH restrictions on heavy metals and other toxins.
