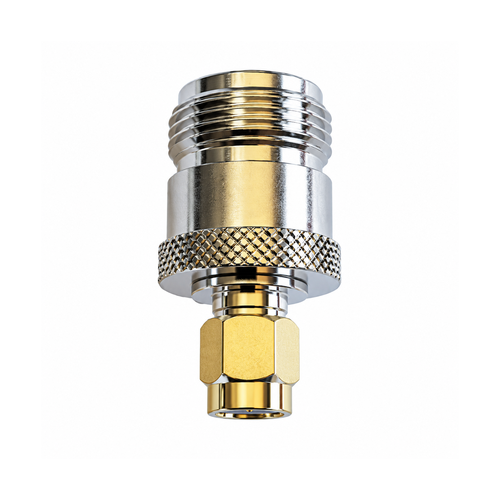

N-female to RP-SMA-male Adapter for Antenna Cables
- In stock
- 0.08 LBS
RP-SMA male to N-Female Adapter
- Nickel-plated brass body for enhanced corrosion resistance: This is the most weather-resistant, corrosion-resistant plating.
- Suitable for outdoor or indoor applications.
- Gold plated center contact for reduced signal loss.
- Allows interconnection of devices with N male and RP-SMA female interfaces: Antennas, antenna cables and wireless devices.
- Use for Coaxial extension, coaxial interface conversion, coax retrofit applications.
- Data Alliance's high-quality soldered terminations of RP-SMA and Type-N connectors with soldering provide a low-loss connection with discontinuities kept to a minimum.
Compatibility with wireless applications:
- All WiFi standards: 2.4GHz and 5GHz applications: 802.11AC, 802.11N, 802.11G, 802.11B, 802.11A
- Cellular Wireless LTE / 4G, GSM / 3G WiMax, 5G: Data and voice applications
- IoT wireless, automation & Machine to Machine (M2M): Bluetooth, ZigBee, RFID, LoRa, LTE-m, NB-IoT.
- Compatible with all Helium miners used in North America, including Bobcat miners, Sensecap miners and all other Helium LongFi miners, as are all of our antenna cables and adapters with RP-SMA-male connectors.
Our RF antenna cable adapter's range of frequency band compatibility (from 0GHz to 18GHz), consistently low broadband VSWR, and impedance matching to 50 Ohm gear, makes them compatible and compliant for all the above applications.
Adapter materials composition:
- Connector Body: Nickel-Plated Brass, which is the most corrosion-resistant of all plated brass alloys (better than gold-plated): Weatherproofing for long-term outdoor exposure.
- Center Contact: Beryllium Copper, Gold Plated for low signal loss
- Crimp Ferrule: Copper, Nickel Plated
- Insulators: PTFE
N-female Connector Characteristics and Details: Durable, weatherproof connection
- N connectors ares nickel-plated brass, which is the best metals composition for rust-proof / corrosion proof / weatherproofing for long-term outdoor exposure.
- Our N connectors provide a consistent performance from 900MHz to 12.5 GHz.
- N-Female diameter is 0.620-inch (1.57 cm). N-male inside diameter is 0.620-inch (1.57 cm)
- N-connector gender is counter-intuitive: Click here for details.
- N-Type connectors are the largest of the RF connector types, and are usually found on large antennas, especially for outdoor use.
- Our N-type adapters feature threaded coupling mechanisms and are fully interchangeable with N-Type connectors made to the MIL-C-39012 specification. These connectors are used in all systems where excellent RF and mechanical performance is critical.
RP-SMA Connector Characteristics and Details
- RP-SMA male and female diameter:
- RP-SMA male inside diameter is 5/16" (7.9375mm) (the inside diameter where the threads are).
- RP-SMA female outside diameter is 5/16" (7.9375mm): Accommodates a hex nut (bulkhead nut) with 5/16" nominal outer diameter
- RP-SMA Gender Determination: Key Points
- RP-SMA gender is counter-intuitive: Please observe picture & note it is correct.
- The gender is referring to the pins inside--not the threads. RP-SMA male has threads on inside.
- RP-SMA male has a socket inside rather than a pin, as you might expect, because the RP stands for "Reverse Polarity." The socket/pin configuration is female when it appears to be male, and vice versa.
- More details regarding RP-SMA gender determination.
- Other RP-SMA Characteristics and Key Points
- RP-SMA = Reverse Polarity SMA. Also known as SMA-RP, SMA-R, SMA RP, SMA R.RP-SMA-male is also called "plug" and SMA female connector is also called "jack"
- We offer an RP-SMA wrench to assist in installing antennas, cables and adapters with RP-SMA or SMA connector(s).
- RP-SMA-male connector fits items that have an SMA-female connector.
- RP-SMA is a round screw-type connector, with medium-sized, threaded coupling connectors that are rated for frequencies from the lowest (DC) up to 18GHz.
- RP-SMA connectors are not compatible with the common, commercially available Type F coaxial connector. Type F connectors look similar but are of slightly different size and will not pair with RP-SMA or SMA connectors without an adapter.
- RP-SMA male to male antenna cables
- Page about RP-SMA cables
- Directory of other RP-SMA cables
- RP-SMA adapters
- RP SMA right angle adapters and cables: Cables w/ RP-SMA connectors w/ right-angle & bulkhead nut & washer for the female connector
- RPSMA extension cables
- N-type Adapters
Over-all, Data-Alliance provides the buyer a well made product at a fair price and this adapter is no exception. Priced fair enough you can get some extra ones for your tool box in case you decide to work on the project you have been kicking around over the winter months.
