MMCX right-angle to N-male Cable: 8-inch, 1FT, 2FT, 6.25FT


In stock
0.10 LBS

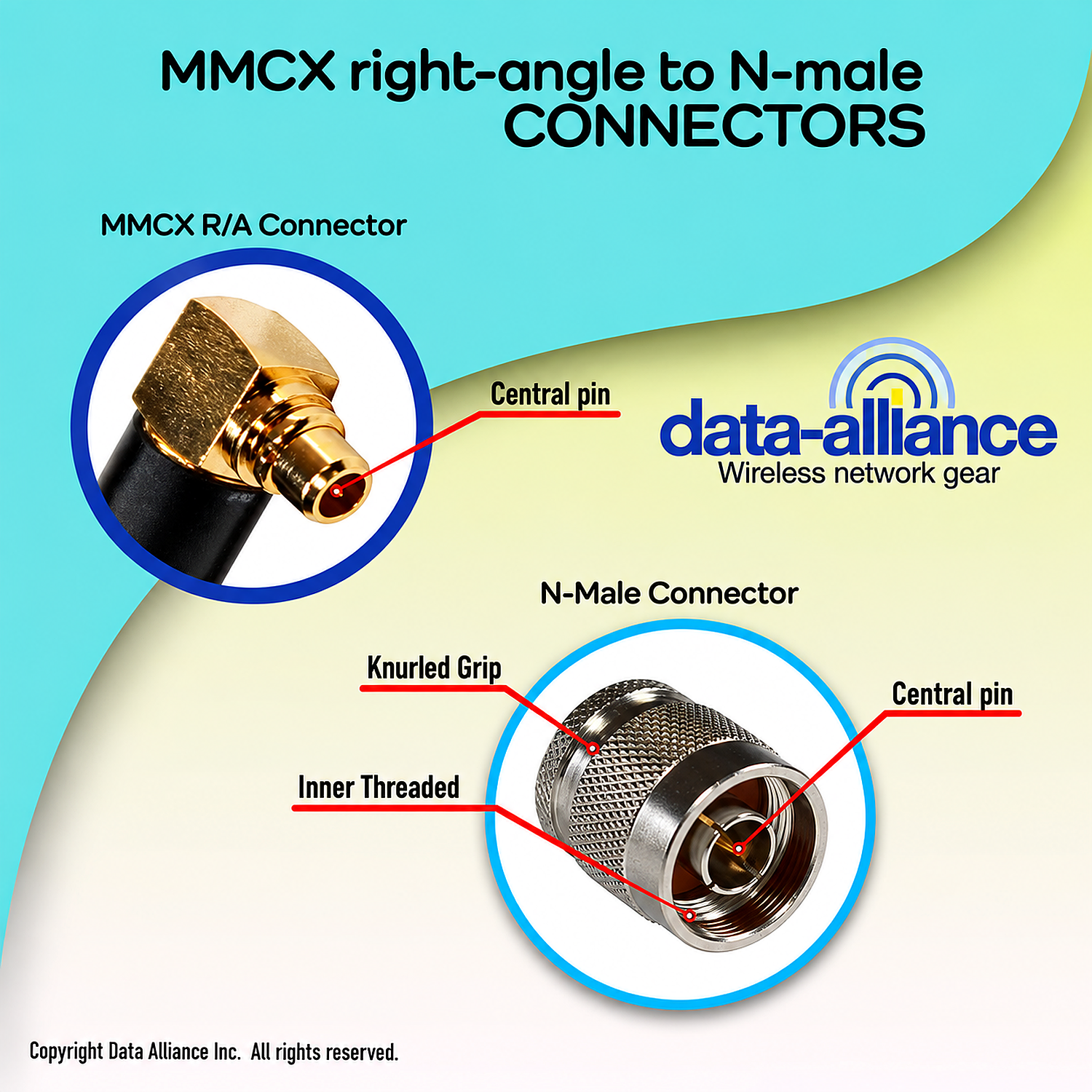

MMCX right-angle to N-male Cable

ANTENNA CABLE: MMCX right-angle connector to N male

  • Connect wireless card or device with MMCX jack to N-connector on antenna.
  • MMCX-male right-angle connector snaps into MMCX jack on wireless card or device
  • One end has MMCX right-angle connector and the other end has a standard N-male connector.
  • For coaxial extension, c oaxial interface conversion, coax retrofit applications
  • See our mounts for antennas and cables with N-female connectors.
  • Data Alliance's high-quality soldered terminations of MMCX and Type-N connectors with soldering provide a low-loss connection with discontinuities kept to a minimum.

Compatiblity with wireless protocols and applications:

Our N-type cables ' range of frequency band compatibility (from DC 0GHz to 18GHz), consistently low broadband VSWR, and impedance matching to 50 Ohm cables, makes them suitable and compliant for all the above applications.

Antenna Cable Coax is double-shielded, low-loss and very flexible. The cable-type is equivalent or better than LMR-100: Coax with black jacket has the same or better signal-loss-per-meter and flexibility as LMR100, and less attenuation (signal loss) than RG174. The higher quality of the cable of this antenna translates into lower loss/better performance. Rated for outdoor use and are also suitable for indoor use.

The temperature range for operational use of this 100-series coax and the cable assembly, is: -22 F ~ +185 F (-30 C ~ +85 C)

MMCX Male Right-Angle Connector:

  • Center Contact: Phosphor Bronze, Gold Plated
  • Connector Body: Brass, Gold Plated
  • Crimp Ferrule: Copper, Nickel Plated
  • Insulators: PTFE
  • Precision machined for low loss.
  • MMCX connector is compatible with (fits) all WiFi / wireless cards with MMCX antenna jack.

N-male Connector Characteristics and Details: Durable, weatherproof connection

  • The N-male connector has an internal rubber O-ring, which provides a water-tight seal.
  • Nickel-plated brass body for enhanced corrosion resistance: Nickel plating is the most weather-resistant, corrosion-resistant metal plating.
  • Our N connectors provide a consistent performance from 900MHz to 12.5 GHz.
  • N-Female diameter is 0.620-inch (1.57 cm). N-male inside diameter is 0.620-inch (1.57 cm)
  • N-connector gender is counter-intuitive.
  • N-Type connectors are the largest of the RF connector types, and are usually found on large antennas, especially for outdoor use.
  • Our N-Type connectors feature threaded coupling mechanisms and are fully interchangeable with N-Type connectors made to the MIL-C-39012 specification. These connectors are used in all systems where excellent RF and mechanical performance is critical.

N materials composition:

  • Connector Body: Nickel-Plated Brass: The most corrosion-resistant of all plated brass alloys (better than gold-plated).
  • Center Contact: Beryllium Copper, Gold Plated
  • Crimp Ferrule: Copper, Nickel Plated
  • Insulators: PTFE

RoHS 3 and REACH compliant: All of our antenna cables and adapters, and almost all of our antennas, are compliant with RoHS 3 and REACH restrictions on heavy metals and other toxins.
