RP-SMA female To RP-TNC female Adapter for Antenna Cable

$3.29
SKU:
RSfRTf
Brand:

Availability:
In stock
Weight:
0.07 LBS

RP-SMA female To RP-TNC female Adapter

ADAPTER: RP-SMA FEMALE To RP-TNC FEMALE

This antenna cable adapter's range of frequency band compatibility (from DC 0GHz to 18GHz), consistently low broadband VSWR, and impedance matching to 50 Ohm antennas and cables, makes them suitable and compliant for all the following applications:

Adapter materials composition:

  • Connector Body: Nickel-Plated Brass, which is the most corrosion-resistant of all plated brass alloys (better than gold-plated).
  • Center Contact: Beryllium Copper, Gold Plated
  • Crimp Ferrule: Copper, Nickel Plated
  • Insulators: PTFE

RoHS and REACH compliant: All of our antenna cables and RF adapters are from of heavy metals and compliant with RoHS and REACH.

RP-TNC is a round screw-type connector. RP-TNC is similar to BNC except that where as BNC has a slotted mating collar, TNC has a screw-down type connector. RP-TNC's screw-down connector performs better than BNC in the microwave spectrum.

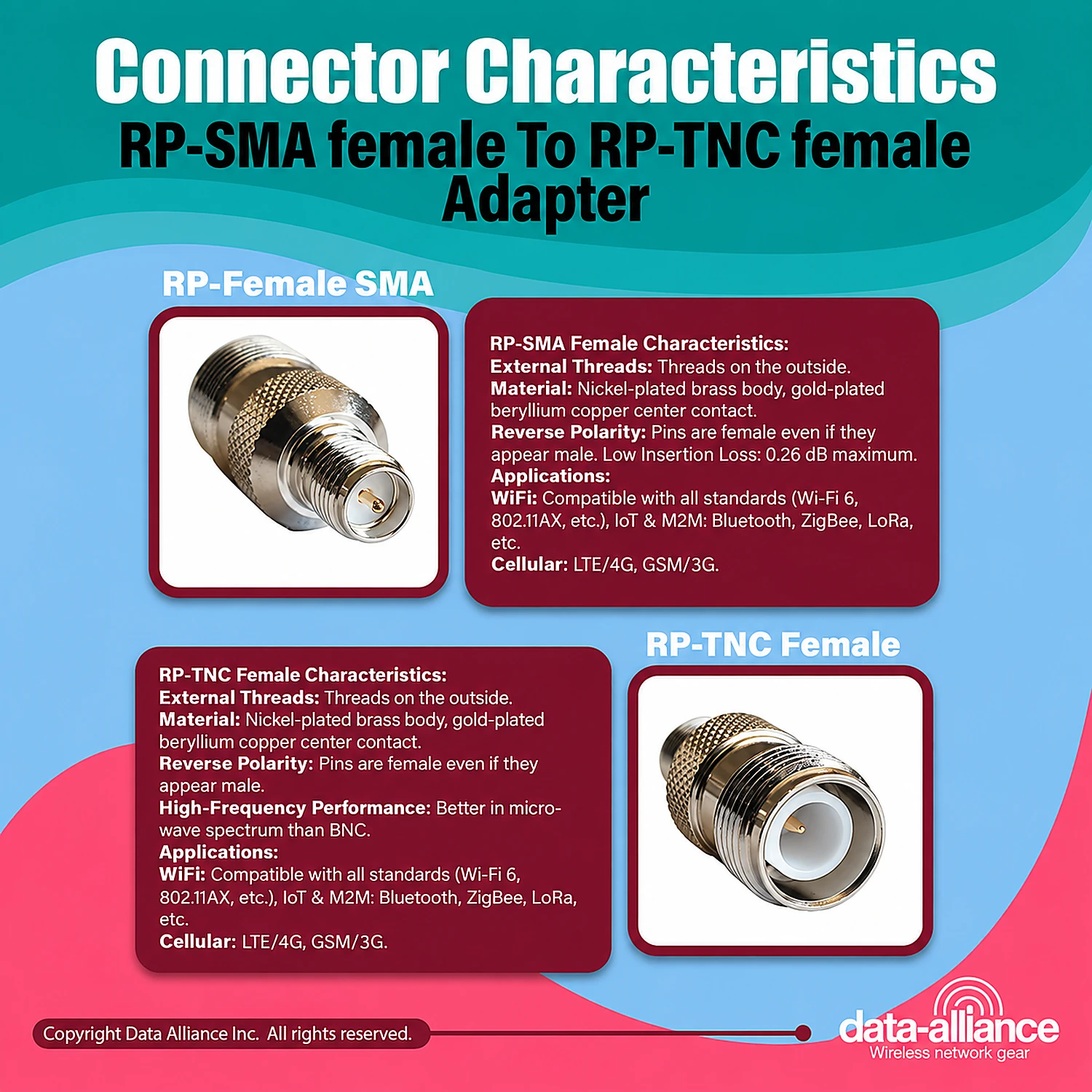

RP-SMA female connectors: Characteristics

  • RP-SMA female Diameter:
    • RP-SMA female outside diameter is 5/16": Accommodates a hex nut (bulkhead nut) with 5/16" nominal outer diameter
    • RP-SMA male inside diameter is 5/16" (the inside diameter where the threads are). In other words, the inside diameter of the hex bolt is 5/16"
    • RP-SMA-female requires a 6.5mm hole
  • RP-SMA is a round screw-type connector, with medium-sized, threaded coupling connectors that are rated for frequencies from the lowest (DC) up to 18GHz.
  • RP-SMA female connector is also referred to as a "jack". It has a socket.
  • RP-SMA gender is counter-intuitive: Please observe picture & note it is correct.
  • We offer an SMA wrench to assist in installing antennas, cables and adapters with SMA or RP-SMA connector(s).

GENDER DETERMINATION: GENDER of RP-SMA and RP-TNC IS COUNTER-INTUITIVE in two ways:

  • The gender is referring to the coaxial-cable pins on the inside-not to the threads.
    • RP-SMA female has threads on outside.
    • RP-TNC female has threads on outside.
  • "RP" stands for reverse polarization: The pins are female when they appear to be male, and vice versa.

COMPATIBILITY

Connectors fit items that have a (male) RP-SMA (Reverse Polarity SMA) jack/connector. RP = Reverse Polarity and a (male) RP-TNC (Reverse Polarity [RP] TNC) jack/connector.

RELATED PRODUCT CATEGORIES

Insertion loss: 0.26 dB maximum

All of our antenna cables and adapters pass QC test before we ship them.
