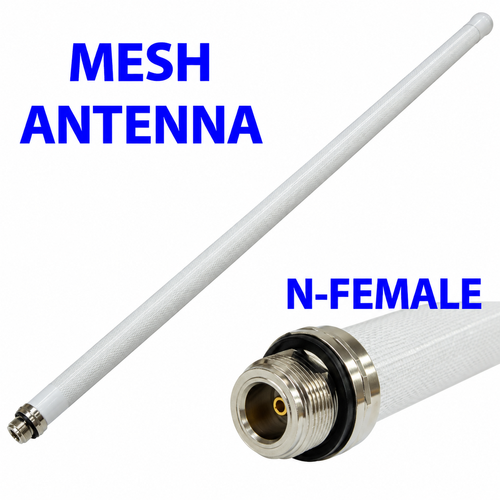

Antenna 2.4GHz 9dBi Omni-Mesh Outdoor w/ N-f. Marine Proof. Mount option
- SKU:
- AOA2409TF
- Availability:
- In stock
- Weight:
- 1.00 LBS
- MPN:
- AOA-2409TFLC
Alfa Network
Omni-Mesh Outdoor Antenna
Omni directional dipole antenna: Radiates signal with a beam of 360 degrees; also receives signal from 360 degrees around it.
Compatibility with wireless standards & applications : This omni directional antenna's range of frequency band compatibility in the 2.4 ~ 2.5GHz frequency band range, its very low broadband VSWR at < 2.0 (lower VSWR is better), and impedance matching to 50 Ohm gear , makes it suitable and compliant for all the following applications:
- IoT wireless & M2M : Bluetooth , ZigBee , and ISM . Since it is vertically polarized , it is compatible with many machine to machine communication applications, remote monitoring, and telemetry applications.
- 2.4GHz WiFi applications: 802.11N, 802.11G, 802.11B
- Compatible with Bluetooth devices, Wireless Access Points & other wireless devices.
- As Bluetooth antenna: Send or receive signal to devices in all directions (360-degree horizontal beamwidth )
- As client antenna: Connect to access points in any direction. Portable size: Easily fits in a laptop case.
Features & applications
- As access point antenna: Provides signal to clients in any direction (360-degree horizontal beamwidth )
- As client antenna: Connect to an access point in any direction
- Capable of extending your wireless range up to 300 meters.
Features:
- Low V.S.W.R / Low Loss Design
- High Efficiency and Sensitivity
- Low Loss RF Coaxial Connector Cable Feed
- Matching Free Design
- Does not include mounting hardware unless you choose the TFL mount option, above.
- We have various other suitable mount options (for antennas with N-female connector).
- See also our complete mounts & brackets options.
- Suitable for boat / marine environment
Model | AOA-2409TF |
Frequency | 2.4GHz ~ 2.5GHz |
V.S.W.R | <= 2.0 |
Gain | 9dBi |
Radiation | Omni |
Impedance | 50 Ohm |
Connector | N-female |
Material | Fiber Glass |
Length | 460mm |
ROHS 3 & REACH compliant: Antenna, cable and connector are all compliant with ROHS 3 and REACH.
N-type Connector Characteristics and Details: Durable, weatherproof connection
- Nickel-plated brass body for enhanced corrosion resistance: Nickel plating is the most weather-resistant, corrosion-resistant metal plating.
- Our N connectors provide a consistent performance from 900MHz to 12.5 GHz.
- N-Female diameter is 0.620-inch (1.57 cm) . N-male inside diameter is 0.620-inch (1.57 cm)
- N-connector gender is counter-intuitive .
- N-Type connectors are the largest of the RF connector types , and are usually found on large antennas, especially for outdoor use.
- Our N-Type connectors feature threaded coupling mechanisms and are fully interchangeable with N-Type connectors made to the MIL-C-39012 specification. These connectors are used in all systems where excellent RF and mechanical performance is critical.
- N materials composition :
- Connector Body: Nickel-Plated Brass : The most corrosion-resistant of all plated brass alloys (better than gold-plated).
- Center Contact: Beryllium Copper, Gold Plated
- Crimp Ferrule: Copper, Nickel Plated
- Insulators: PTFE
RELATED PRODUCT & PAGES:
- Antenna Mounts & Brackets
- Antennas: How to choose
- Directional Antennas
- Omni-Directional Antennas
- Wireless Frequencies: 2.4GHz, 5GHz, 900MHz, WiMax
All of our antennas pass QC test before we ship them.
