SUMMARY SECTION:

Compatible with Wireless Access Points that have RP-TNC antenna jacks:

See list of compatible access points, bridges, etc.

Magnetic Mount antenna sticks to metal surface. (Click here to see antennas for desktop, wall-mount [indoor-outdoor], & connector options)

Comes with 1.5 meter (5 feet) cable ("pigtail") with RP-TNC male connector.

f you need additional cable length: Extension cables available in our e-store adds another 3 meters

Lightweight and portable!

Brand new, high quality connector from ISO 9001 facilities.

Compliant with 802.11b, 802.11g, 802.11a (worldwide wireless networking standards)

Optional accessory: Gender changer to RP-TNC female

COMPATIBILITY - List of Compatible Products

The antenna cable has an RP-TNC connector (male: threads are on inside).

Connector fits all of the following Wireless Access Points that have a RP-TNC connector

(Reverse Polarity [RP] TNC): Gender of RP-TNC is counter-intuitive: Click for details.

In alphabetical order by brand:

Brand	SKU	Name / Description
Cisco / Aironet	AIR-PCI35x	Cisco Aironet 350 Client Adapter
Cisco / Aironet		Cisco Aironet 350 Wireless Bridge
Cisco / Aironet	AIR-WGB352R	Cisco Aironet 350 Workgroup Bridge
Cisco / Aironet		Cisco Aironet Access Point 1200
Cisco / Aironet	AIR-AP352E2R-x-K9	Cisco Aironet Access Point 350
EnGenius (aka Senao)	EL-2511 BG1 PLUS	EnGenius 2-Port Wireless Bridge/AP + Print Server (200mW)
Hyperlink	SR2400	Router
LinkSys	BEFW11S4	Wireless Access Point Router w/ 4-Port Switch
LinkSys	WAP11	Wireless Network Access Point
LinkSys	WAP54G	Wireless-G Access Point
LinkSys	WRT54G	Wireless-G Broadband Router
Proxim		Proxim Harmony 802.11 AP
Proxim Harmony	Stratum MP	Proxim Harmony Stratum MP
SMC		AP/Bridge
SonicWall	01-SSC-5361	SonicWALL SOHO TZW Wireless Internet Security Appliance
U.S. Robotics		AP/Bridge
Wi-LAN	AWE120-24	Wi-LAN AWE120-24
Wi-LAN	AWE22/45	Wi-LAN AWE22/45
Wi-LAN	AWE22/45	Wi-LAN AWE22/45

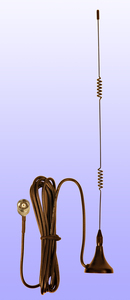

Magnetic Mount Omni Mobile Antenna: 7 db 2.4GHZ

Put the antenna outside and on top of the vehicle where it can pick up more access points.

Comes with 1.5 meter (5 ft) pigtail with RP-TNC (male) connector. Cable is LMR100A, which is low-loss cable

of much higher quality than the typical pigtail cables for antennas of this size (typically RG174).

The cable color is black. The higher quality of the cable of this antenna translates into lower loss/better performance.

(If you need additional cable length: Extension cable available in our e-store adds another 3 meters)

Lightweight and PORTABLE! Perfect for Wardriving

Brand new, high quality Orinoco connector from ISO 9001 facilities.

802.11b compliant (North America and Europe)

Specifications:

• Frequency: 2400¡«2483 MHz

• Gain: 7.0 dbi

• Impedance: 50 Ohm

• VSWR: <1.5 Average

• Maximum Input Power: 50 Watts

• Antenna Length: 10 1/2 inch (26 1/2 centimeters)

• Range increase: For details of range-related matters: The range-extender antenna guide page of our e-store provides more detail of range-extension from this antenna for various applications. Searchable knowledge base.

• Cable Length: 1.5 meters (5 feet). Some "gain" (signal strength) is lost with length of cable (1.27dBi is lost per meter of cable). Therefore the best choice of cable length is the shortest length that meets your needs. (If you need additional cable length: Extension cable available in our e-store adds another 3 meters)

• Cable type: The cable is a very high quality low-loss cable (LMR100A), which is far superior in quality than the more commonly used cables (RG174).

• Polarization: Vertical

• Weight: 1 ounce
