Antenna 2.4GHz 8.5dBi OmniDirectional WiFi; Mounts pole, wall. N-Female | Waterproof.
- SKU:
- A9N
- Availability:
- In stock
- Weight:
- 1.10 LBS
Data Alliance
Antenna Omni Directional WiFi
Outdoor 8.5dBi Omni-Directional fiberglass antenna w/ N-female connector
- Radiates signal with a beam of 360 degrees; also receives signal from 360 degrees around it.
- Marine antenna: This antenna can be used for marine use, but in a salt-water environment, the antenna often will begin to corrode after a year or possibly less: The chrome plating on the base bubbles and peels off: Our customers that us this antenna for marine use, find that the low cost and fact that it lasts about a year without any issue, in a marine environment, makes it suitable: The antenna is cost-effective enough even considering that they replace the antenna when the corrosion begins.
- Nickel-plated brass body for enhanced corrosion resistance: Nickel plating is the most weather-resistant, corrosion-resistant metal plating.
- Mounting hardware included: Mounting kit with aluminum tube and U-bolts set is included with this antenna. See details / specifications of the mounting kit. The mount kit is especially suitable for pole mounting
- Mount Option: Compatible magnetic mount with N-female connector and cable to RP-SMA-male
Compatibility with wireless standards & applications: This omni directional antenna's range of frequency band compatibility in the 2.4 ~ 2.5GHz frequency band range, its its excellent low broadband VSWR at < 1.5, and impedance matching to 50 Ohm gear, makes it suitable and compliant for all the following applications:
- 2.4GHz WiFi applications: 802.11N, 802.11G, 802.11B, 802.11A
- IoT wireless & M2M: Bluetooth and ZigBee. Since it is vertically polarized, it is compatible with many machine to machine communication applications, remote monitoring, and telemetry applications.
Mount Options: See our mount options for antennas with an N-connector (Type-N connector)
FEATURES
- As access point antenna: Provides signal to clients in any direction (360-degree horizontal beamwidth)
- As client antenna: Connect to an access point in any direction
- Designed for wireless 802.11n, 802.11g, 802.11b devices: WiFi / Wireless networking
- Capable of extending your wireless range of up to 650 m (2,132ft).
- Mount is included for wall or pole mounting.
- Frequency range: 2.4G - 2.5 GHz
- Fiberglass antenna
- Lead-free and ROHS compliant: The entire product is ROHS compliant (connector and antenna).
TECHNICAL SPECIFICATIONS | |
Frequency range | 2400 ~ 2500MHZ |
Gain (dBi) | 8.5dBi |
VSWR | <1.6 |
Impedance | 50 Ohm |
Polarization | Linear Vertical |
HPBW / horizontal | 360 degrees |
HPBW / vertical | 25 degrees |
Max Power handling | 50W |
Antenna Connector | N-female |
Survival wind speed | 180Km/hr |
Temperature | -40C ~+ 80C |
Humidity | 100% @25c |
Lightning Protection | Direct Ground |
Radome color | Gray-white |
Radome material | Fiberglass |
Weight+Packing Weight | 540g (19oz) |
Dimensions | Length 600mm (24.5 inches) x W34mm x H34mm |
ROHS 3 & REACH compliant: Antenna, cable and connector are all compliant with ROHS 3 and REACH.

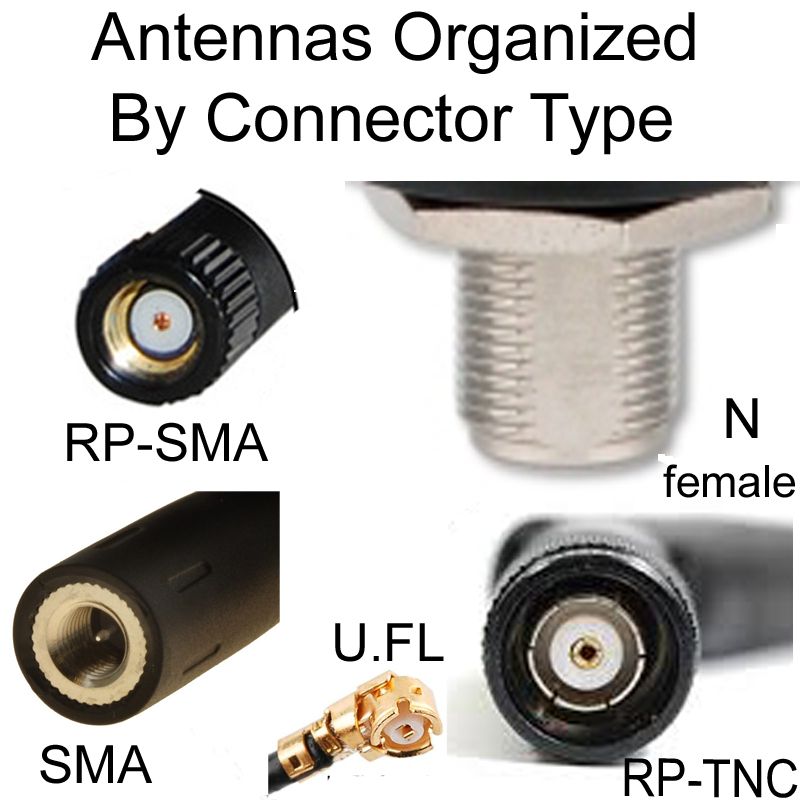

N-type Connector Characteristics and Details: Durable, weatherproof connection
- Nickel-plated brass body for enhanced corrosion resistance: Nickel plating is the most weather-resistant, corrosion-resistant metal plating.
- Our N connectors provide a consistent performance from 900MHz to 12.5 GHz.
- N-Female diameter is 0.620-inch (1.57 cm) . N-male inside diameter is 0.620-inch (1.57 cm)
- N-connector gender is counter-intuitive .
- N-Type connectors are the largest of the RF connector types , and are usually found on large antennas, especially for outdoor use.
- Our N-Type connectors feature threaded coupling mechanisms and are fully interchangeable with N-Type connectors made to the MIL-C-39012 specification. These connectors are used in all systems where excellent RF and mechanical performance is critical.
- N materials composition :
- Connector Body: Nickel-Plated Brass : The most corrosion-resistant of all plated brass alloys (better than gold-plated).
- Center Contact: Beryllium Copper, Gold Plated
- Crimp Ferrule: Copper, Nickel Plated
- Insulators: PTFE
N-female connector fits items that have an N-male connector.
GENDER DETERMINATION: Gender of N is counter-intuitive: The gender is refers to the pins inside, not the threads. N-female has threads on outside. Click here for more details regarding N-connector gender determination.
