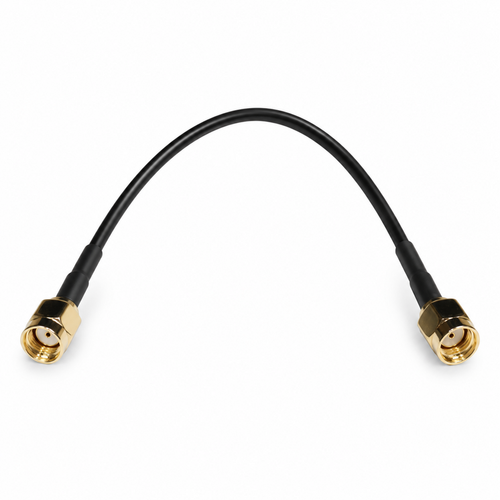

SMA male To RP-SMA male Cable: 6-inch, 8-in, 12-in, 15-in, 16-in, 19-inch, 2-FT, 26-inch

$3.75
SKU:
RSm6iSm
Brand:

Weight:
0.05 LBS

Antenna Cable / Adapter Cable: RP-SMA Male to SMA Male (for antenna): Low-loss cable.

  • See also other length options.
  • One end has an SMA (male) connector and the other end has an RP-SMA (male) connector.
  • The length refers to the length of the cable between the connectors (not including the connectors).
  • Data Alliance's high-quality soldered terminations of SMA and RP-SMA connectors with soldering provide a low-loss connection with discontinuities kept to a minimum.

Antenna Cable Coax is double-shielded, low-loss and very flexible. The cable-type is equivalent or better than LMR-100: Coax with black jacket has the same or better signal-loss-per-meter and flexibility as LMR100, and less attenuation (signal loss) than RG174. The higher quality of the cable of this antenna translates into lower loss/better performance. These antenna cables are rated for outdoor use and are also suitable for indoor use. Recommended tightest bend radius is 1 inch (28mm).

Compatibility with wireless applications: Our SMA to RP-SMA extension cables' range of frequency band compatibility (from 0 to 18GHz), consistently low broadband VSWR, and impedance matching to 50 Ohm antennas and cables, makes them suitable and compliant for all the above applications.

RP-SMA & SMA male diameter:
  • SMA & RP-SMA male inside diameter is 5/16" (7.9375mm) (the inside diameter where the threads are).
  • SMA female and RP-SMA female outside diameter is 5/16" (7.9375mm): Accommodates a hex nut (bulkhead nut) with 5/16" nominal outer diameter.
    • SMA & RP-SMA Gender Determination: Key Points
      • The gender is referring to the pins inside-not the threads. SMA male has threads on inside.
      • RP-SMA (reverse polarity) means that the pin and socket configuration is the opposite of what you would expect: RP-SMA female has a pin inside, and RP-SMA male has a socket inside.
    • Other SMA & RP-SMA Characteristics and Key Points
      • SMA female connector is also called "jack" and SMA-male is also called "plug."  The same holds for RP-SMA female and male.
      • We offer an SMA wrench to assist in installing antennas, cables and adapters with SMA or RP-SMA connector(s).
      • SMA-female connector fits items that have an SMA-male connector.
      • SMA and RP-SMA are round screw-type connectors, with medium-sized, threaded coupling connectors that are rated for frequencies from the lowest (DC) up to 18GHz.

RP-SMA and SMA Connector Composition: Our SMA and RP-SMA connectors are precision machined and gold-plated for low loss.

  • Connector Body: Gold Plated Brass
  • Center Contact: Beryllium Copper, Gold Plated
  • Crimp Ferrule: Copper, Nickel Plated
  • Insulators: PTFE
  • Precision machined for low loss in ISO 9001 facilities

RoHS 3 and REACH compliant: All of our antenna cables and RF adapters are compliant with RoHS 3 and REACH restrictions on content of lead and other heavy metals and toxins.
