SMA-male To RP-SMA-female Adapter: For Antenna Cable

SMA (male) to RP-SMA (female) antenna cables for wireless / WiFi networks and other RF applications

• This adapter has an SMA male connector on one end, and has a female RP-SMA connector on the other end.
• Both ends of this adapter have pins (neither end has a socket).

This antenna cable adapter's range of frequency band compatibility (from 0 to 18GHz) and 50 Ohms impedance matching, makes them suitable and compliant for all the following applications:

• All WiFi standards: 2.4GHz and 5GHz applications: 802.11AC, 802.11N, 802.11G, 802.11B, 802.11A
• Cellular Wireless LTE / 4G, GSM / 3G WiMax: Data and voice applications
• IoT wireless & M2M: Bluetooth, ZigBee, RFID, LoRa, LTE-m, NB-IoT.
• Compatible with all Helium miners used in Europe, including Bobcat miners, Sensecap miners and all other Helium LongFi miners, as are all of ourantenna cables and adapters with SMA-male connectors .

RP-SMA and SMA are both round screw-type connectors , with medium-sized, threaded coupling connectors that are rated for frequencies from the lowest (DC) up to 18GHz.

RP-SMA female diameter:

• Hex nut accommodates a screw/bolt with 5/16" nominal outer diameter
• In other words, the inside diameter of the hex bolt is 5/16"
• SMA-female requires a 6.5mm hole

Adapter materials composition:

• Connector Body: Nickel-plated brass body for enhanced corrosion resistance: Nickel plating is the most weather-resistant, corrosion-resistant metal plating.
• Center Contact: Beryllium Copper, Gold Plated
• Crimp Ferrule: Copper, Nickel Plated
• Insulators: PTFE

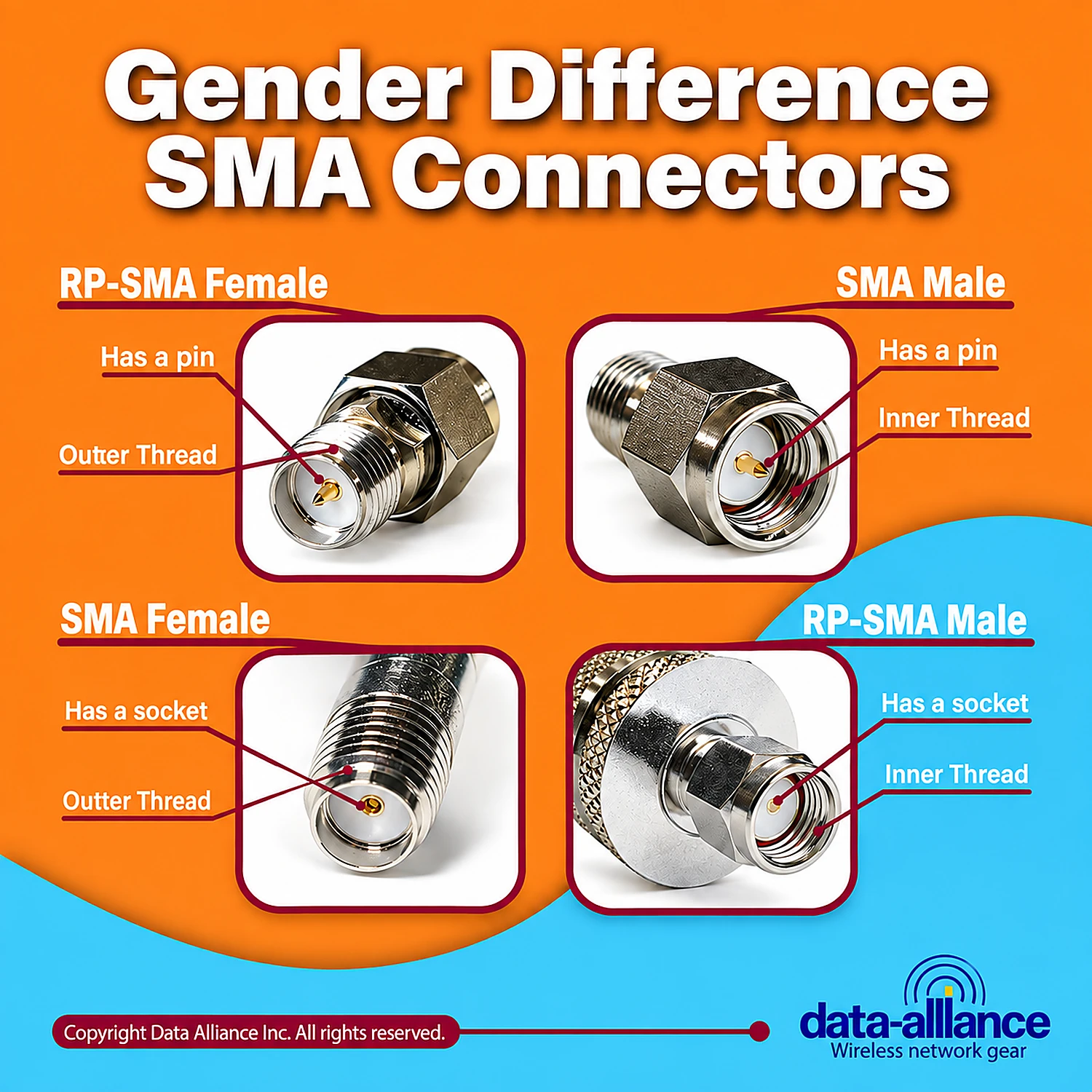

COMPATIBILITY AND GENDER DETERMINATION

• RP-SMA connector fits items that have a (female) RP-SMA (Reverse Polarity SMA) jack/connector.
• SMA connector fits items that have a (female) SMA jack/connector. Gender of SMA refers to the pins inside-not the threads: SMA male has threads on inside.

GENDER DETERMINATION: Gender of RP-SMA is counter-intuitive in two ways:

1. The gender is referring to the pins inside-not the threads. RP-SMA male and SMA male have threads on inside.
2. "RP" stands for reverse polarization: The pins are female when they appear to be male, and vice versa.

RELATED PRODUCT CATEGORIES:

• RP-SMA adapters
• RP SMA right angle adapters and cables
• RP-SMA extension cables
• RP-SMA male to male antenna cables
• SMA Adapters
• SMA Extension Cables Male-Female
• SMA Cables, Antennas and Connectors

Insertion loss: 0.26 dB maximum

All of our antenna cables and adapters pass QC test before we ship them.
