RP-SMA T Splitter Y Adapter Joiner: Join 2 antenna cables to one connector

$2.74
SKU:
RSmTRSf
Brand:

Weight:
0.07 LBS

Join two antenna cables to one RP-SMA connection.

This RP-SMA T-connector has a male connector on a single-connection end, and has two female RP-SMA connectors: Enables connection of two antenna cables with RP-SMA (male) connectors. Expand your coverage or reception area by having two antennas instead of one.

This is not intented for TV / television antennas.

RP-SMA = Reverse Polarity SMA. RP-SMA is a round screw-type connector, with medium-sized, threaded coupling connectors that are rated for frequencies from the lowest (DC) up to 18GHz.

This antenna cable adapter's range of frequency band compatibility (from 0 to 18GHz) and 50 Ohms impedance matching, makes them suitable and compliant for all the following applications:

RP-SMA female connector is also called "jack" and RP-SMA-male is also called "plug."

RP-SMA female diameter:

  • RP-SMA female outside diameter is 5/16" (7.9375mm): Accommodates a hex nut (bulkhead nut) with 5/16" nominal outer diameter
  • RP-SMA male inside diameter is 5/16" (7.9375mm) (the inside diameter where the threads are).

RP-SMA Connector Composition: Our RP-SMA connectors are precision machined and gold-plated for low loss.

  • Center Contact: Beryllium Copper, Gold Plated
  • Connector Body: Brass, Gold Plated
  • Insulators: PTFE

Connector fits items that have RP-SMA (Reverse Polarity [RP] SMA) jack/connectors. RP-SMA = Reverse Polarity SMA

Data Alliance's high-quality soldered terminations of RP-SMA connectors with soldering provide a low-loss connection with discontinuities kept to a minimum.

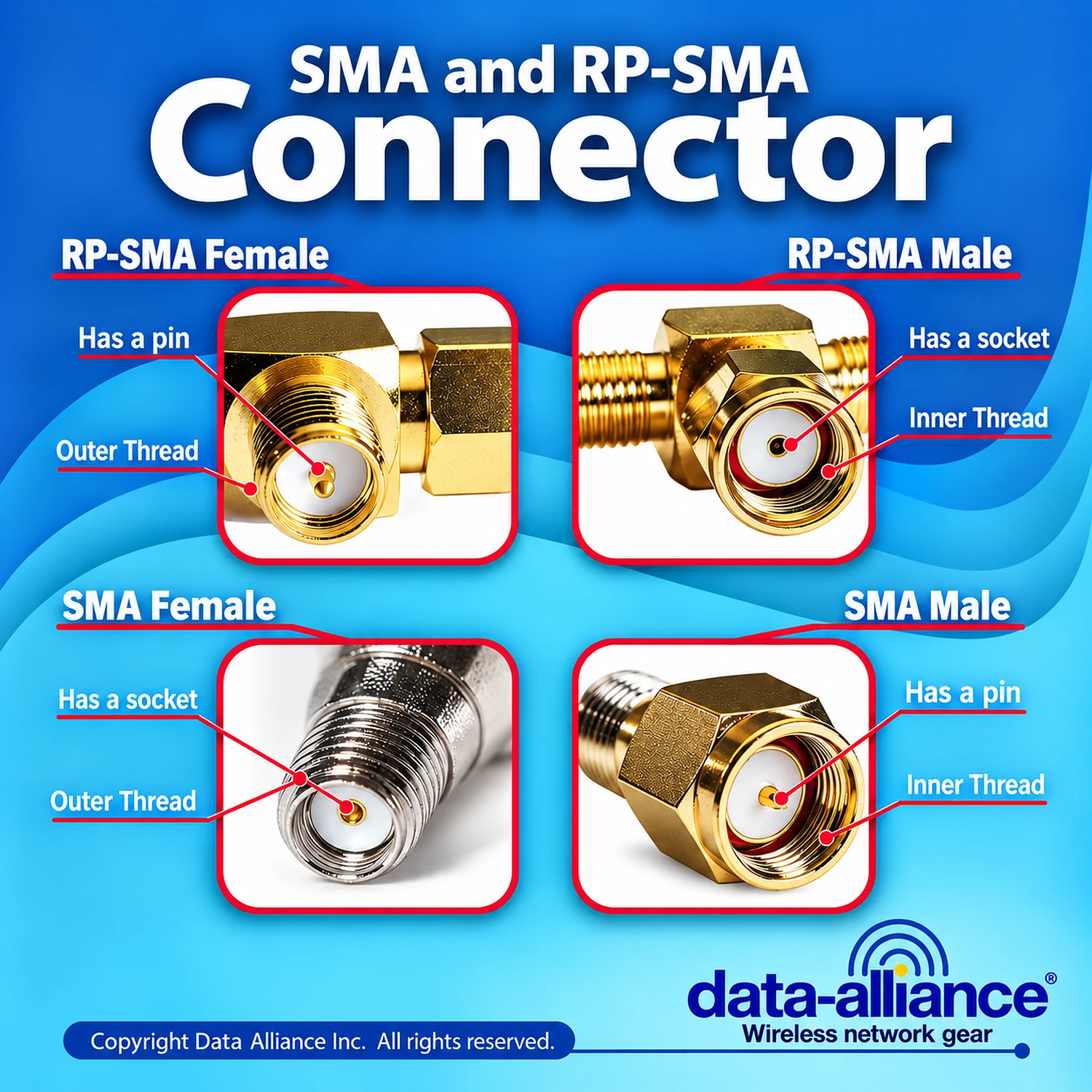

GENDER DETERMINATION: Gender of RP-SMA is counter-intuitive in two ways: Please observe picture & note it is correct.

  1. The gender is referring to the pins inside-not the threads. RP-SMA male has threads on inside.
  2. "RP" stands for reverse polarization: The pins are female when they appear to be male, and vice versa.

Read more details regarding RP-SMA gender determination.

Lead-free and ROHS compliant: The entire product is ROHS compliant (connectors and cable).

Data Alliance's high-quality soldered terminations of RP-SMA connectors with soldering provide a low-loss connection with discontinuities kept to a minimum.
