MHF4 to N-Type Cables: 6-inch, 14-in. N-male and N-female options

$6.59
SKU:
MHF4Nm6i
Brand:

Availability:
In stock
Weight:
0.06 LBS
Antenna cable with MHF4 micro-connector (female) to N-male or N-female connector

N-Type (Male and Female) to MHF4 Cables

MHF4  female to N-male or N-female antenna cable.

  • The length refers to the length of the cable between the connectors (not including the connectors)
  • Connectors are right-angle type (as in the photo), which is the most standard/typical form for MHF4 and U.FL connectors.
  • Data Alliance's high-quality soldered terminations of Type-N connectors with provide a low-loss connection with discontinuities kept to a minimum.

Cable type is 1.13mm Mini-coaxial cable: This is a very thin and flexible cable, with a black jacket. When connecting MHF4 connector to a jack on a miniPCI card or board, often the tight space requires the use of 1.13mm cable, because it is very thin and flexible. The very thin cable is typically needed in tight spaces inside of enclosures, so that the MHF4 connector will snap down on the jack without popping off (more about this). Unfortunately we cannot make this antenna cable with a thicker, double-shielded low-loss cable, because the MHF4 connector is so small.

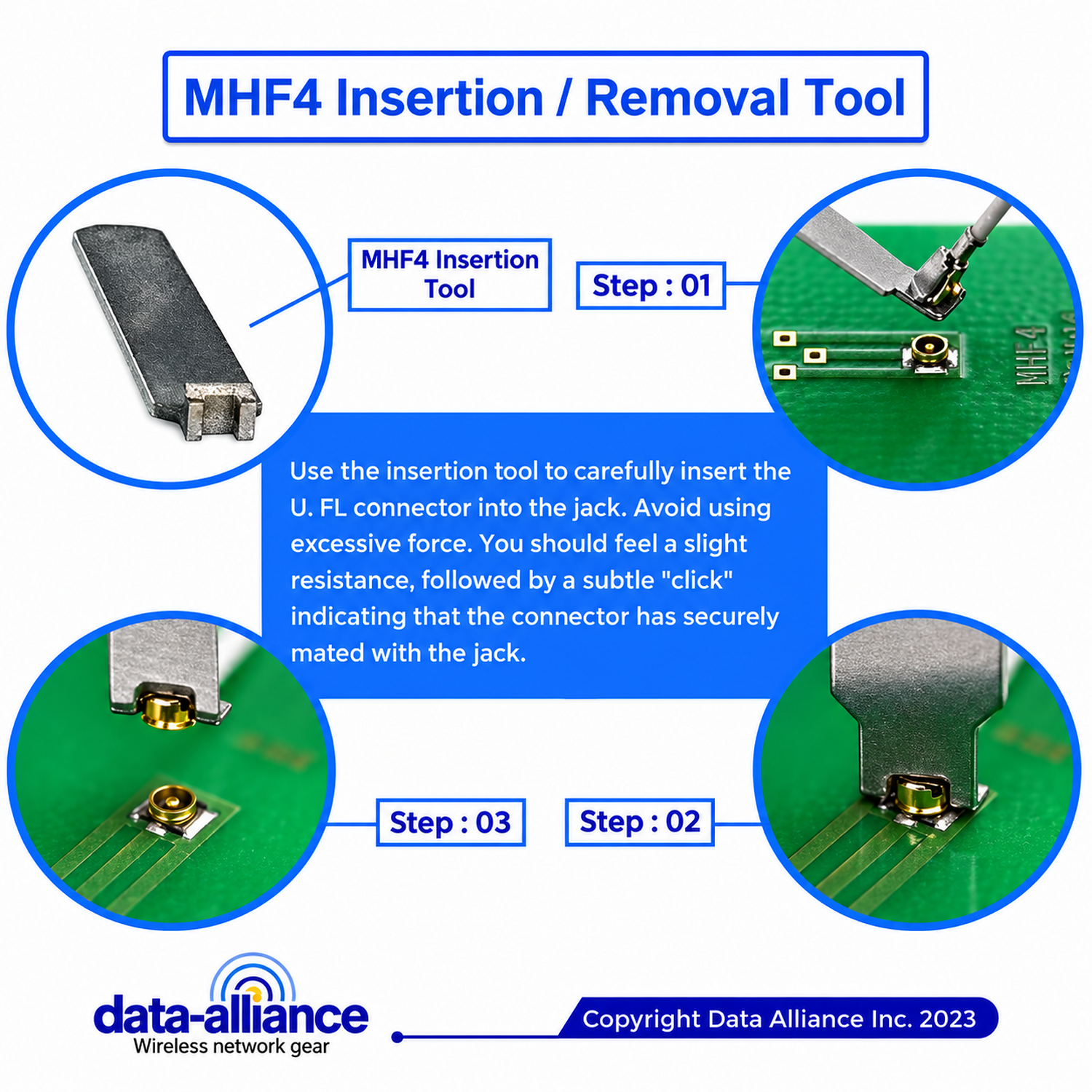

MHF4 connector mating to jack: Insertion and removal

MHF4 miniature RF coaxial connector is the smallest mini RF connector in the world. Only 1.2mm low profile, MHF4 IPEX/IPX connector provides good working performance in various application of Wireless LAN.

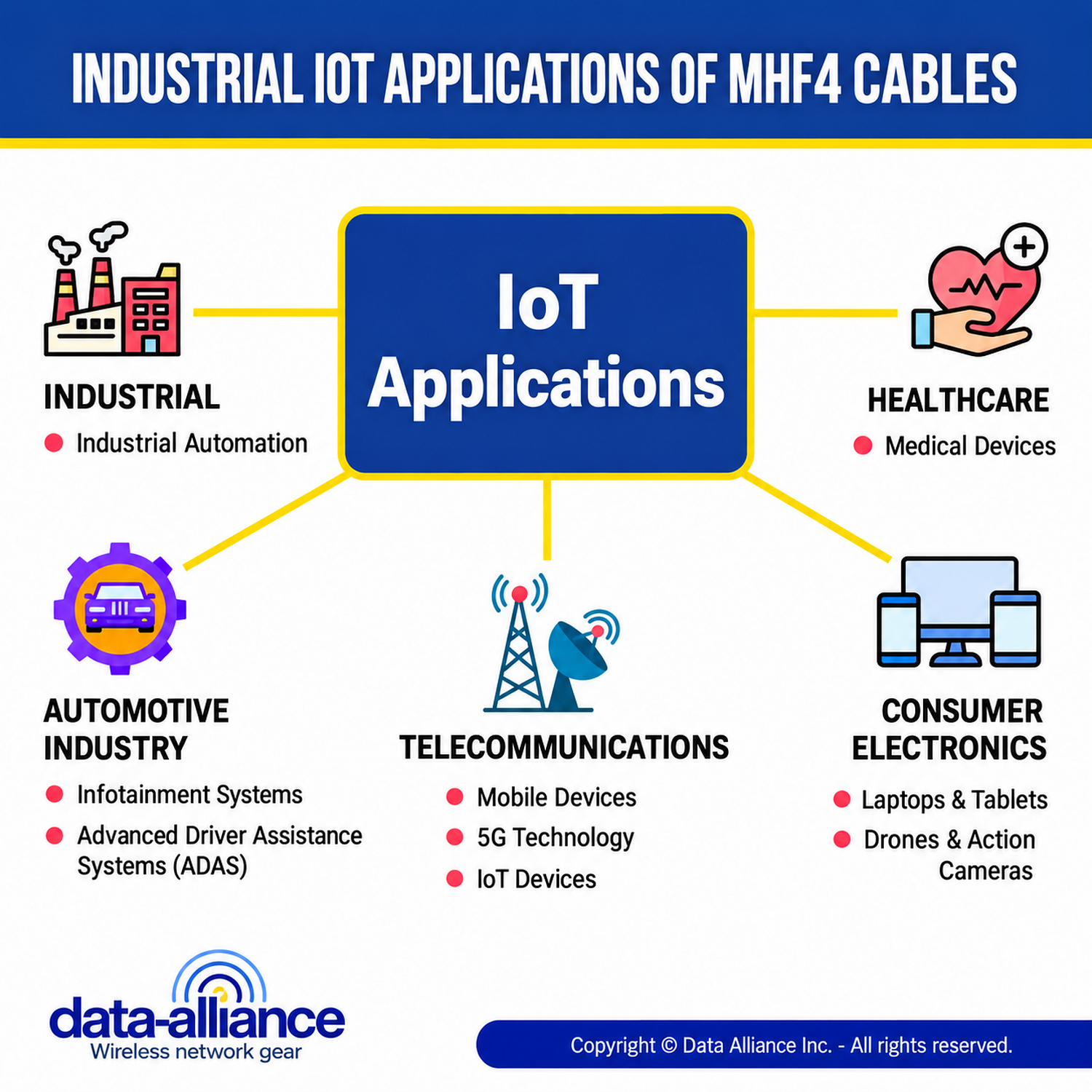

MHF4-cables-industrial-IoT-applications

  • 1.2mm Mated Height
  • Fully Compatible with Murata HSC series, and I-PEX (IPEX, IPX) MHF4, 100% Equivalent
  • SMT type coaxial receptacle and Mating plug cable connector
  • Small form factor and low profile 1.2mm Max. Mating Height
  • Applicable cable: 0.81mm RF coaxial cable
  • High productivity: Easy cable termination by “i-Fit” without soldering
  • Application Technology: IEEE802.11 a/b/g/n, WiMax, Zigbee, Bluetooth Wireless
  • Fulfills the rigorous requirements of high frequency data transmission in digital world. Constructed with advanced mechanical-components and supreme-grade Teflon coax cable, Delivers high electrical performance of typical 1.3 max V.S.W.R. at 6.0 GHz, while providing for a sturdy interconnection engagement in a slim form factor of 2.0mm x 2.0mm footprint by 1.2mm mated height.
  • Space Economy: 2.0mm x 2.0mm PCB footprint, mated height of 1.2 mm
  • Teflon Cables: Silver plated center conductor, Teflon dielectric and jacket
  • PCB socket: Integral molded construction ensures product reliability.
  • Sturdy connection: Lead-in and interlock features among mating pair ensure solid coupling.
  • Accessory: Insertion/Extraction tool, test adapters for connection to MCH cable head and PCB connector.

The N to MHF4 series cable is impedance matched to 50 ohm cables.

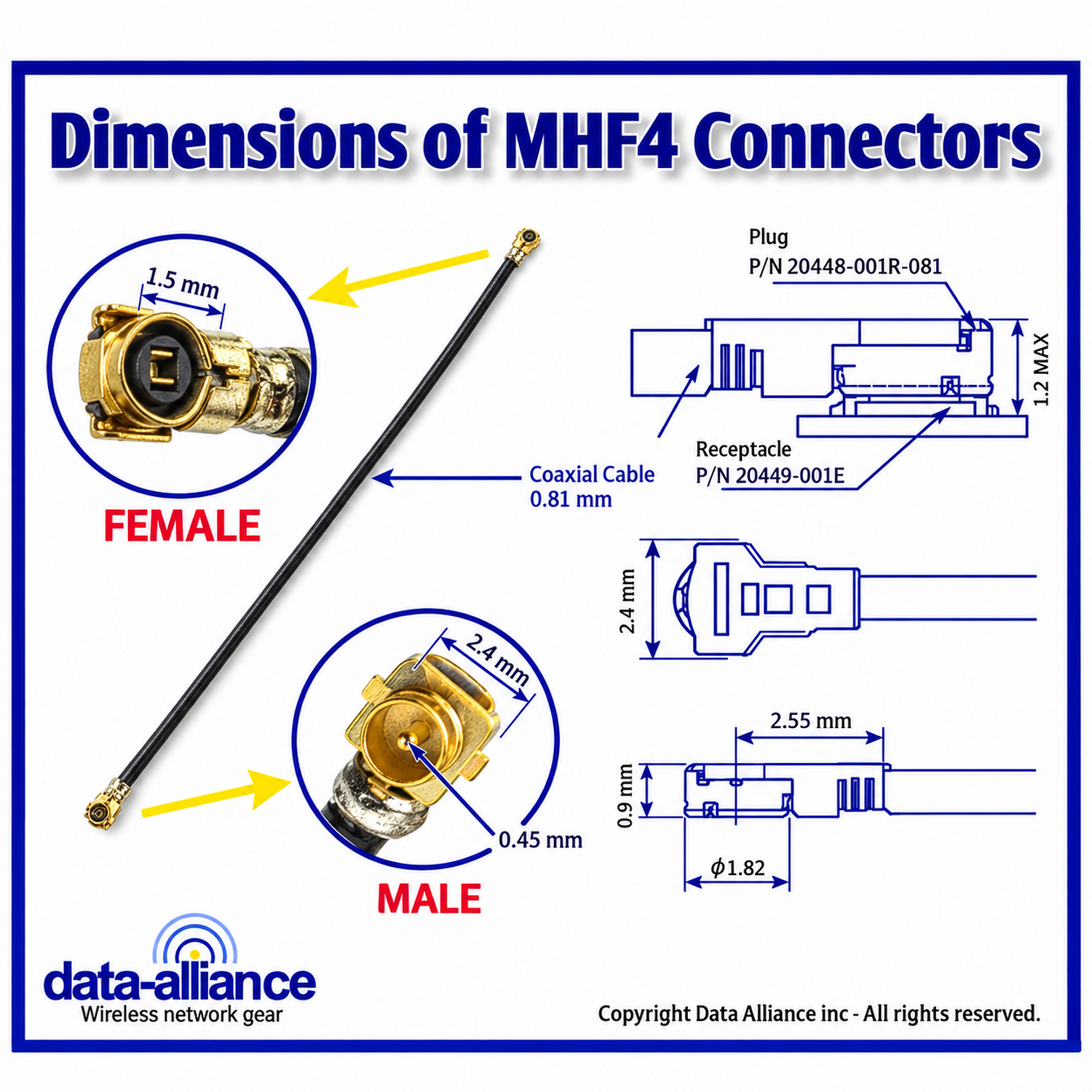

MHF4 dimension comparison between male and female coax cable.

Our MHF4 and N connectors are precision machined and gold-plated for low loss.

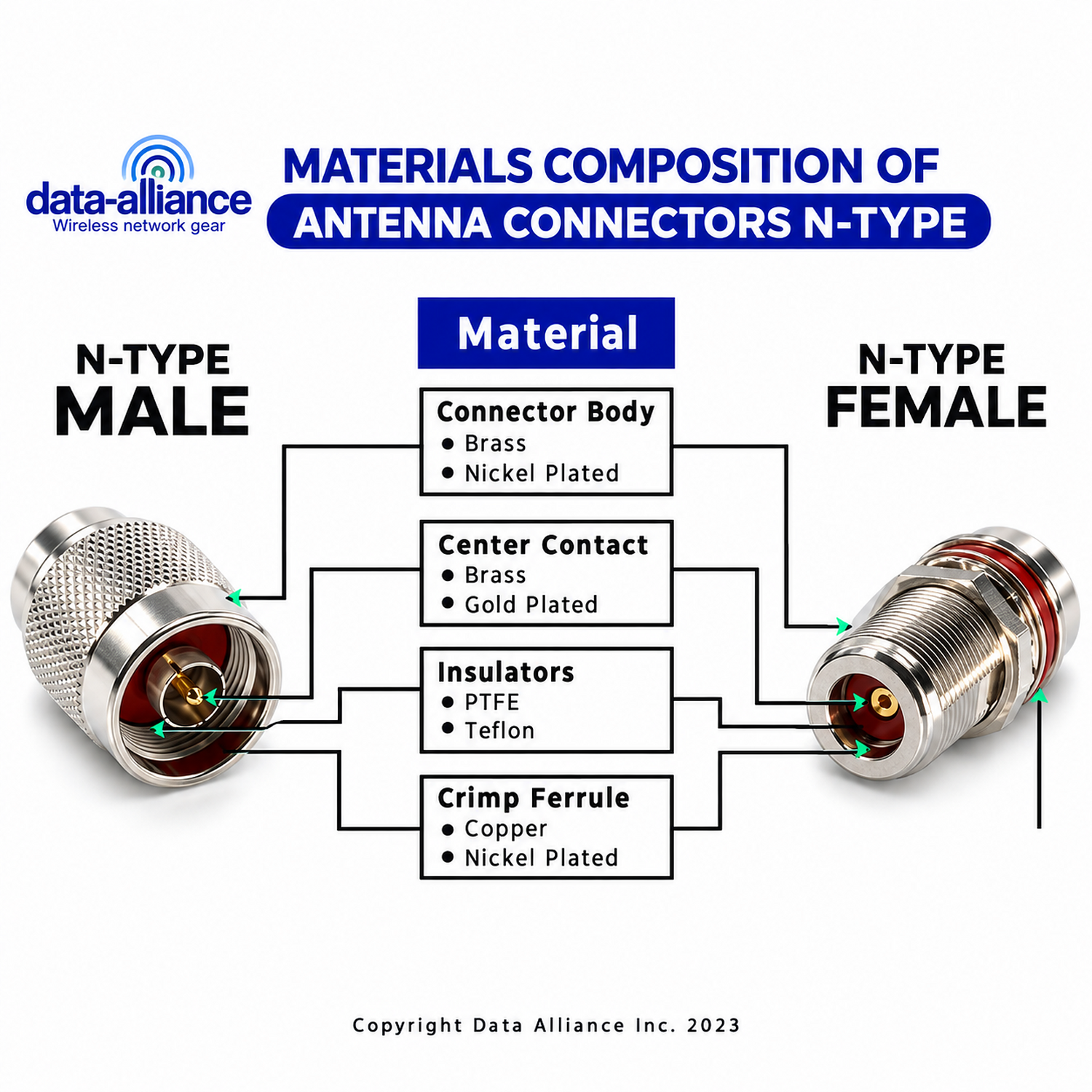

Type-N male and female connectors: Materials composition. Nickel-plated for weatherproofing.

N male and female connector options (choose above):



  • The N (male) option of this antenna cable is knurled and fits most large antennas: N is the largest of RF connector types, and very common to see on large antennas. Our N-type connectors are rated up to 12.5GHz, making them usable in not just WiFi applications, but also in the higher end of the microwave spectrum. Most large antennas have an N-female connector.
  • Nickel-plated brass body for enhanced corrosion resistance: Nickel plating is the most weather-resistant, corrosion-resistant metal plating.
  • The N-female-bulkhead connector option has a rubber O-ring, which provides a water-tight seal rated IP67, when installing in an enclosure port.
  • N-Female diameter is 0.620-inch (1.57 cm)
  • N is the largest of RF connector types, and very common to see on large antennas (most large antennas have an N-female connector).
  • Our N-type connectors are rated up to 12.5GHz, making them usable in not just WiFi applications, but also in the higher end of the microwave spectrum.

ROHS compliant: The cable and connectors are all lead-free and ROHS compliant.

Connectors are precision machined in ISO 9001 facilities, and gold-plated for low loss.

GENDER DETERMINATION: MHF4 jacks on a board (PCB) are the male MHF4, and the connector that mates with the jack is the female. Micro-connectors such as MHF series and U.FL have gender that is counter to typical RF terminology for gender, in that "jack" is more typically synonymous with "female."
