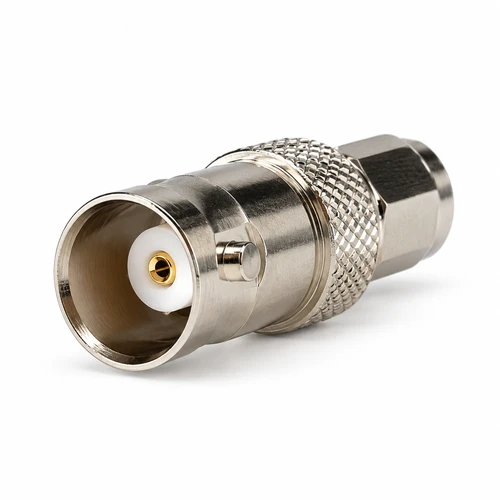

BNC female to SMA male Adapter Connector

$2.39
SKU:
BfSm
Brand:

Availability:
In stock
Weight:
0.07 LBS
BNC female to SMA male adapter
Write a Review

BNC female to SMA male Adapter Connector

Adapter: SMA-male connector to BNC female: One end has an SMA-male connector and the other end has a BNC (female) connector.

  • Interface Compatibility: Links SMA male to BNC male connectors—supports antennas, wireless equipment, and coax cables

  • Applications: Suitable for coaxial extensions, adapter conversions, and retrofit upgrades

  • Durability: Nickel-plated brass body offers maximum resistance to weather and corrosion

  • Signal Integrity: Gold-plated contact minimizes loss, ensuring cleaner transmission.

This adapter deliver broad compatibility across numerous wireless systems thanks to their wide frequency range (0GHz to 18GHz), low broadband VSWR, and precise 50 Ohm impedance matching. They support all current WiFi standards at 2.4GHz and 8GHz, including Wi-Fi HaLow 802.11AH, 802.11AX, 802.11AC, 802.11N, 802.11G, 802.11B, and 802.11A. These cables are also ideal for cellular technologies such as LTE / 4G, GSM / 3G, and WiMax—covering both voice and data needs. Additionally, they are well-suited for IoT, automation, and Machine to Machine (M2M) applications like Bluetooth, ZigBee, WiFi HaLow, RFID, LoRa, LTE-m, and NB-IoT, WiFi 6, WiFi 6E. For Helium network deployments in Europe, our cables—including all antenna cables and adapters with SMA-male connectors—are fully compatible with Bobcat miners, Sensecap miners, and all Helium LongFi devices.

SMA is a round screw-type connector, that is rated for frequencies from the lowest up to 18GHz

BNC is a round connector with slotted mating collar. Quick-disconnect connector for coaxial cable: It is not only used for Wireless Antenna extensions, but also for video, audio, and networking coax applications.

ROHS 3 and REACH compliant: The entire product is ROHS 3 compliant and free of lead and other heavy metals.

BNC cables for Video and Audio are 75 Ohm: See our BNC cables for Video and Audio:

BNC cables for wireless applications are 50 Ohm: See our 50 Ohm BNC cables for wireless applications

  • All of our 50 Ohm BNC cables for wireless applications have "50 Ohm" mentioned in the title of the product page.

Insertion loss: 0.26 dB maximum
