Antenna Dual-Band 2.4GHz 5GHz 5dBi Omnidirectional w/ RP-SMA connector

$3.75
SKU:
ADD5RA
Brand:

Availability:
In stock
Weight:
0.10 LBS
Dual-Band dipole antenna: 2.4GHz 5GHz 5dBi omnidirectional w/ RP-SMA male
Bulk Pricing:
Buy in bulk and save

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 20 - 39 and get 1% off
  • Buy 40 - 59 and get 2% off
  • Buy 60 - 79 and get 3% off
  • Buy 80 - 99 and get 4% off
  • Buy 100 - 299 and get 5% off
  • Buy 300 or above and get 10% off
Write a Review

Antenna Dual-Band Omnidirectional

5 dBi Dual Band Antenna with RP-SMA (male) connector Omni Directional

  • Sends WiFi / wireless signal high and low enough to reach 2 levels of a building.
  • Omni dipole antenna: Radiates signal with a beam of 360 degrees; also receives signal from 360 degrees around it
  • Mounts directly onto RP-SMA-female or SMA-female connector of radio or client device
  • Bottom section of "right angle" version has articulating angle that can be adjusted to 90-degrees or other angle.

Compatibility with wireless standards & applications: This omni directional dual band antenna's range of frequency band compatibility in the 2.4GHz and the 5.8GHz frequencies, its excellent low broadband VSWR at < 1.7, and impedance matching to 50 Ohm gear, makes it suitable and compliant for all the following applications:

RP-SMA Connector Composition: Our RP-SMA connectors are precision machined and gold-plated for low loss.

SPECIFICATIONS
Frequency 2400 ~ 2500MHz
5150 ~ 5850MHz
V.S.W.R 2.0
Antenna Gain 5dBi ± 0.5dBi @ 2400~2500MHz
5dBi ± 0.5dBi @ 5150~5850MHz
Efficiency >81% @ 2400 ~ 2500MHz
>73% @ 5150~5850MHz
Polarization Linear
Impedance 50 Ohm
Connector RP-SMA male
Environmental Operation Temperature: -40C ~ +65C
Storage Temperature: -40C ~ +80C

TEST RESULTS for FREQUENCY RANGES:

report antenna

The antenna exhibits stable and well-defined performance in the approximate range of 2.40 to 2.55 GHz, maintaining impedance matching close to the nominal 50 Ω across most of the evaluated band. The S11 parameter analysis shows improved matching around 2.44–2.45 GHz, where the VSWR decreases to approximately 1.55, corresponding to a Return Loss near −13 dB, indicating efficient power transfer and controlled reflection levels at the center of the band.

Frequency range Assessment Rating Compatible technologies
2.40–2.50 GHz Excellent ★★★★★ Wi-Fi 2.4 GHz (802.11b/g/n), Bluetooth (Classic & BLE), ZigBee, Thread, ISM band IoT devices, wireless sensors and telemetry systems, and embedded RF communication modules operating in the 2.4 GHz band.
Optimized 50 Ω impedance matching across the evaluated band. A clearly defined resonance is observed around 2.40–2.44 GHz, where VSWR decreases to approximately 1.11, corresponding to a Return Loss near −25.3 dB. This indicates highly efficient power transfer and minimal reflection losses within the ISM 2.4 GHz band.



ROHS compliant: The entire product is ROHS compliant (connector and antenna).

RP-SMA and SMA Connector Characteristics:

  • SMA Connector Material Composition
  • SMA Features and Key Information

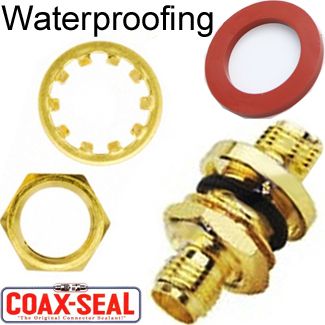

  • Articulating (Bendable) Right Angle: This antenna can be angled up to 90 degrees (articulating right angle) or positioned straight. The articulating (bendable) right-angle isn’t weatherproof: Water can seep into the angled part of the antenna. Articulating right-angle antennas are therefore recommendable for indoor use or protected outdoors, i.e. under an eave. If you need a weatherproof dipole antenna, you should choose either a straight dipole or one with a fixed right angle. See our weatherproof antennas .

RELATED ANTENNAS 4.9-6.0GHz



COMPATIBLE MOUNTS & TECH SUPPORT PAGES

All of our antennas pass QC test before we ship them.
