Antenna 5dBi LTE GSM 700MHz~2700MHz Omni-Directional. SMA or RP-SMA
- In stock
- 0.22 LBS
Outdoor / Indoor 5dBi Omni-Directional 700 MHz to 2700 MHz Antenna with Adhesive Mount
- With 5FT cable to SMA or RP-SMA connector options
- Dual Band / Multi-band in LTE 4G / 3G GSM frequency Bands
- IP65 ingress-protection rating: Weatherproof /waterproof
- Radiates signal with a beam of 360 degrees; also receives signal from 360 degrees around it.
- Marine antenna: This antenna can be used for marine use, but in a salt-water environment, the antenna often will begin to corrode after a year or possibly less: The chrome plating on the base bubbles and peels off: Our customers that us this antenna for marine use, find that the low cost and fact that it lasts about a year without any issue, in a marine environment, makes it suitable: The antenna is is cost-effective enough even considering that they replace the antenna when the corrosion begins.
- Data Alliance's high-quality soldered terminations of SMA and RP-SMA connectors with soldering provide a low-loss connection with discontinuities kept to a minimum.
Compatibility with wireless standards & applications:
- LTE / 4G & GSM /3G: Broadband design for 4G / LTE and 3G / GSM systems: 4G networks
- US domestic LTE: 700 MHz band: AT&T Mobility, Verizon.
- Global LTE: 2600 MHz band (2.6GHz)
- GSM bands 824-894 and 1850.2 - 1909.8 (US and Latin America / Mexico)
- 900MHz ISM Band. Can also be made to operate on other VHF and UHF frequencies within the ISM frequency bands.
- Non Line of Sight (NLOS): 900 MHz band is best for passing through trees and forests.
- IoT wireless & M2M: Compatible with many machine to machine communication applications, remote monitoring, and telemetry applications using LTE-m, 4G / LTE, 3G / GSM, LoRa. (Compatible because it is vertically polarized).
- WiMax frequency bands 2300 MHz / 2500 MHz / 2600 MHz (2.3GHz, 2.5GHz, 2.6GHz)
This omni directional antenna's range of frequency band compatibility in the 700 MHz to 2700 MHz frequency band range, its low broadband VSWR, and impedance matching to 50 Ohm gear, makes it suitable and compliant for all the above applications.
Features & applications
- As access point antenna: Provides signal to clients in any direction (360-degree horizontal beamwidth)
- As client antenna: Connect to an access point in any direction
- Capable of extending your wireless range up to 300 meters.
- Adhesive Mount is included for wall or pole mounting.
- Suitable for outdoor or indoor wireless gear with RP-SMA-female or SMA-female connector.
- ROHS & REACH compliant: Heavy metal content and other material content is in compliance with ROHS 3 and REACH (connector and antenna).
|Frequency range|| 700MHz~2700MHz
|HPBW / horizontal||360 degrees (horiz. pol. beamwidth)|
|HPBW / vertical||25 degrees (vertical pol. beamwidth)|
|Max Power handling||50W|
|Antenna Cable|| RG-174 coax cable to RP-SMA connector
|Antenna Connector||RP-SMA-male & SMA-male options|
|Survival wind speed||180Km/hr|
|Temperature||-40C ~+ 60C|
|Radome material||Hard plastic|
|Dimensions||Inches: L 4.5 X W 7/8 X 1/8|
Cable Length: 5 foot. Custom cable lengths and alternative connector types can be supplied for volume requirements.
RP-SMA and SMA Connector Characteristics:
- RP-SMA = Reverse Polarity SMA. Also known as SMA-RP, SMA-R, SMA RP, SMA R.
- RP-SMA and SMA gender is counter-intuitive: The gender is referring to the pins inside-not the threads. RP-SMA male have threads on the inside. More details regarding RP-SMA gender determination.
- RP-SMA-male and SMA are also called "plugs" and the respective female connectors are also called "jacks".
- RP-SMA and SMA are round screw-type connectors, with medium-sized, threaded coupling connectors that are rated for frequencies from the lowest (DC) up to 18GHz.
- SMA-male connector fits items that have an SMA (female) jack/connector.
- We offer an SMA wrench to assist in installing antennas, cables and adapters with SMA or RP-SMA connector(s).
- Composition of SMA male and RP-SMA male connectors:
RELATED PRODUCTS & PAGES:
- Antenna Mounts & Brackets
- Antennas: How to choose
- Directional Antennas
- Omni-Directional Antennas
- Wireless Frequencies: 2.4GHz, 5GHz, 900MHz, WiMax
- RP-SMA Cables, Antennas and Connectors
- SMA Cables & Adapters

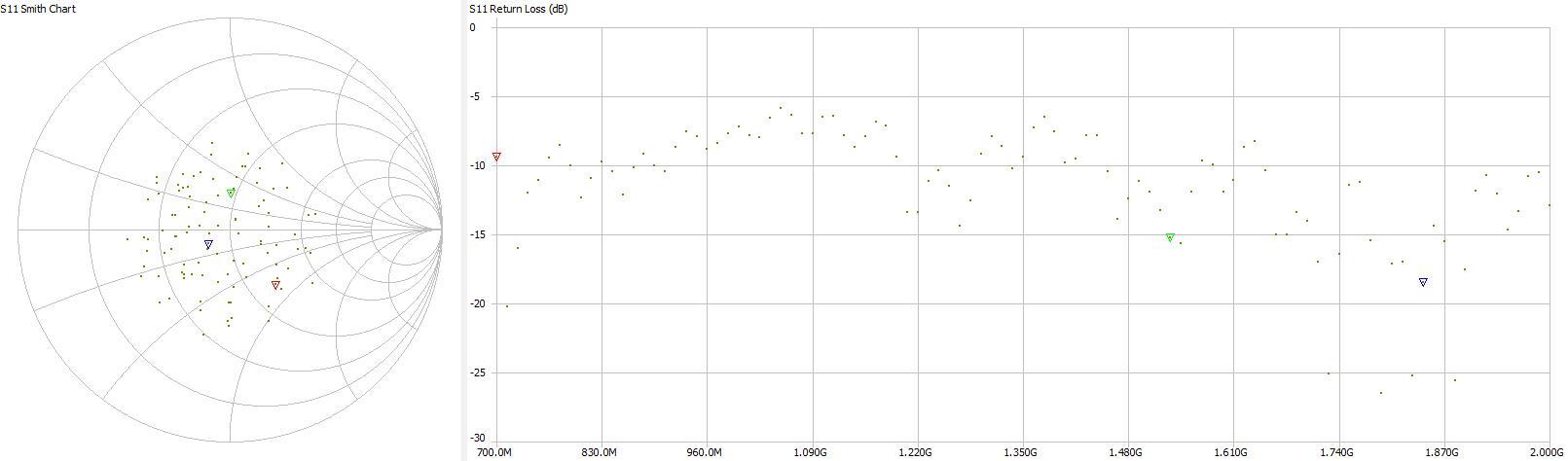

All of our antennas pass QC test before we ship them.
