Antenna: 5.1 - 5.8 GHz 12dBi Omni; Mounts: pole, wall. N-f. Waterproof

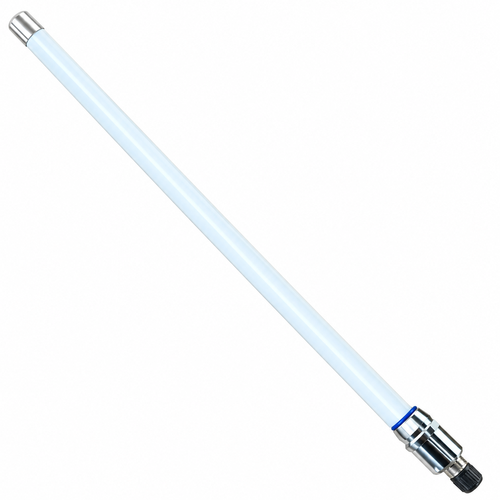

12dBi Omni-Directional Outdoor Antenna

12dBi Omni-Directional Outdoor Antenna: Radiates signal with a beam of 360 degrees; also receives signal from 360 degrees around it

This antenna is waterproof and will last in a marine / salt spray environment for about 1 year, before showing signs of corrosion (the chrome plating on the base bubbles and peels off). Comes with mounts for pole or wall.

• Frequency range: 5.1 - 5.8 GHz
• As access point antenna: Provides signal to clients in any direction (360-degree horizontal beamwidth)
• As client antenna: Connect to an access point in any direction
• IoT wireless & M2M : Bluetooth , ZigBee , and ISM . Since it is vertically polarized , it is compatible with many machine to machine communication applications, remote monitoring, and telemetry applications.
• Designed for WiFi / Wireless networking 802.11ac
• Capable of extending your wireless range of up to one mile.
• Mounting options: Wall or pole.
• Mounting hardware included: Mounting kit with aluminum tube and U-bolts set is included with this antenna. See details / specifications of the mounting kit. The mount kit is especially suitable for pole mounting
• Suitable for outdoor Access Point / Router with N-type connector (such as Ubiquiti BulletM2HP)
• Fiberglass antenna suitable for marina / boating / yacht
• We offer a magnetic base that holds this antenna upright & has a cable to RP-SMA-male connector
• Nickel-plated brass body for enhanced corrosion resistance: Nickel plating is the most weather-resistant, corrosion-resistant metal plating.

TECHNICAL SPECIFICATIONS: See radiation pattern images

Frequency range	5100 ~ 5800MHZ
Gain (dBi)	12 dBi
VSWR	< 1.8
Impedance	50 Ohm
Polarization	Linear Vertical
HPBW / horizontal	360 degrees
HPBW / vertical	25 degrees
Max Power handling	50W
Antenna Connector	N FEMALE
Survival wind speed	180Km/hr
Temperature	-40C ~+80C
Humidity	100% @25c
Lightning Protection	Direct Ground
Radome color	Gray-white
Radome material	Fiberglass
Weight+Packing Weight	710g (25oz)
Dimensions	Length 500mm x W32mm x H32mm (19.7 x 1.26 x 1.26 in)

ROHS 3 & REACH compliant: Antenna, cable and connector are all compliant with ROHS 3 and REACH.

COMPATIBILITY: List of Compatible Products

N-female connector fits items that have an N-male jack/connector.

GENDER DETERMINATION: Gender of N is counter-intuitive: Please observe picture (on the right: N-female connector as on the antenna) and note it is correct.The gender is refers to the pins inside-not the threads. N-female has threads on outside. Click here for more details regarding N-connector gender determination.

Compatible with Ubiquiti BulletM5HP

N-type Connector Characteristics and Details: Durable, weatherproof connection

• Nickel-plated brass body for enhanced corrosion resistance: Nickel plating is the most weather-resistant, corrosion-resistant metal plating.
• Our N connectors provide a consistent performance from 900MHz to 12.5 GHz.
• N-Female diameter is 0.620-inch (1.57 cm) . N-male inside diameter is 0.620-inch (1.57 cm)
• N-connector gender is counter-intuitive .
• N-Type connectors are the largest of the RF connector types , and are usually found on large antennas, especially for outdoor use.
• Our N-Type connectors feature threaded coupling mechanisms and are fully interchangeable with N-Type connectors made to the MIL-C-39012 specification. These connectors are used in all systems where excellent RF and mechanical performance is critical.

N materials composition :

• Connector Body: Nickel-Plated Brass : The most corrosion-resistant of all plated brass alloys (better than gold-plated).
• Center Contact: Beryllium Copper, Gold Plated
• Crimp Ferrule: Copper, Nickel Plated
• Insulators: PTFE
