RF ADAPTER: SMA MALE To RP-SMA MALE for antenna cable
- This adapter has an SMA (male) connector on one end and a RP-SMA male connector on the other end.
- Enables connection of an RP-SMA (female) connector to a SMA (female) connector.

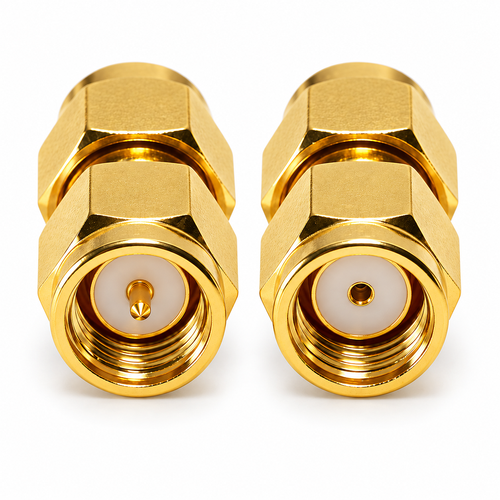

- The connector on left in photo is SMA (male) and connector on right is RP-SMA(male)
- Data Alliance's high-quality soldered terminations of SMA and RP-SMA connectors with soldering provide a low-loss connection with discontinuities kept to a minimum.
This adapter has an RP-SMA male connector on one end, and has a female SMA connector on the other end.
RP-SMA male has a socket (not a pin). SMA-male has a pin (not a socket).
RP-SMA and SMA are both round screw-type connectors, with medium-sized, threaded coupling connectors that are rated for frequencies from the lowest (DC) up to 18GHz.
This antenna cable adapter's range of frequency band compatibility (from 0 to 18GHz) and 50 Ohms impedance matching, makes them suitable and compliant for all the following applications:
- All WiFi standards: 2.4GHz and 5GHz applications: 802.11AC, 802.11N, 802.11G, 802.11B, 802.11A
- Cellular Wireless LTE / 4G, GSM / 3G WiMax: Data and voice applications
- IoT wireless & M2M: Bluetooth, ZigBee, RFID, LoRa, LTE-m, NB-IoT.
Gender of RF connectors is counter-intuitive: Read more about this
RP-SMA and SMA connectors composition:
- Connector Body: Gold-Plated Brass
- Center Contact: Beryllium Copper, Gold Plated
- Crimp Ferrule: Copper, Nickel Plated
- Insulators: PTFE
GENDER of RP-SMA is counter-intuitive in two ways: Please observe picture & note it is correct.
- The gender is referring toThe pins inside--not the threads. RP-SMA male has threads on inside.
- "RP" stands for reverse polarization: The pins are female when they appear to be male, and vice versa.
- Click here for more details regarding RP-SMA gender determination.
