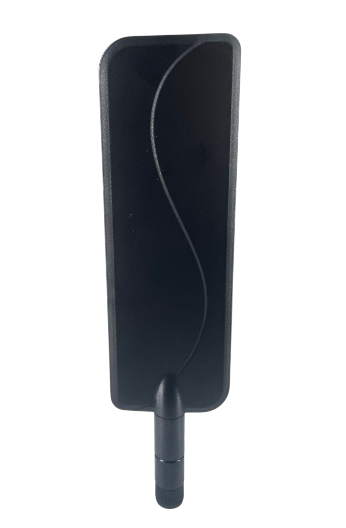

LTE 5G / 4G Antenna 600–6000 MHz 5dBi Omni Directional | SMA

Wideband LTE Antenna 5 dBi Omni w/ Hinged SMA Male

Features

• Wideband 600-6000 MHz operation
• 5 dBi omnidirectional gain
• SMA male connector
• Adjustable hinged design bends to right angle or straight
• Supports LTE, 5G, WiFi, LTE-M, and NB-IoT
• 50 Ohm impedance
• Vertical polarization
• Rugged PC+ABS construction
• Industrial temperature rating
• Ideal for routers, gateways, modems, and IoT devices

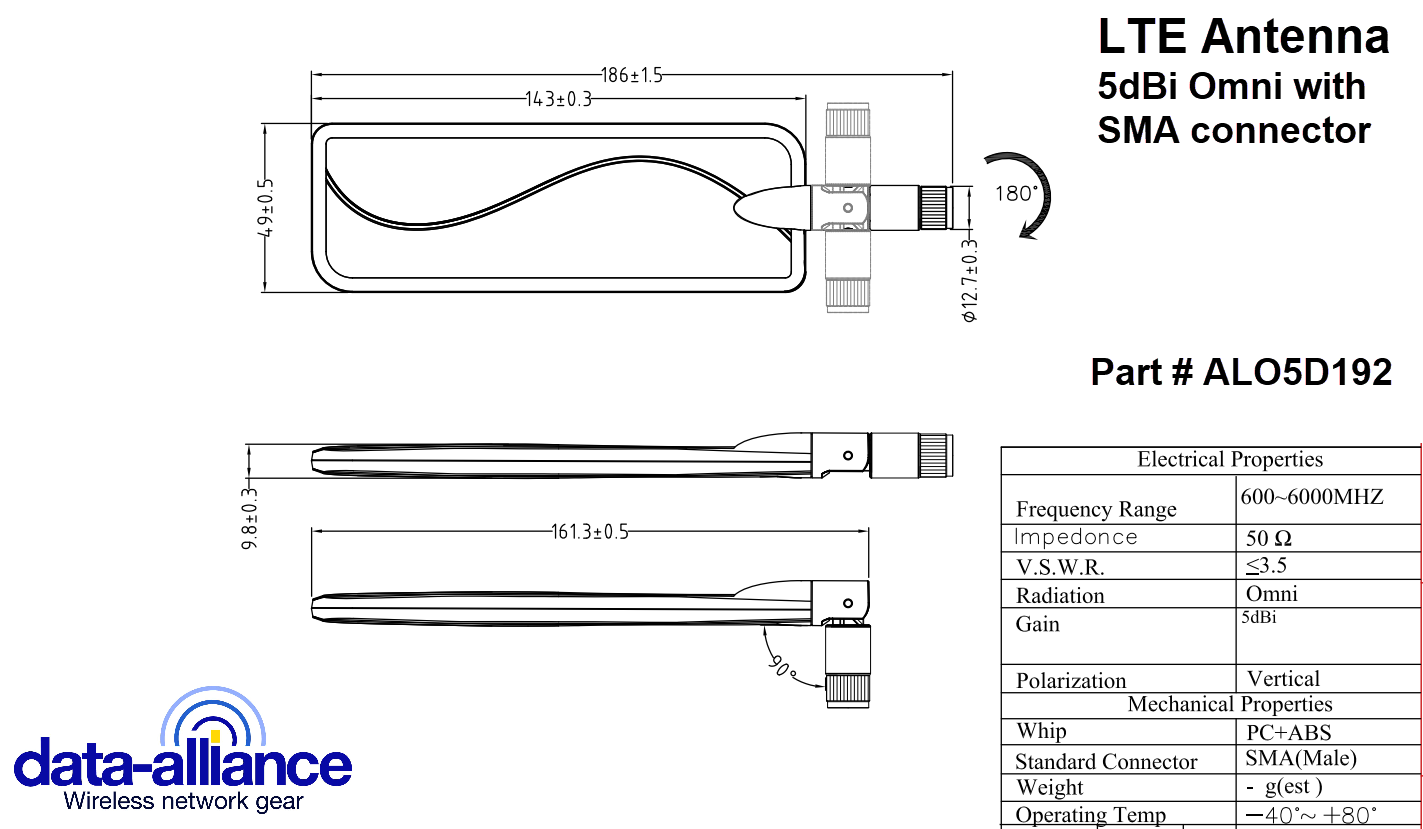

Specifications

• Frequency Range: 600-6000 MHz
• Gain: 5 dBi
• Impedance: 50 Ohms
• VSWR: ≤ 3.5
• Radiation Pattern: Omnidirectional
• Polarization: Vertical
• Adjustable Hinged SMA-male Connector:  SMA Male: Bendable to right angle or straight orientation

• Housing Material: PC + ABS
• Operating Temperature: -40°C to +80°C
• Compact Low-Profile Design

Wideband Frequency Coverage

Covering frequencies from 600 MHz through 6000 MHz, this antenna supports many commonly used wireless bands, including:

• 4G LTE
• 5G cellular bands
• LTE-M
• NB-IoT
• GSM
• UMTS / 3G
• Private LTE networks
• WiFi 2.4 GHz
• WiFi 5 GHz
• WiFi 6
• Industrial wireless systems
• M2M communications
• IoT networks

This broad operating range makes the antenna particularly useful for devices that operate on multiple bands or are deployed in different regions around the world.

Adjustable Hinged Design

The integrated SMA male connector features a hinged mechanism that allows the antenna to be positioned at multiple angles for optimal installation and signal performance.

The antenna can be adjusted from straight to right-angle positions, making it ideal for equipment where space is limited or where antenna orientation must be optimized.

This feature is particularly useful for:

• Cellular routers
• Industrial gateways
• Embedded devices
• Wireless modems
• Network appliances
• Equipment installed in cabinets and enclosures

5 dBi Omnidirectional Performance

The antenna provides approximately 5 dBi gain with omnidirectional radiation characteristics. Omnidirectional coverage allows the antenna to transmit and receive signals in all horizontal directions, making it well suited for mobile and fixed installations where signal sources may originate from different locations.

Benefits include:

• Improved signal coverage
• Reliable wireless connectivity
• Consistent performance across multiple directions
• Simplified antenna positioning
• Suitable for mobile and stationary equipment

The vertical polarization design is optimized for most cellular and wireless communication systems.

Compact and Lightweight Construction

The antenna utilizes a durable PC+ABS housing that combines strength, impact resistance, and long-term reliability.

Its compact profile allows installation in applications where larger antennas may not be practical while still delivering dependable RF performance.

The low-profile design makes it suitable for:

• Desktop routers
• Cellular gateways
• Industrial controllers
• Kiosks
• Security equipment
• Telemetry systems
• Smart devices

Designed for Industrial and Commercial Applications

This antenna is suitable for a wide variety of wireless communication systems including:

Cellular Connectivity

• LTE routers
• 4G gateways
• 5G equipment
• Cellular backup internet devices
• Industrial cellular modems

IoT and M2M Applications

• Remote monitoring systems
• Asset tracking devices
• Environmental sensors
• Smart agriculture systems
• Industrial automation equipment

Wireless Networking

• WiFi access points
• Wireless bridges
• Embedded networking devices
• Broadband wireless equipment

Compact 5 dBi omnidirectional antenna designed to provide reliable wireless connectivity across an exceptionally wide frequency range of 600 MHz to 6000 MHz. Featuring an SMA male connector and an adjustable hinged design, this antenna is ideal for LTE routers, cellular gateways, IoT devices, industrial equipment, wireless modems, access points, and embedded communication systems.

Its broad frequency coverage supports multiple wireless technologies, allowing a single antenna solution to serve a wide range of applications while reducing the need for frequency-specific antennas.
