Antenna Dual-Band 2.4 / 5GHz 2dBi Omnidirectional: RP-SMA & SMA Waterproof
- SKU:
- ADD2RAv2
- Availability:
- In stock
- Weight:
- 0.07 LBS
Data Alliance
Below are the available bulk discount rates for each individual item when you purchase a certain amount
- Buy 10 - 19 and get 1% off
- Buy 20 - 39 and get 2% off
- Buy 40 - 59 and get 3% off
- Buy 60 - 79 and get 5% off
- Buy 80 - 99 and get 6% off
- Buy 100 - 199 and get 7% off
- Buy 200 - 299 and get 10% off
- Buy 300 - 499 and get 15% off
- Buy 500 - 999 and get 20% off
- Buy 1000 - 1999 and get 22% off
- Buy 2000 or above and get 25% off
Antenna Dual-Band Omnidirectional
Dual Band Antenna Omni Directional with RP-SMA (male) connector and SMA-male connector options (choose above)
- Sends WiFi / wireless signal high and low enough to reach 2 levels of a building.
- Omni dipole antenna: Radiates signal with a beam of 360 degrees; also receives signal from 360 degrees around it
- Mounts directly onto RP-SMA-female or SMA-female connector of radio or client device

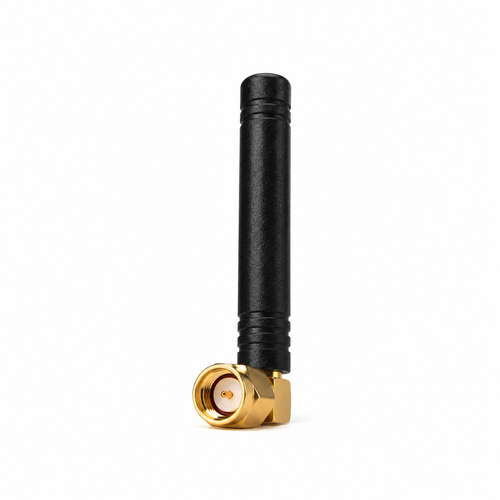

- Bottom section of "right angle" version has articulating angle that can be adjusted to 90-degrees or other angle.
- The versions with an all-brass base (connector section) are waterproof / weatherproof rated IP65.
Compatibility with wireless standards & applications: This omni directional dual band antenna's range of frequency band compatibility in the 2.4GHz and the 5.8GHz frequencies, its excellent low broadband VSWR at < 1.7, and impedance matching to 50 Ohm gear, makes it suitable and compliant for all the following applications:
- IoT wireless & M2M : 802.11AC, 802.11N, 802.11G, 802.11B, 802.11A, 802.11AH.
- As access point antenna: Provides signal to clients in any direction (360-degree horizontal beamwidth).
- As client antenna: Connect to an access point in any direction.
- Designed for wireless 802.11ac and other Dual Band 2.4GHz / 5.8 GHz applications.
Omni-directional direct connect antennas tuned to perform on 2.4 & 5.8 GHz networks. Vertically polarized and suitable for many of today’s machine to machine and communication applications such as telemetry, remote monitoring and mesh networking applications.
SPECIFICATIONS:
| Frequencies: |
|
| Gain: | 2dBi |
| V.S.W.R: | Less than =2.2:1 |
| Impedance: | 50 ohms |
| Connector options: | RP-SMA Male and SMA male: Right angle & straight versions of both RP-SMA and SMA. |
| Dimensions: | 57 x 16.5 x 8mm (2.3 x .65 x .32 in) |
| Operating temperature range: | -20 to 65 °C |
| Storage temperature range: | -30 to 75 °C |
The tested antenna demonstrates consistent and reliable performance within the 2.4 GHz ISM band, widely used for technologies such as WiFi, Bluetooth, and Zigbee. VSWR values between 1.395 and 1.449 indicate excellent impedance matching, minimizing signal reflections. Furthermore, return loss greater than –14.7 dB across the entire tested range reflects very good radiation efficiency.
Another frequency: 5.5-5.8GHz
This antenna exhibits very good impedance matching within the measured range, especially between 5.73 GHz and 5.78 GHz, where the Return Loss is better than –18 dB and the VSWR is close to 1.23. This ensures efficient transmission with minimal reflection losses. The pattern on the Smith chart confirms that the design is properly tuned to operate within this band.
Lead-free and ROHS 3 compliant: The entire product is ROHS 3 compliant (connector and antenna).
- SMA and RP SMA Connector Materials Composition
- SMA and RP SMA Characteristics and Key Information
- Articulating (Bendable) Right Angle: This antenna can be angled up to 90 degrees (articulating right angle) or positioned straight. The articulating (bendable) right-angle isn’t weatherproof: Water can seep into the angled part of the antenna. Articulating right-angle antennas are therefore recommendable for indoor use or protected outdoors, i.e. under an eave. If you need a weatherproof dipole antenna, you should choose either a straight dipole or one with a fixed right angle. See our weatherproof antennas .
