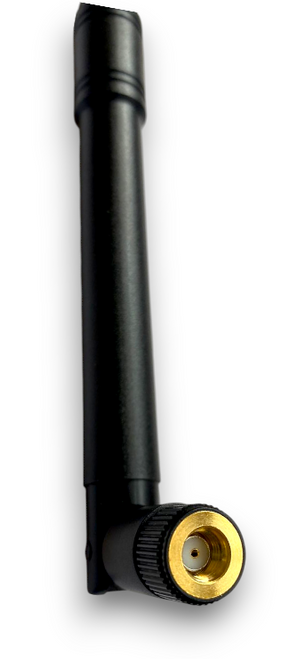

Antenna 2.5 ~ 2.7GHz 7dBi OMNI w/RP-SMA-male articulating right-angle
- In stock
- 0.15 LBS
Omnidirectional w/RP-SMA-male articulating right-angle
Omni directional dipole antenna: Radiates signal with a beam of 360 degrees; also receives signal from 360 degrees around it.
Compatibility with wireless standards & applications: This omni directional antenna's range of frequency band compatibility in the 2.5~2.7GHz frequency band range and impedance matching to 50 Ohm gear, makes it suitable and compliant for all the following applications:
- IoT wireless & M2M: Bluetooth, ZigBee, and ISM. Since it is vertically polarized, it is compatible with many machine to machine communication applications, remote monitoring, and telemetry applications.
- 2.4GHz WiFi applications: 802.11N, 802.11G, 802.11B
- Compatible with Bluetooth devices, Wireless Access Points & other wireless devices that have RP-SMA antenna jacks
- As Bluetooth antenna: Send or receive signal to devices in all directions (360-degree horizontal beamwidth)
- As client antenna: Connect to access points in any direction. Portable size: Easily fits in a laptop case.
Features & applications
- As access point antenna: Provides signal to clients in any direction (360-degree horizontal beamwidth)
- As client antenna: Connect to an access point in any direction
- Capable of extending your wireless range up to 300 meters.
- Suitable for outdoor or indoor wireless gear with RP-SMA-female or SMA-female connector.
|Size||L299 x W13.7 x H13.7mm (11.8 x .54 x .54 in)|
ROHS 3 & REACH compliant: Antenna, cable and connector are all compliant with ROHS 3 and REACH.
RP-SMA and SMA Connector Characteristics and Details:
- RP-SMA = Reverse Polarity SMA . Also known as SMA-RP, SMA-R, SMA RP, SMA R.
- RP-SMA and SMA gender is counter-intuitive: The gender is referring to the pins inside-not the threads. RP-SMA male have threads on the inside. More details regarding RP-SMA gender determination .
- RP-SMA-male and SMA are also called "plugs" and the respective female connectors are also called " jacks ."
- RP-SMA and SMA are round screw-type connectors, with medium-sized, threaded coupling connectors that are rated for frequencies from the lowest (DC) up to 18GHz.
- SMA-male connector fits items that have an SMA (female) jack/connector .
- We offer an SMA wrench to assist in installing antennas, cables and adapters with SMA or RP-SMA connector (s).
- Composition of SMA male and RP-SMA male connectors :
- 96% brass-copper alloy
- Less than 4% lead content ( ROHS Compliant )
- 0.1% Chromium VI compound
- 0.01% (by weight) Cadmium / cadmium compounds
- 0.1% Mercury
- 0.1% PBBs
- 0.1% PBDE
- Mounts directly onto RP-SMA(female) connector of access point, bridge, USB WiFi adapter, or booster. See other magnetic bases that fit this antenna and have antenna cables with other types of connectors.
- Articulating (Bendable) Right Angle: This antenna can be angled up to 90 degrees (articulating right angle) or positioned straight. The articulating (bendable) right-angle isn’t weatherproof: Water can seep into the angled part of the antenna. Articulating right-angle antennas are therefore recommendable for indoor use or protected outdoors, i.e. under an eave. If you need a weatherproof dipole antenna, you should choose either a straight dipole or one with a fixed right angle. See our weatherproof antennas.
