RP-SMA-male-right-angle To RP-SMA-female-right-angle Cable: 3-inch, 4-in, 5-in, 6.5-in, 8-in, 9-in, 10-in, 12-in, 14in, 16in

$4.75
SKU:
RSmRA6iRSfRA100
Brand:

Availability:
In stock
Weight:
0.04 LBS
Write a Review

1 Review

  • 4
    Good quality cable

    Posted by Brian on 12th Sep 2017

    We have been using these for about a year now, and the right angle bulkhead is exactly what we needed to improve the quality of our product.

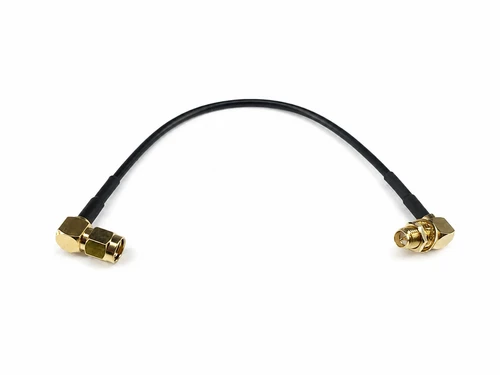

RP-SMA-male-right-angle To RP-SMA-female-right-angle Cable

  • Similar cables w/ RP-SMA connectors w/ right-angle (including other lengths of this cable)
  • The female end is an extended version of RP-SMA-female (bulkhead type: 15mm with about 20 threads.
  • Data Alliance's high-quality soldered terminations of RP-SMA connectors with soldering provide a low-loss connection with discontinuities kept to a minimum.

RP-SMA female connector includes a bulkhead nut and washer, which are essential components for mounting the connector securely and weatherproofing the cable connection.

Gender Comparison between Coaxial RP-SMA Connectors; Male And Female

  • You can use this to mount the connector (and thus the cable) on the wall of an enclosure (to weatherproof the cable connection), case, or Printed Circuit Board (PCB).
  • Weatherproofing: Seal the hole where the female connector is mounted by placing an O-ring between the enclosure's wall and the bulkhead nut and washer on the female connector.
  • The length of our standard RP-SMA-female connector (threaded part) is 3/8 inches (9.525mm). We have a longer option: 14.5mm, which we can use for special-order cable requests. Our 9-inch and 10-inch options on this page have the longer 3/8 inches (9.525mm) connector.
  • All our cables with SMA and RP-SMA female connectors have bulkhead mount hardware.

Lead-free and compliant with RoHS and REACH: All of our antenna cables and RF adapters are RoHS compliant and REACH compliant.

Rest assured, our RP-SMA-male-right-angle to RP-SMA-female-right-angle Cable is fully compatible with all Helium miners used in North America, including Bobcat miners, Sensecap miners, and all other Helium LongFi miners. This compatibility extends to all of our antenna cables and adapters with RP-SMA-male connectors, ensuring the versatility of our products. Helium miners used in North America, including Bobcat miners, Sensecap miners, and all other Helium LongFi miners, as are all of our antenna cables and adapters with RP-SMA-male connectors

Impedance-matched to 50 ohm antennas and cables.

RP-SMA is a round screw-type connector with medium-sized, threaded coupling connectors rated for frequencies from the lowest (DC) up to 18GHz. This antenna cable is compliant with all types of wireless antennas, including wireless / WiFi networks, BlueTooth, ZigBee, Cellular voice & data, and WiMax: Wi-Fi 6, WiFi 6E, 802.11AX, 802.11N, AC, G, A, B. 900MHz, 2.4GHz & 5GHz applications, as well as any other frequency between 0 and 18GHz.

The cable is double-shielded, low-loss, and very flexible/easily bendable. The cable type is equivalent to or better than LMR-100: Coax with a black jacket has the same or better signal loss per meter and flexibility as LMR-100 and less attenuation (signal loss) than RG174. The higher quality of this antenna cable coax translates into lower loss/better performance. The cable is equivalent to LMR-100 in thickness. This cable is rated for outdoor use and is also suitable for indoor use. The impedanceattenuation (signal loss) than RG174. The higher quality of this antenna cable coax translates into lower loss/better performance. The cable is equivalent to LMR-100 in thickness. This cable is rated for outdoor use and is also suitable for indoor use. Impedance is 50 Ohms.

rg-174-lmr-100-characteristics-compared-rp-sma-male-right-angle-rp-sma-female-right-angle-8ghz

Torque rating RP-SMA male right-angle to female right-angle

The temperature range for operational use of this 100-series coax and the cable assembly is -22 F ~ +185 F (-30 C ~ +85 C)

The gender of RP-SMA is counter-intuitive in two ways:

  1. The gender refers to the pins inside the threads. RP-SMA male has threads on the inside.
  2. "RP" stands for reverse polarization: The pins are female when they appear male, and vice versa.
