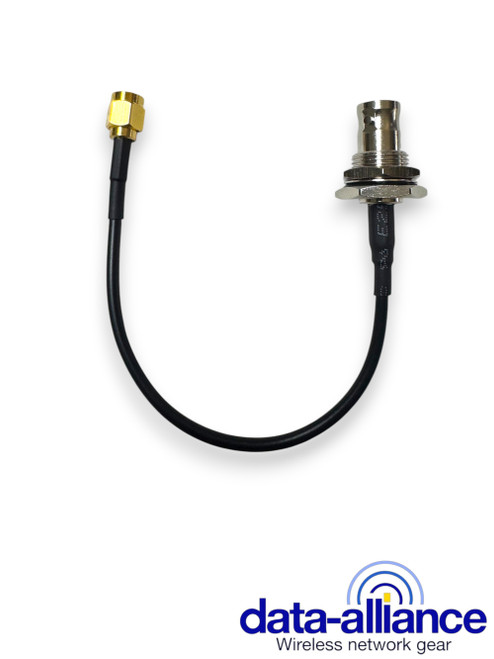

BNC female to SMA-male (Straight or RIght Angle) Cable 6-inch Low Loss
- SKU:
- Bf6iSm100
- Availability:
- In stock
- Weight:
- 0.06 LBS
Data Alliance
BNC female to SMA male Cable
Antenna Cable: SMA-male connector options: Straight and right angel
Cable is double-shielded, low-loss and very flexible/easily bendable. Coaxial cable type is similar to LMR-100 but better quality than LMR100: Coax with black jacket has the same or better signal-loss-per-meter and flexibility as LMR100, and less attenuation (signal loss) than RG174. The higher quality of this cable translates into lower loss/better performance. Cable is equivalent to LMR-100 in thickness. This cable is rated for outdoor use and is also suitable for indoor use.
The temperature range for operational use of this 100-series coax and the cable assembly, is: -22 F ~ +185 F (-30 C ~ +85 C)
Lead-free and ROHS compliant: The entire product is ROHS compliant (connectors and cable).
BNC cables for Video and Audio are 75 Ohm:
- Male to Female for Video and Audio applications
- BNC male to male cables (75 Ohm): Video and Audio applications
BNC cables for wireless applications are 50 Ohm:
- See our 50 Ohm BNC cables for wireless applications
- All of our 50 Ohm BNC cables for wireless applications have "50 Ohm" mentioned in the title of the product page.
BNC connectors connect with a half-turn. Gender is determined by the inside wire - not the outside connector. BNC is a Round connector with slotted mating collar. Quick-disconnect connector for coaxial cable: It is not only used for Wireless Antenna extensions, but also for video, audio, and networking coax applications.
- Nickel-plated brass body for enhanced corrosion resistance: Nickel plating is the most weather-resistant, corrosion-resistant metal plating.
SMA is a round screw-type connector, that is rated for frequencies from the lowest up to 18GHz: This antenna cable is compliant for all types of wireless antennas, including WiFi & WiMax networks: 802.11N, AC, G, A, B, AX. 900MHz, 2.4GHz & 8GHz, Wi-Fi HaLow 802.11AH, WiFi 6 and WiFi 6E applications, as well as any other frequency between 0 and 18GHz.
SMA male connector:
- Impedance-matched to 50 ohm antennas and cables.
- SMA Dimensions
- SMA Connector Material Composition
Data Alliance's high-quality soldered terminations of SMA and BNC connectors with soldering provide a low-loss connection with discontinuities kept to a minimum.
Similar cables and adapters:
BNC Female (Panel Mount) to SMA Male – RG174, 6-inch
- Cable type: RG174 (flexible, lower loss)
- Use case: Compact RF setups, test equipment
BNC Female Bulkhead to SMA Male – LMR-100, 6-inch
- Cable type: LMR-100 (lower loss than RG174)
- Shielding: Tighter shielding for reduced interference
- Application: IoT, antennas, RF modules
BNC Female to SMA Male – RG174, 6-inch
- Cable type: RG174 (very flexible, slightly higher loss)
- Use case: Economical choice for short-range RF
BNC Female to SMA Male – Semi-Rigid .085"
- Cable type: Semi-rigid coax (stable shape for test/measurement)
- Use case: Lab/test setups, RF instruments
Adapter Options (No Cable)
If you only need an adapter, not a flexible cable:
- BNC Female Bulkhead to SMA Male Adapter
- All-metal body
- Useful for chassis or panel installations
- Right-Angle BNC Female to SMA Male Adapter
- Ideal for tight or corner-mounted installations
