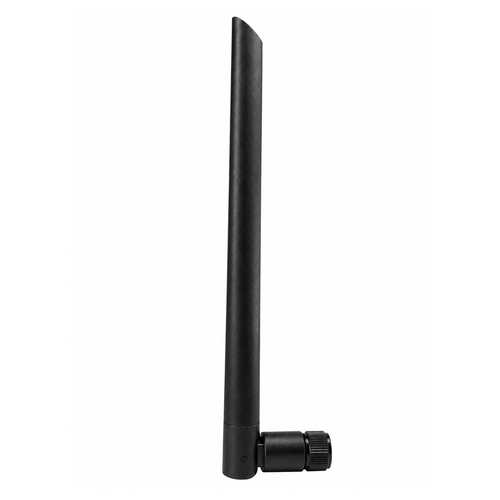

Antenna 5G 3dBi 698~960/170~2700MHz + 2300-3800MHz Omni SMA & RP-SMA

Antenna 5G 3dBi 698~960/170~2700MHz + 2300-3800MHz Omni SMA & RP-SMA

Outdoor / Indoor 3dBi Omni-Directional Antenna: 700 MHz to 2700 MHz and 3300-3800MHz frequency bands

• Dual Band / Multi-band in 5G + LTE 4G + 3G GSM frequency Bands
• IP65 ingress-protection rating: Weatherproof / waterproof
• Radiates signal with a beam of 360 degrees; also receives signal from 360 degrees around it.
• Marine antenna: This antenna can be used for marine use, but in a salt-water environment, the antenna often will begin to corrode after a year or possibly less: The chrome plating on the base bubbles and peels off: Our customers that us this antenna for marine use, find that the low cost and fact that it lasts about a year without any issue, in a marine environment, makes it suitable: The antenna is is cost-effective enough even considering that they replace the antenna when the corrosion begins.

Compatibility with wireless standards & applications:

• LTE / 4G & GSM /3G: Broadband design for 4G / LTE and 3G / GSM systems: 4G networks
  • GSM is 3G wireless (Global System for Mobile Communication)
• US domestic LTE: 700 MHz band: AT&T Mobility, Verizon.
• Global LTE: 2600 MHz band (2.6GHz)
• GSM bands 824-894 and 1850.2 - 1909.8 (US and Latin America / Mexico)
• 900MHz ISM Band. Can also be made to operate on other VHF and UHF frequencies within the ISM frequency bands.
• Non Line of Sight (NLOS): 900 MHz band is best for passing through trees and forests.
• IoT wireless & M2M: Compatible with many machine to machine communication applications, remote monitoring, and telemetry applications using LTE-m, 4G / LTE, 3G / GSM, LoRa. (Compatible because it is vertically polarized).
• WiMAX frequency bands 2300 MHz / 2500 MHz / 2600 MHz (2.3GHz, 2.5GHz, 2.6GHz)

This omni directional antenna's range of frequency band compatibility in the 700 MHz to 2700 MHz frequency band range, its low broadband VSWR, and impedance matching to 50 Ohm gear, makes it suitable and compliant for all the above applications.

Features & applications

• As access point antenna: Provides signal to clients in any direction (360-degree horizontal beamwidth)
• As client antenna: Connect to an access point in any direction
• Capable of extending your wireless range up to 300 meters.
• Adhesive Mount is included for wall or pole mounting.
• Suitable for outdoor or indoor wireless gear with RP-SMA-female or SMA-female connector.
• Frequency range: 2.4G - 2.5 GHz
• ROHS & REACH compliant: Antenna, cable and connector are all compliant with ROHS 3 and REACH.

ROHS 3 & REACH compliant: Antenna, cable and connector are all compliant with ROHS 3 and REACH.

SMA & RP SMA Connector Characteristics:

SMA male and RP SMA male Connector Materials Composition

• Articulating (Bendable) Right Angle: This antenna can be angled up to 90 degrees (articulating right angle) or positioned straight. The articulating (bendable) right-angle isn’t weatherproof: Water can seep into the angled part of the antenna. Articulating right-angle antennas are therefore recommendable for indoor use or protected outdoors, i.e. under an eave. If you need a weatherproof dipole antenna, you should choose either a straight dipole or one with a fixed right angle. See our weatherproof antennas .
