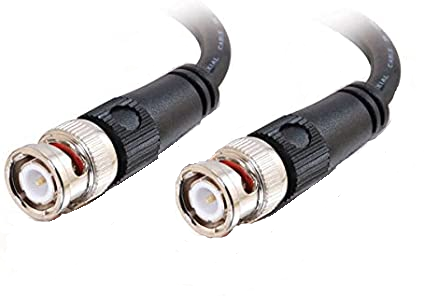

BNC Cables for Video: 3G-SDI and HD-SDI over 75-Ohm Coax

BNC cables for video are 75-ohm coaxial cable assemblies terminated with Bayonet Neill–Concelman (BNC) connectors, used to carry uncompressed HD-SDI and 3G-SDI digital video. In professional video systems the cable assembly is not an accessory—it is a critical part of the signal path. HD-SDI and 3G-SDI links depend on consistent 75-ohm impedance, controlled attenuation, and properly matched BNC connectors to preserve signal integrity, minimize reflections, and reduce jitter over distance. This guide explains SDI vs BNC terminology, how to choose the right coax (RG59, RG6, RG179) by distance, the SMPTE 424M standard, and how 3G-SDI cable length limits are set.

Data Alliance’s BNC cables made with RG59 and RG179 are compliant with the SMPTE 424M standard for 3G-SDI and HD-SDI video systems, and we supply broadcast, surveillance, industrial, and OEM applications with standard and custom BNC cable assemblies, engineering guidance, and recommendations based on distance, environment, and bandwidth.

SDI vs BNC: clearing up the terminology

“SDI” and “BNC” are often used interchangeably, but they describe different things. SDI (Serial Digital Interface) is the signal standard—the way uncompressed digital video is serialized and transmitted. BNC is the connector and cable type that physically carries that signal. In other words, an SDI video link runs over a 75-ohm BNC cable; the BNC cable is the medium, SDI is the signal. For video, the BNC cable and both connectors must be 75 ohm — routinely incompatible with the 50-ohm BNC versions used for RF. Using a 50-ohm connector on 75-ohm cable is not SMPTE-compliant and introduces impedance discontinuities.

The 75-ohm BNC cable consists of a length of 75-ohm coaxial cable terminated at both ends by 75-ohm BNC connectors. The quality of the cable is critical to the overall performance of an SMPTE-compliant video system: a failed cable can affect all channels and potentially prevent the equipment from functioning.

What is SMPTE 424M (3G-SDI)?

The Society of Motion Picture and Television Engineers (SMPTE) is a media-engineering body that has produced over 600 standards for the digital transfer of video over coaxial and fiber-optic cable. This type of video signal transfer over wired links is known as the Serial Digital Interface (SDI). The standards cover the physical-layer characteristics, image formats, encoding, payload, and timings of digital video data transfer, enabling low-latency, cost-effective uncompressed video widely used in real-time surveillance and mission-critical applications — and increasingly in defense and law-enforcement video systems.

The third generation of SDI, 3G-SDI, is a revision of the SMPTE 424M standard. It specifies 1080-pixel video at 60 frames per second with data-transfer speeds up to 3 Gbps.

SMPTE Characteristics

Color images are serially encoded and transferred using RGB tristimulus values that are linearized and then corrected to approximate the perceptual responses of human vision. Luma (derived from RGB) and chroma (color difference) component values are used in SDI video systems. SDI nomenclature delivers an active video format with a resolution of 1920 × 1080 pixels.

3G-SDI Physical Layer

3G-SDI uses a coaxial interface for the distribution of video signals in broadcast environments. Coax-based 3G-SDI networking uses Emitter-Coupled Logic (ECL), a high-speed technology with a propagation speed of under 2 nanoseconds. The system impedance is 75 ohms and the input/output voltages may be up to 0.8 volts. Transmission is unidirectional. Coaxial cables used for 3G-SDI are terminated with the BNC connectors described above.

Best cable for a 3G-SDI SMPTE 424M link

The SMPTE 424M standard does not detail the exact type of coax to be used in a BNC cable assembly, other than specifying:

On this basis, SDI uses RG-59U or RG-6 cable. RG-179 may also be used for shorter runs. The SMPTE standard states that the use of 50-ohm BNC connectors with 75-ohm cable is not compliant, though this practice has been used for lower-bandwidth composite video. The video is encoded and the serialized data is scrambled before being transmitted as a bitstream down the coax. The SDI payload includes syncing and Timing Reference Signals (TRS); active video data is transferred at speeds between 143 Mbps and 3 Gbps, with ancillary data carried in unused areas of the stream.

Other standardized physical-layer SDI components that work with BNC connector cables include:

  • SDI Transmitters / Serializers integrate signal components and audio processing for fast, power-efficient video streaming.
  • SDI Cable Drivers drive SDI signals along longer coax runs, overcoming attenuation.
  • Cable Equalizers compensate for coax losses; multi-rate and multi-channel versions are used with HD and Ultra HD equipment.
  • Reclockers retrieve a clean clock from an SDI signal affected by jitter so the video can be re-synchronized.

Why coax-based 3G-SDI needs drivers and equalizers

Passing audiovisual digital signals through cable and components degrades them (phase distortion and attenuation), with the cable acting as a low-pass filter. Signals sent through 75-ohm coax are significantly degraded beyond about 100 meters (328 feet) from the source. Attenuation increases in proportion to the square root of the signal frequency, with phase distortion equal to the attenuation. At the destination, 3G-SDI signals routinely require restoration: adaptive cable equalizers use corrective high-pass filtering to eliminate degradation. High-quality BNC connectors that correctly terminate the cable (crimping or soldering) provide a low-loss connection with minimal discontinuities — for self-assembly, crimping with the correct tool is often more reliable than soldering.

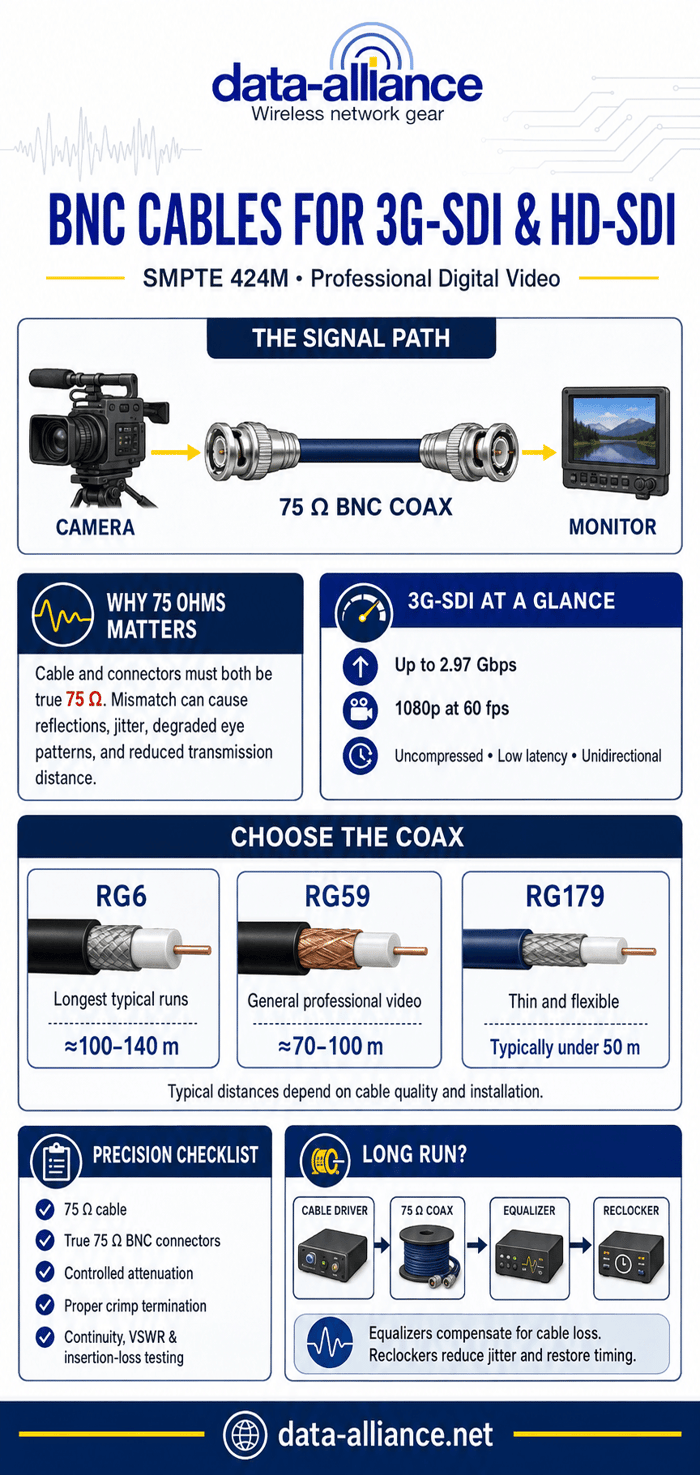

3G-SDI Cable Distance: How Far Can a BNC Video Cable Run?

Maximum transmission distance depends on cable type, connector precision, and installation quality. Typical industry guidelines for a 3G-SDI cable run:

  • RG59: up to ~70–100 meters (application dependent)
  • RG6: up to ~100–140 meters
  • RG179: typically under 50 meters

For longer runs, cable equalizers and reclockers are recommended. Data Alliance technical support can help calculate attenuation and recommend the optimal cable type for your installation. Contact technical support or request a custom quote for your run length.

Attenuation Comparison: RG6 vs RG59 vs RG179 (75 Ohm)

Frequency (MHz)

RG6 (dB/100 ft)

RG59 (dB/100 ft)

RG179 (dB/100 ft)

50

1.1

1.6

4.8

100

1.5

2.2

6.8

200

2.2

3.1

9.6

400

3.3

4.6

13.8

700

4.6

6.3

19.5

1000

5.7

7.9

24.8

1500

7.2

9.8

31.0

3000

10.5

14.5

45.0

Engineering insights for SDI applications

RG6 — lowest attenuation of the three; best for long 3G-SDI runs; larger diameter and less flexible.

RG59 — industry standard for broadcast; good balance of flexibility and loss; suitable for medium-distance HD-SDI / 3G-SDI runs.

RG179 — small diameter and highly flexible; higher attenuation; ideal for short patch cables and dense rack installations.

Important note for 3G-SDI (2.97 Gbps)

At 3G-SDI data rates, signal spectral energy extends toward 1.5–3 GHz, making high-frequency attenuation especially critical. Maximum usable distance depends on cable quality, true 75-ohm connector precision, return-loss performance, equalizer/reclocker capability, and installation practices.

Coaxial Cable Types Used in 75-Ohm BNC Cables

75-ohm panel-mount BNC jack used to terminate RG59 and RG179 video cable assemblies

RG59

RG59 is a flexible, single-shielded coaxial cable with an overall diameter of 6.15 mm (0.242 in). It has a solid copper-clad-steel inner conductor 0.56 mm (0.022 in) in diameter, surrounded by a polyethylene (PE) dielectric 3.71 mm (0.146 in) in diameter. Its outer shield is copper braid and the cable is covered in PVC jacketing. RG59 has a minimum bend radius of 101.6 mm (4 in) and an operating temperature range of -25 to +70 °C (-13 to +158 °F). The 75-ohm RG59 cable has a maximum frequency of 1 GHz, a maximum operating voltage of 2300 V, a velocity of propagation of 66%, and capacitance of 20.4 pF/ft (66.93 pF/m). The /U suffix indicates general-purpose (Utility) use.

RG179

RG179 is a flexible coaxial cable with an impedance of 75 ohms, used in BNC cables for the audiovisual applications described here. It has an overall diameter of 2.54 mm (0.1 in), with a 7-stranded copper-clad-steel conductor 0.3 mm (0.012 in) in diameter and a PTFE dielectric 1.6 mm (0.063 in) in diameter. It uses silver-plated copper-braid shielding and an FEP jacket. RG179 has a minimum bend radius of 10.16 mm (0.4 in) and an operating temperature range of -55 to +200 °C (-67 to +392 °F). Its maximum frequency is 3 GHz, operating voltage 900 V, velocity of propagation 77%, and capacitance 19.4 pF/ft (63.65 pF/m).

RoHS-compliant BNC connector cables

Our standard and custom-length BNC cables are manufactured in compliance with the Restriction of Hazardous Substances (RoHS) Directive, and comply with conflict-mineral legislation including the Conflict Minerals Regulation and Section 1502 of the Dodd-Frank Act.

Why 75-ohm precision matters in professional SDI installations

In digital video transmission, impedance mismatch creates signal reflections, increased jitter, and degraded eye patterns. Even small discontinuities between cable and connector can reduce transmission distance and compromise SMPTE 424M compliance. Data Alliance BNC cable assemblies use precision 75-ohm connectors designed for true impedance matching — not modified 50-ohm versions — ensuring consistent return-loss performance across HD-SDI and 3G-SDI bandwidths. For 3G-SDI (2.97 Gbps), performance depends on attenuation at the 1.5 GHz and 3 GHz equivalent spectral components, not just the nominal frequency.

SDI Router

SDI routers route digital video signals from a variety of inputs (DVD players, computers, cameras) to a range of displays (projectors, monitors). An SDI router may also be called a video matrix switch or video router. They are classified by the number of inputs × outputs (e.g., 256 × 256); 1K × 1K routers are not uncommon. They vary in the range of video formats and connector types they carry.

Jitter

Jitter refers to short-term timing deviations of digital signal transitions from their ideal position. Excessive jitter reduces eye opening and may cause bit errors, particularly at 3G-SDI data rates (2.97 Gbps). Jitter above a specified frequency (for HD-SDI, 100 kHz) may affect video alignment or timing; most transmissions tolerate jitter within specified limits. Impedance mismatches, poor cable quality, excessive length, and improper termination are common causes — high-quality 75-ohm BNC cable assemblies reduce deterministic jitter by minimizing reflections and distortion.

SMPTE standards require no more than a threshold level of jitter on compliant video output, with SMPTE 424M being particularly stringent. For assessment, the signal is measured at source via a 1-meter (3.28 ft) length of cable and should meet: amplitude of 800 mV ±10%; overshoot/undershoot not exceeding 10%; rise and fall time not exceeding 135 ps, with the difference between rise and fall time no more than 50 ps.

MADI

Although RG59U and similar cables are recognized as video cables, the video distribution and switching systems they connect to are not configured to relay digital audio. A wideband video splitter amplifier may be capable of splitting that can accommodate transmission of MADI data. To test coaxial-cable performance in audiovisual applications, a 200 MHz oscilloscope allows visual assessment of the digital waveform against standard parameters including signal amplitude, overshoot, undershoot, rise time, and fall time. The waveform shape relates directly to image or sound quality; standards like SMPTE and MADI specify limits on waveform distortion.

The BNC Connector

The Bayonet Neill–Concelman connector is a miniature radio-frequency connector with quick connect/disconnect functionality and a characteristic two-stud bayonet mating mechanism. Developed by Paul Neill and Carl Concelman in the 1950s, it was initially used for military communications and later diversified into telecommunications, aerospace, and digital audio/video. It is available in 50-ohm or 75-ohm versions with slight physical differences.

Physical specifications of the 75-ohm BNC connector

The BNC connector mates using a bayonet coupling mechanism: a twist-and-snap design inserts the female body (with two lugs) into the male connector body, locked by a quarter-turn of the coupling nut — fast and tool-free. A male pin inserts into a female receptacle. The connector is rated for at least 500 mating cycles. The body is typically machined brass with nickel plating; the insulator may be Teflon or Delrin; the male pin is gold- or silver-plated brass; and the female receptacle is gold-plated phosphor bronze, with a silicone rubber gasket to seal the mated connection.

Electrical specifications of the 75-ohm BNC connector

  • The 75-ohm BNC connector often has a maximum frequency of 2 GHz, lower than the 50-ohm version.
  • At 1 GHz the VSWR is 1.05.
  • Working voltage: 500 V.
  • Withstanding voltage: 1500 V.

Precision 75-ohm BNC connectors differ internally from 50-ohm versions: the dielectric geometry is optimized to maintain consistent impedance through the connector interface. Using a 50-ohm connector on 75-ohm cable introduces discontinuities that increase return loss and reduce maximum transmission distance.

50-ohm and 75-ohm BNC connectors compared for SDI video cable assemblies

Custom BNC cable assemblies — OEM & industrial applications

Data Alliance manufactures standard and custom-length BNC cable assemblies including RG59, RG6, and RG179 75-ohm options; precision 75-ohm BNC male and female connectors; right-angle BNC configurations; panel-mount / bulkhead BNC; double-shielded and low-loss variants; pre-terminated and field-installable options; and RoHS-compliant materials. We support OEM video-equipment manufacturers, surveillance integrators, broadcast studios, and defense system providers. Each assembly can be tested for continuity, impedance consistency, VSWR, insertion loss, and signal-integrity validation.

Future-Proofing Installations

Emerging standards such as 6G-SDI (5.94 Gbps) and 12G-SDI (11.88 Gbps) require even stricter return-loss and attenuation performance. Selecting higher-grade 75-ohm coaxial cable today can improve long-term system scalability.

Conclusion

Professional SDI video transmission demands precision 75-ohm cable assemblies engineered for high-data-rate digital signals. Whether using RG59 for studio installations, RG6 for extended runs, or RG179 for compact interconnects, maintaining impedance integrity and minimizing attenuation is critical for 3G-SDI and HD-SDI performance. Data Alliance provides SMPTE-compliant 75-ohm BNC cable assemblies in standard and custom configurations for broadcast, surveillance, industrial, and defense applications, with technical support for cable selection, attenuation calculation, connector matching, and system optimization.

LEARN MORE:



Frequently Asked Questions

What is the difference between SDI and BNC?

SDI (Serial Digital Interface) is the signal standard for transmitting uncompressed digital video; BNC is the connector and 75-ohm coaxial cable type that carries that SDI signal. They are not competing options — an SDI video link runs over a BNC cable. For HD-SDI and 3G-SDI, the BNC cable and both connectors must be 75 ohm, not the 50-ohm BNC used for RF.

What is the difference between 50-ohm and 75-ohm BNC cables for video?

75-ohm BNC cables are designed specifically for video transmission systems such as HD-SDI and 3G-SDI and maintain the impedance required by SMPTE standards. Using a 50-ohm connector or cable in a 75-ohm video system creates an impedance mismatch that can cause signal reflections, increased jitter, degraded eye patterns, and reduced transmission distance. Professional SDI installations require true 75-ohm cable assemblies.

Which coaxial cable is best for 3G-SDI applications?

For 3G-SDI (2.97 Gbps), RG59 is typically preferred for medium-length runs due to its lower attenuation. RG6 may be used for longer distances, while RG179 is best suited for short patch cables or compact rack interconnects. The optimal choice depends on run length, installation environment, and system equalization capability. Data Alliance technical support can assist with cable selection for your specific requirements.

How far can a 3G-SDI signal travel over RG59 or RG179?

Typical industry guidelines are: RG59 approximately 70–100 meters (application dependent); RG6 approximately 100–140 meters; and RG179 typically under 50 meters. Actual maximum distance depends on cable quality, connector precision, attenuation characteristics, and the use of cable equalizers or reclockers.

What is the length limit of a BNC video cable?

There is no single fixed limit — the usable length of a BNC video cable is set by attenuation at the signal’s high-frequency components and by return loss. As a practical starting point, a 3G-SDI run over RG59 is reliable to roughly 70–100 meters, with RG6 extending further and RG179 much shorter. Cable drivers, equalizers, and reclockers extend these limits, while lower-bandwidth HD-SDI and composite video tolerate longer runs than 3G-SDI.

Why is maintaining 75-ohm impedance critical in SDI systems?

SDI signals operate at high data rates and are sensitive to impedance discontinuities. Any mismatch between cable and connectors can cause reflections, return-loss issues, and increased jitter. Maintaining consistent 75-ohm impedance throughout the signal path ensures optimal signal integrity, reduced distortion, and compliance with SMPTE 424M.

What causes jitter in HD-SDI and 3G-SDI systems?

Jitter refers to timing deviations in digital signal transitions. Common causes include impedance mismatches, poor cable quality, excessive cable length, improper termination, and high attenuation at critical frequencies. High-quality 75-ohm BNC cable assemblies minimize deterministic jitter by preserving signal integrity and reducing reflections.

Can BNC cable assemblies be customized for OEM or industrial applications?

Yes. Data Alliance offers standard and custom BNC cable assemblies, including RG59, RG6, and RG179 options; precision 75-ohm BNC male and female connectors; right-angle and bulkhead configurations; double-shielded and low-loss variants; and custom lengths and pre-terminated assemblies. These support broadcast studios, surveillance integrators, defense systems, and OEM video-equipment manufacturers.

How can I test the performance of a BNC cable for SDI video?

Cable performance can be evaluated using an oscilloscope to measure signal amplitude, overshoot and undershoot, rise and fall time, and waveform integrity. Advanced testing may include impedance verification, VSWR, insertion loss, and return-loss measurements. Proper crimping with calibrated tools and precision 75-ohm connectors are critical to long-term reliability.
