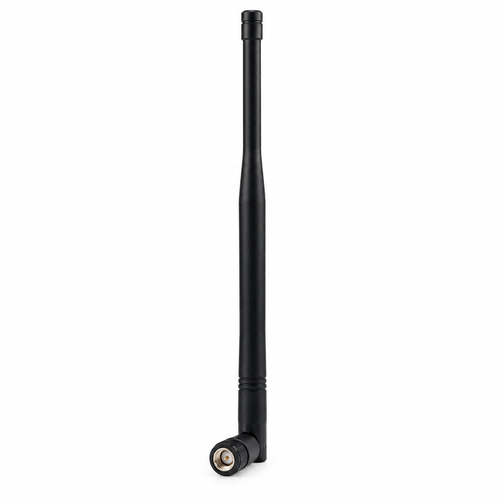

Antenna 2.4GHz 7dBi Omni-Directional WiFi Bluetooth w/ RP-SMA
- SKU:
- A2D7
- Availability:
- In stock
- Weight:
- 0.12 LBS
Data Alliance
Omni-Directional Antenna WiFi w/ RP-SMA Connector
Omni Directional Antenna with articulating RP-SMA (male) connector for 2.4GHz WiFi / wireless networks, Bluetooth, Zigbee.
Omni directional dipole antenna: Radiates signal with a beam of 360 degrees; also receives signal from 360 degrees around it.
Compatibility with wireless standards & applications: This omni directional antenna's range of frequency band compatibility in the 2.4 ~ 2.5GHz frequency band range, its its low broadband VSWR at <1.8 (lower VSWR is better), and impedance matching to 50 Ohm gear, makes it suitable and compliant for all the following applications:
- IoT wireless & M2M: Bluetooth, ZigBee, Wi-Fi HaLow and ISM. Since it is vertically polarized, it is compatible with many machine to machine communication applications, remote monitoring, and telemetry applications.
- 2.4GHz WiFi applications: 802.11N, 802.11G, 802.11B, 802.11AH.
- Compatible with Bluetooth devices, Wireless Access Points & other wireless devices that have RP-SMA antenna jacks
- As Bluetooth antenna: Send or receive signal to devices in all directions (360-degree horizontal beamwidth)
- As client antenna: Connect to access points in any direction. Portable size: Easily fits in laptop case.
SPECIFICATIONS:
| Connector | RP-SMA male |
| Gain | 7 dBi |
| Type | Omnidirectional |
| Polarization | Linear Vertical |
| VSWR | < 1.8 |
| Frequency | 2.5-2.7GHz |
| Weight | 45g (1.6oz) |
| Size | L299 x W13.7 x H13.7mm (11.7 x .5 x .5 inches) |
| Antenna Color | Black |
The system exhibits solid and reliable performance in the 2.50–2.70 GHz band. The best matching is observed around 2.538 GHz, where the parameters confirm outstanding coupling efficiency. Overall, the values indicate that the device is viable and functional for applications within this range, offering stability and predictability.
ROHS 3 & REACH compliant: Antenna, cable and connector are all compliant with Regulatory Requirements.
RP-SMA Connector Characteristics:
- RP SMA Features and Key Information
- Mounts directly onto RP-SMA(female) connector of access point, bridge, USB WiFi adapter, or booster. See other magnetic bases that fit this antenna and have antenna cables with other types of connectors.
- Articulating (Bendable) Right Angle: This antenna can be angled up to 90 degrees (articulating right angle) or positioned straight. The articulating (bendable) right-angle isn’t weatherproof: Water can seep into the angled part of the antenna. Articulating right-angle antennas are therefore recommendable for indoor use or protected outdoors, i.e. under an eave. If you need a weatherproof dipole antenna, you should choose either a straight dipole or one with a fixed right angle. See our weatherproof antennas .
Dipole Antennas: 2.4GHz
RELATED PRODUCTS & PAGES:
- Antenna Mounts & Brackets
- Antennas: How to choose
- Directional Antennas
- Omni-Directional Antennas
- Wireless Frequencies: 2.4GHz, 5GHz, 900MHz, WiMax
- RP-SMA Cables, Antennas and Connectors
All of our antennas pass QC test before we ship them.
