RP-TNC-female to RP-SMA-male Cable: : 1-FT Double-Shielded Outdoor Indoor


In stock
0.05 LBS

ANTENNA CABLE: RP-TNC female connector to RP-SMA male: 12 inch cable

One end has an RP-TNC female connector with a bulkhead (nut and washer - like the photo on the right, above) and the other end has a RP-SMA-male connector.

This antenna cable is compliant for wireless / WiFi networks: 802.11N, AC, G, A, B. 900MHz, 2.4GHz & 5GHz applications, as well as any other frequency between 0 and 18GHz.

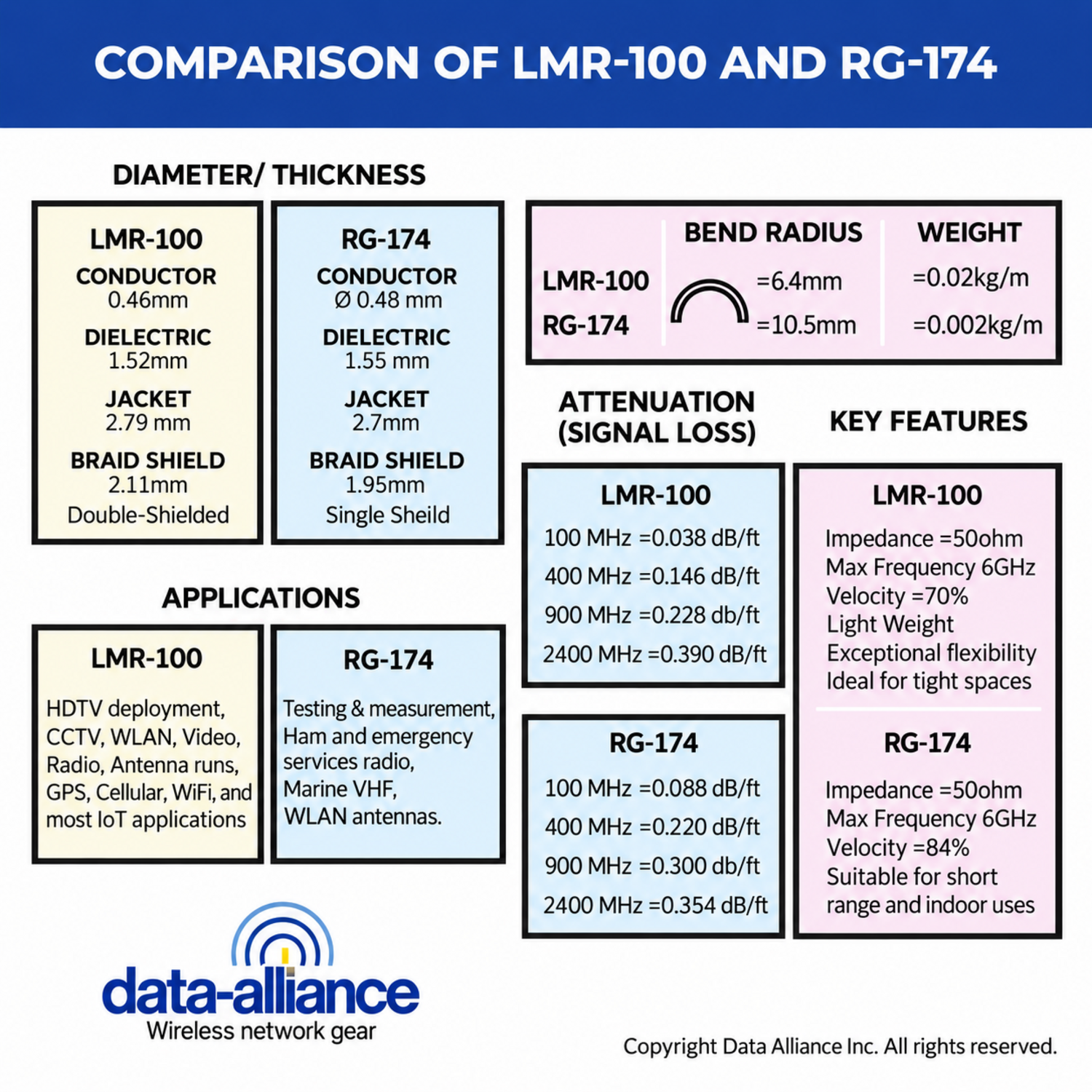

10 inch (25 cm) cable ("pigtail"): Cable type is LMR100, which is a low-loss, flexible cable. Cable is double-shielded, low-loss and very flexible. The cable-type is equivalent or better than LMR100: Coax with black jacket has the same or better signal-loss-per-meter and flexibility as LMR100, and less attenuation (signal loss) than RG174.

The temperature range for operational use of this 100-series coax and the cable assembly, is: -22 F ~ +185 F (-30 C ~ +85 C)

Compatible with all Helium miners used in North America, including Bobcat miners, Sensecap miners and all other Helium LongFi miners, as are all of our antenna cables and adapters with RP-SMA-male connectors

Gender of RP-TNC (Reverse Polarity [RP] TNC) & RP-SMA connectors is counter-intuitive

RP-SMA is a round screw-type connector, that is rated for frequencies from the lowest up to 18GHz.

RP-TNC is a round screw-type connector. RP-TNC is similar to BNC except that whereas BNC has a slotted mating collar, TNC has a screw-down type connector. RP-TNC's screw-down connector performs better than BNC in the microwave spectrum.

Brand new, high quality connectors, precision machined in ISO 9001 facilities.

Lead-free and ROHS compliant: The entire product is ROHS compliant (connectors and cable).

Data Alliance's high-quality soldered terminations of RP-SMA connectors with soldering provide a low-loss connection with discontinuities kept to a minimum.
