RP-TNC-female to RP-SMA-female Cable: Outdoor/Indoor

$4.68
Brand:

Availability:
In stock
Weight:
0.06 LBS
Write a Review

RP-TNC-female to RP-SMA-female Cable

ANTENNA CABLE: RP-TNC female connector To RP-SMA female: 12 inch cable

One end has an RP-TNC female connector with a bulkhead (nut and washer - like the photo on the right, above) and the other end has a RP-SMA-female connector with a bulkhead.

10 inch (25 cm) cable ("pigtail"): Cable is double-shielded, low-loss and very flexible. The cable-type is equivalent or better than LMR100: Coax with black jacket has the same or better signal-loss-per-meter and flexibility as LMR100, and less attenuation (signal loss) than RG174.

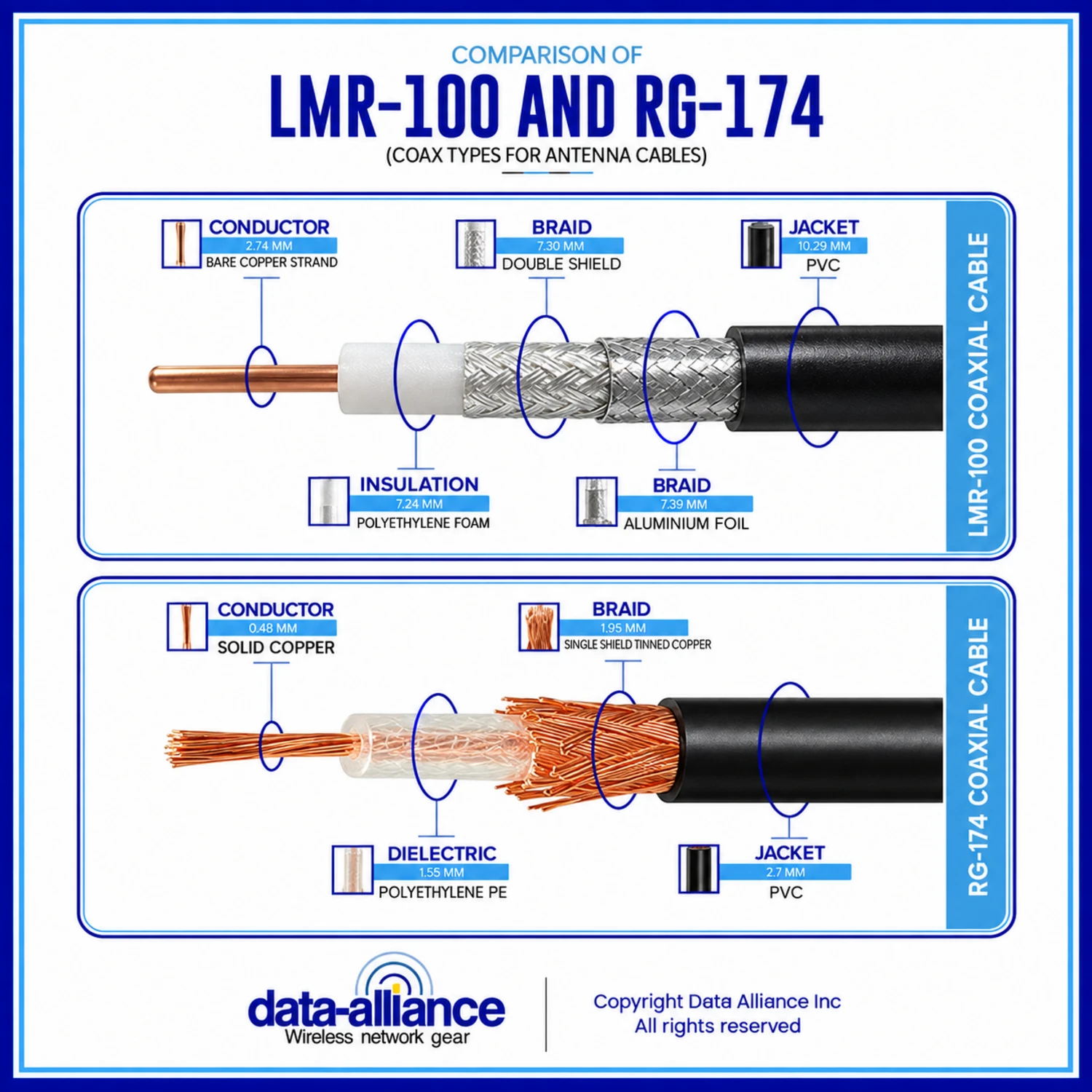

Comparison of antenna cables LMR-100 and RG-174

  • The temperature range for operational use of this 100-series coax and the cable assembly, is: -22 F ~ +185 F (-30 C ~ +85 C)

RP-SMA is a round screw-type connector, that is rated for frequencies from the lowest up to 18GHz: This antenna cable is suitable for wireless / WiFi networks: Wi-Fi 6, WiFi 6E, 802.11AX, 802.11N, AC, G, A, B. 900MHz, 2.4GHz & 5GHz applications, as well as any other frequency between 0 and 18GHz.

RP-TNC: Round screw-type connector. RP-TNC is similar to BNC except that whereas BNC has a slotted mating collar, TNC has a screw-down type connector. RP-TNC's screw-down connector performs better than BNC in the microwave spectrum. Brand new, high quality connectors from ISO 9001 facilities.



Gender of RP-TNC (Reverse Polarity [RP] TNC) & RP-SMA connectors is counter-intuitive:

RP-TNC Male Fits Linksys WRT54G, WRT54GL, BEFW11S4, WAP54G, WAP11, WSB24, WRT54GS and all 802.11bg, 802.11ac or 802.11n RP-TNC device.

Lead-free and compliant with RoHS and REACH: All of our antenna cables and RF adapters are RoHS compliant and REACH compliant.

Similar Products:



Impedance-matched to 50 ohm antennas and cables.

Data Alliance's high-quality soldered terminations of RP-SMA connectors with soldering provide a low-loss connection with discontinuities kept to a minimum.
