Antenna 824~960/1710~2170MHz 3dBi SMA or RP-SMA
- SKU:
- AG821S
- Availability:
- In stock
- Weight:
- 1.00 LBS
Data Alliance
Antenna 824~960/1710~2170MHz 3dBi SMA or RP-SMA
Compatibility with wireless standards & applications:
- LTE / 4G & GSM /3G: Broadband design for 4G / LTE and 3G / GSM systems: 4G networks
- US domestic LTE: 700 MHz band: AT&T Mobility, Verizon.
- Global LTE: 2600 MHz band (2.6GHz)
- GSM bands 824-894 and 1850.2 - 1909.8 (US and Latin America / Mexico)
- Compatible with Wi-Fi HaLow devices, as are all antennas in our Wi-Fi HaLow Antennas subcategory
- LoRa / LoRaWAN access points. Wi-Fi HaLow.
- 900MHz ISM Band. Can also be made to operate on other VHF and UHF frequencies within the ISM frequency bands.
- Non Line of Sight (NLOS): 900 MHz band is best for passing through trees and forests.
This omni directional antenna's range of frequency band compatibility in the 824~960/1710~2170MHz frequency band range, its low broadband VSWR, and impedance matching to 50 Ohm gear, makes it suitable and compliant for all the above applications.
Features & applications
- As access point antenna: Provides signal to clients in any direction (360-degree horizontal beamwidth)
- As client antenna: Connect to an access point in any direction
- Capable of extending your wireless range up to 300 meters.
- Adhesive Mount is included for wall or pole mounting.
- Suitable for outdoor or indoor wireless gear with RP-SMA-female or SMA-female connector.
|
Item |
Specifications |
||
|
824~960/1710~2170MHz |
|||
|
Linear |
|||
|
3.0dBi（Zenith） |
|||
|
＜2.5 |
|||
|
50Ω |
|||
|
Mechanical |
RG174 |
||
|
Environmental |
Operating Temperature |
-40℃~+85℃ |
|
|
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
||
|
Environmentally Friendly |
ROHS Compliant |
||

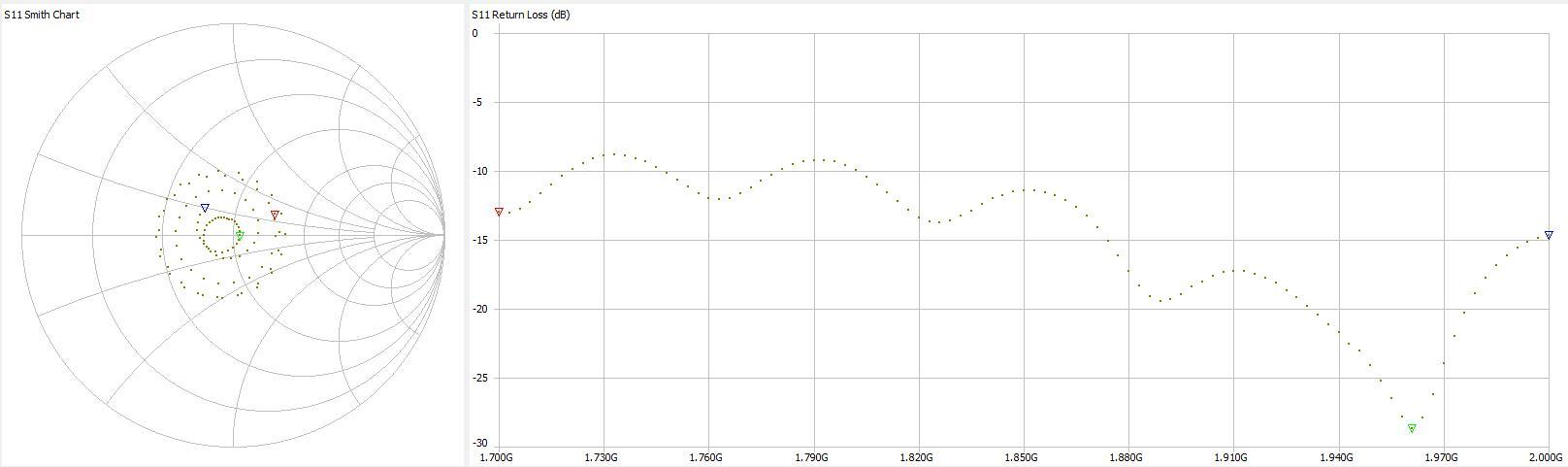

The evaluated antenna demonstrates excellent performance within the 1.7 to 2.0 GHz range, with outstanding impedance matching at 1.961 GHz. Its behavior at 2.0 GHz remains highly acceptable, while at 1.7 GHz it is functional for less demanding applications. Overall, the device offers reliability and efficiency for communications across this frequency range.
ROHS 3 & REACH compliant: Antenna, cable and connector are all compliant with ROHS 3 and REACH.
RP-SMA and SMA Connector Characteristics:
- RP SMA and SMA male Characteristics and Key Information
- RP SMA and SMA male Connector Materials Composition
- Mounts directly onto SMA & RP-SMA (female) connector of access point, bridge , USB WiFi adapter, or booster. See other magnetic bases that fit this antenna and have antenna cables with other types of connectors .
RELATED PRODUCTS & PAGES:
- Antenna Mounts & Brackets
- Antennas: How to choose
- Directional Antennas
- Omni-Directional Antennas
- Wireless Frequencies: 2.4GHz, 5GHz, 900MHz, WiMax
- RP-SMA Cables, Antennas and Connectors
- SMA Cables & Adapters
All of our antennas pass QC test before we ship them.
