MMCX To RP-SMA-female Cable: 2-in, 4-in, 5-in, 7-in, 10-in, 1-FT, 14-in, 16-in, 18-in, 22-in
- SKU:
- MMCXra2iRSf
- Availability:
- In stock
- Weight:
- 0.03 LBS
Data Alliance
Antenna cable: MMCX connector with right-angle to RP-SMA-female (bulkhead): The length refers to the length of the cable between the connectors (not including the connectors).
See other lengths of MMCX to RP SMA Cables and MMCX cables with male RP-SMA

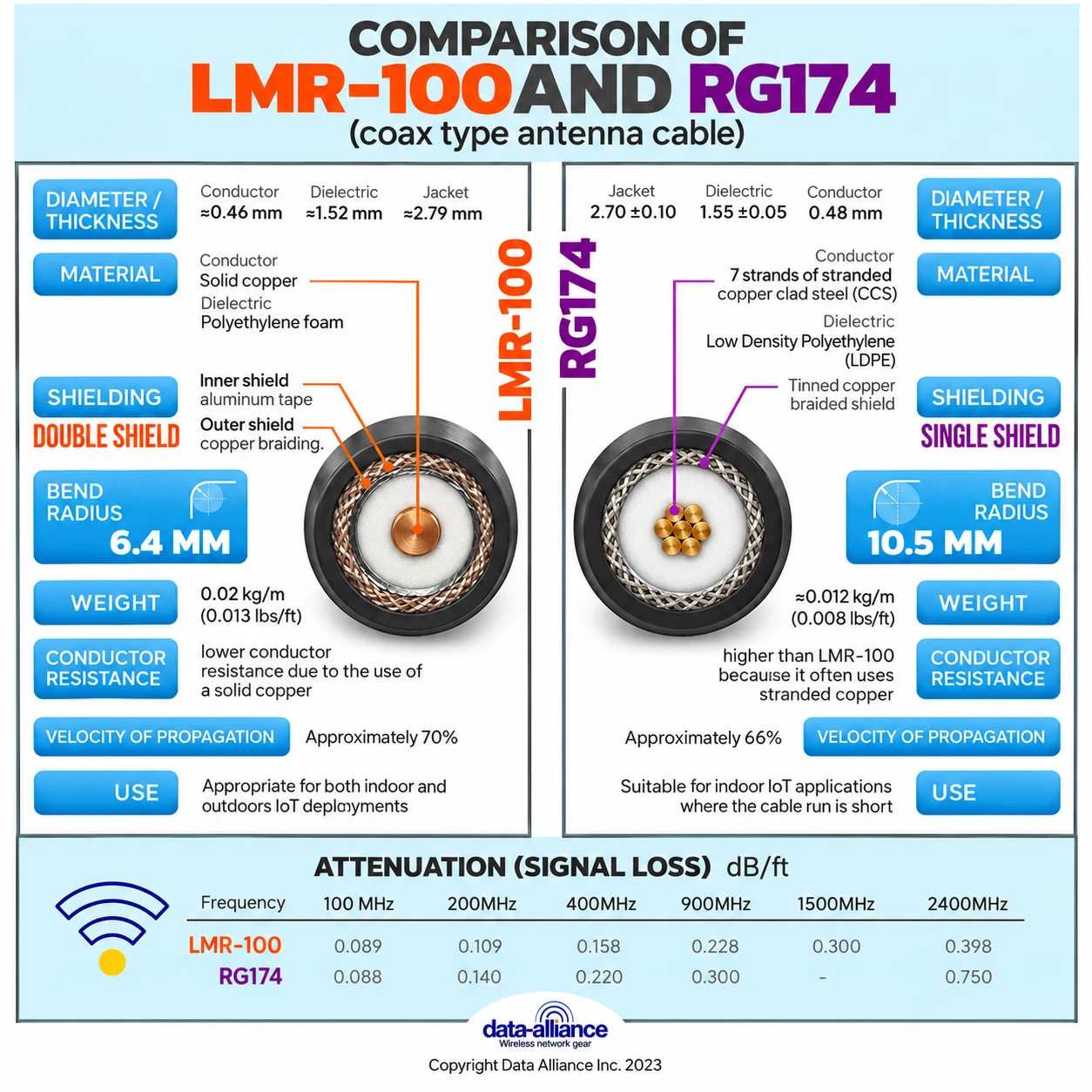

The cable is double-shielded, low-loss and very flexible/easily bendable. The cable-type is equivalent or better than LMR100: Coax with black jacket has the same or better signal-loss-per-meter and flexibility as LMR100, and less attenuation (signal loss) than RG174 and RG178. The higher quality of the cable of this antenna translates into lower loss/better performance. Cable is equivalent to LMR-100 in thickness, and is rated for outdoor use and is also suitable for indoor use.
The temperature range for operational use of this 100-series coax and the cable assembly, is: -22 F ~ +185 F (-30 C ~ +85 C)
For all wireless / WiFi applications, including BlueTooth, ZigBee and Cellular, and 802.11N, 802.11G, 802.11B, 802.11AC, 802.11A, WiMax, 3G & 4G. 2.4GHz or 5GHz applications

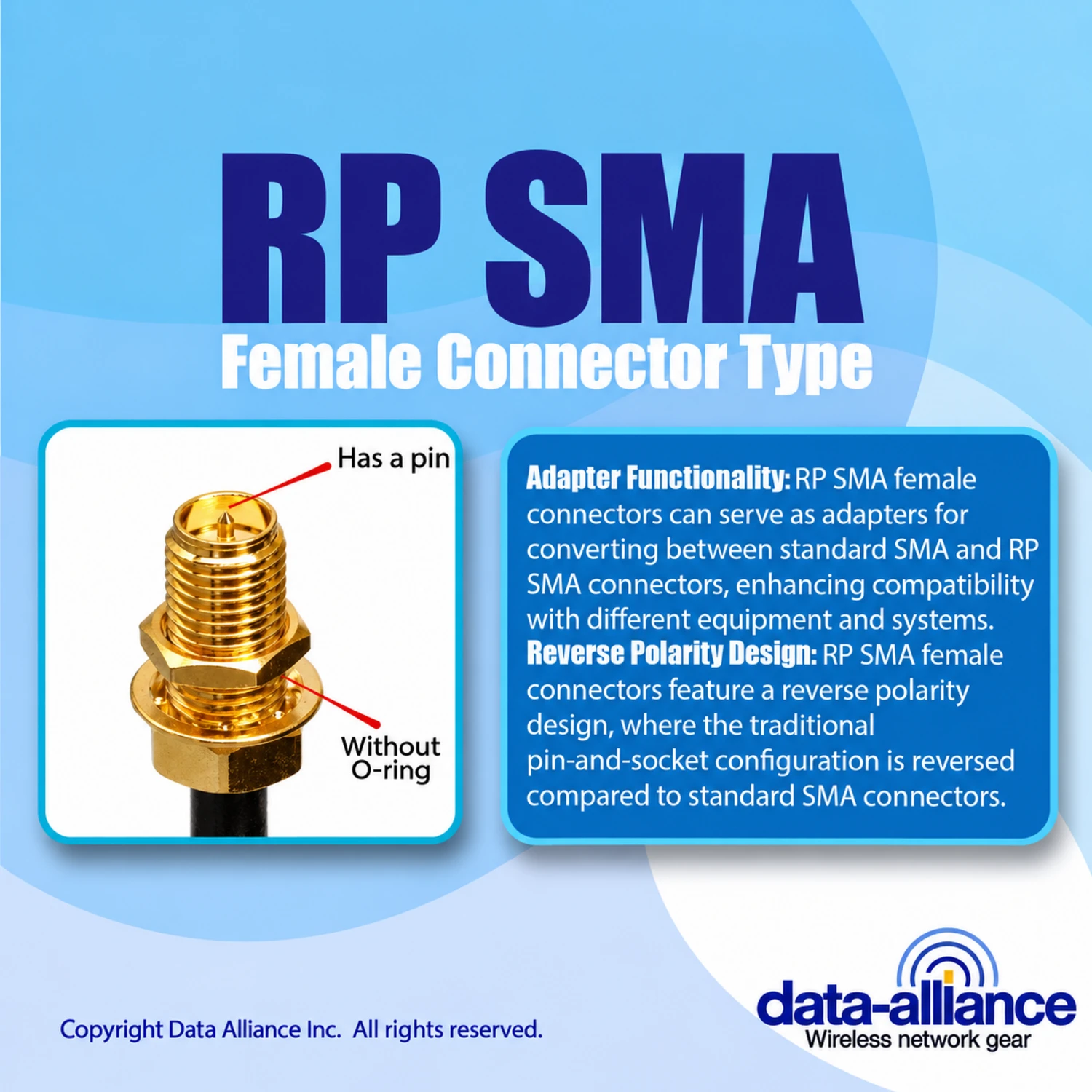

RP-SMA female connector includes a bulkhead nut and washer:
- You can use this to mount the connector (and thus the cable) on the wall of an enclosure (to weatherproof the cable connection), case or Printed Circuit Bard (PCB).
- Weatherproofing: Seal the hole where the female connector is mounted, by placing an O-ring between the wall of the enclosure and the bulkhead nut & washer on the female connector.
- The length of our standard RP-SMA-female connector (threaded part) is 3/8 inches. We have a longer option: 14.5mm, which we can use for special orders.
RP-SMA diameter:
- Hex nut accommodates a screw/bolt with 5/16" nominal outer diameter
- In other words, the inside diameter of the hex bolt is 5/16"
RP-SMA is a round screw-type connector, with medium-sized, threaded coupling connectors that are rated for frequencies from the lowest (DC) up to 18GHz.
RP-SMA Connector Composition: Our RP-SMA connectors are precision machined and gold-plated for low loss.
- Center Contact: Beryllium Copper, Gold Plated
- Connector Body: Brass, Gold Plated
- Crimp Ferrule: Copper, Nickel Plated
- Insulators: PTFE
Lead-free and compliant with RoHS and REACH: All of our antenna cables and RF adapters are RoHS compliant and REACH compliant.
Data Alliance's high-quality soldered terminations of RP-SMA connectors with soldering provide a low-loss connection with discontinuities kept to a minimum.
COMPATIBILITY
MMCX connector is compatible with (fits) various RouterBoards, WiFi cards & GPS units that have an MMCX antenna jack
Gender of RP-SMA-connector is counter-intuitive. RP-SMA female connector is also called "RP-SMA jack".
