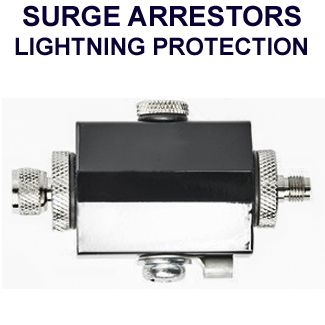

Lightning Surge Arrestor: 0 to 6GHz N-female to N-female connectors
Lightning Surge Arrestor
- For wireless / WiFi networks: Works in all frequency bands from 0 to 6GHz band.
- Lightning Protector for Antennas of the highest quality in the industry, at a very reasonable price - providing extreme value.
- This protector provides great protection from 0 to 6 GHz with N-Female connector on both ends.
- It's the high quality body material is 100% nickel plated brass unlike common aluminum body material protection devices on the market.
- Normally protects with 90 VDC breakdown voltages which are more than sufficient for wireless LAN installations.
- Nickel-plated brass body for enhanced corrosion resistance: Nickel plating is the most weather-resistant, corrosion-resistant metal plating.
Ground wire needed (not included): 26 AWG ESD drain wire.
| SPECIFICATIONS | |
| Frequency Range | 1~6GHz |
| V.S.W.R | |
| Insertion Loss | 0.2dB |
| Impedance | 50 |
| Insulation | 10,000M |
| Max With Standing Current@8/20uS | 10KA |
| DC Breakdown Voltage@100V/S | 90V DC |
| Power | 50W |
| Electrode Capacitance | 1.5pF |
| Weight | 130g |
| Dimension | 63x40x25 mm |
| Connector | N female to N female |
Related Lightning Surge Protectors:
The ground stud is M5 x 0.75:
- The head of the stud-screw (hex/flange - not the stud): Size is 8mm in diameter.
- The threaded part of the stud is 8mm major diameter, fine-pitch 0.75mm thread.
Ring Terminals (not included) recommendation: Use M5 ring terminals (hole ~8.4 mm). If you only have inch-sized lugs, the closest match is 5/16″ (7.94 mm) — it fits an M8 post. ad diameter: the hex/flange head size—not the stud size. Practical choices Ring terminal: M8 (or 5/16″) stud size, barrel for 10–12 AWG wire (heat-shrink style for outdoors).
Nut/washer (not included) recommendation: Must be M5×0.75 fine-pitch (an M5×1.25 nut will not fit). Quick size map #10 stud ≈ 4.8 mm (too small) 1/4″ stud ≈ 6.35 mm (too small) 5/16″ stud ≈ 7.94 mm (good match to M5).
