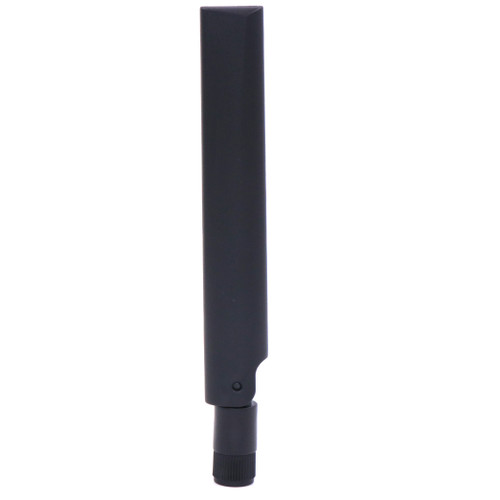

Antenna 900MHz Multiband Omnidirectional 3dBi w/ RP-SMA

Multiband Antenna w/ RP-SMA Right-Angle (articulating)

Covers all of these frequency bands, with the gain (dBi) indicated here in dBi:

• • 600~960MHZ 3.0dBi
  • 1710~2170MHZ 3.5dBi
  • 2170~2700MHZ 3.7dBi
  • 3200~3800MHZ 4.3dBi

• Flexible Mounting – Features a hinged, adjustable design for vertical or angled deployment

• Connector: RP-SMA male.  We can provide with SMA for large orders.

Compact, wideband antenna covering 600–3800 MHz for LTE/4G, LTE-M, NB-IoT, Cat-M1, 5G Sub-6, CBRS, and private-cellular deployments. Tuned for strong, balanced performance across low, mid, and high bands, it’s ideal for gateways, routers, asset trackers, and embedded M2M/IoT devices.

• True wideband coverage: one antenna for 600–960, 1710–2170, 2170–2700, and 3200–3800 MHz.
• Solid peak gain by band: 3.0 dBi (600–960), 3.5 dBi (1710–2170), 3.7 dBi (2170–2700), 4.3 dBi (3200–3800).
• 50 Ω matched with VSWR ≤ 2.5:1 (max) and return loss ≈ −10 dB.
• Ultra-reliable radome: UV-resistant PC+ABS for outdoor-capable durability; operating temp −40 °C to +80 °C.

Band Efficiency

Representative radiation efficiency across key bands helps explain the stable link quality:

• ~49% @ 600 MHz; 57.3% @ 698 MHz; 94.6% @ 960 MHz
• 65.9% @ 1710 MHz; 60% @ 2170 MHz; 56.3% @ 2700 MHz
• 76.7% @ 3200 MHz; 63.9% @ 3500 MHz; 63.5% @ 3800 MHz

Radiation Patterns

3D far-field patterns are available for 600, 698, 960, 1710, 2170, 2700, 3200, 3500, and 3800 MHz. Use these to validate enclosure placement and polarization strategy.

RP-SMA Connector Characteristics:

• RP SMA and SMA Connector Material Composition
• RP SMA and SMA Features and Key Information

Dipole Antennas: 900MHz
