4G LTE Fiberglass Antenna 698-2700 MHz w/Wall Mount, SMA

Outdoor fiberglass 4G antenna w/ wall bracket

High-Performance Dual-Band LTE Fiberglass Antenna for Rugged Outdoor Use

• Mounting kit included: Bracket and screws to mount on a wall or other vertical surface.
• Rugged Outdoor Build – Heavy-duty fiberglass radome with weatherproof construction for impact resistance and UV protection.
• High Gain 6.5 dBi – Boosts signal range with 360° omnidirectional coverage for consistent connectivity
• Cable to SMA male:  Customizable for large orders.  RG58 coax.
• Wideband 698-2700 MHz coverage
• Supports LTE, 4G, 3G, LTE-M, and NB-IoT
• Durable outdoor fiberglass radome
• Ideal for industrial IoT, telemetry, and cellular networking applications

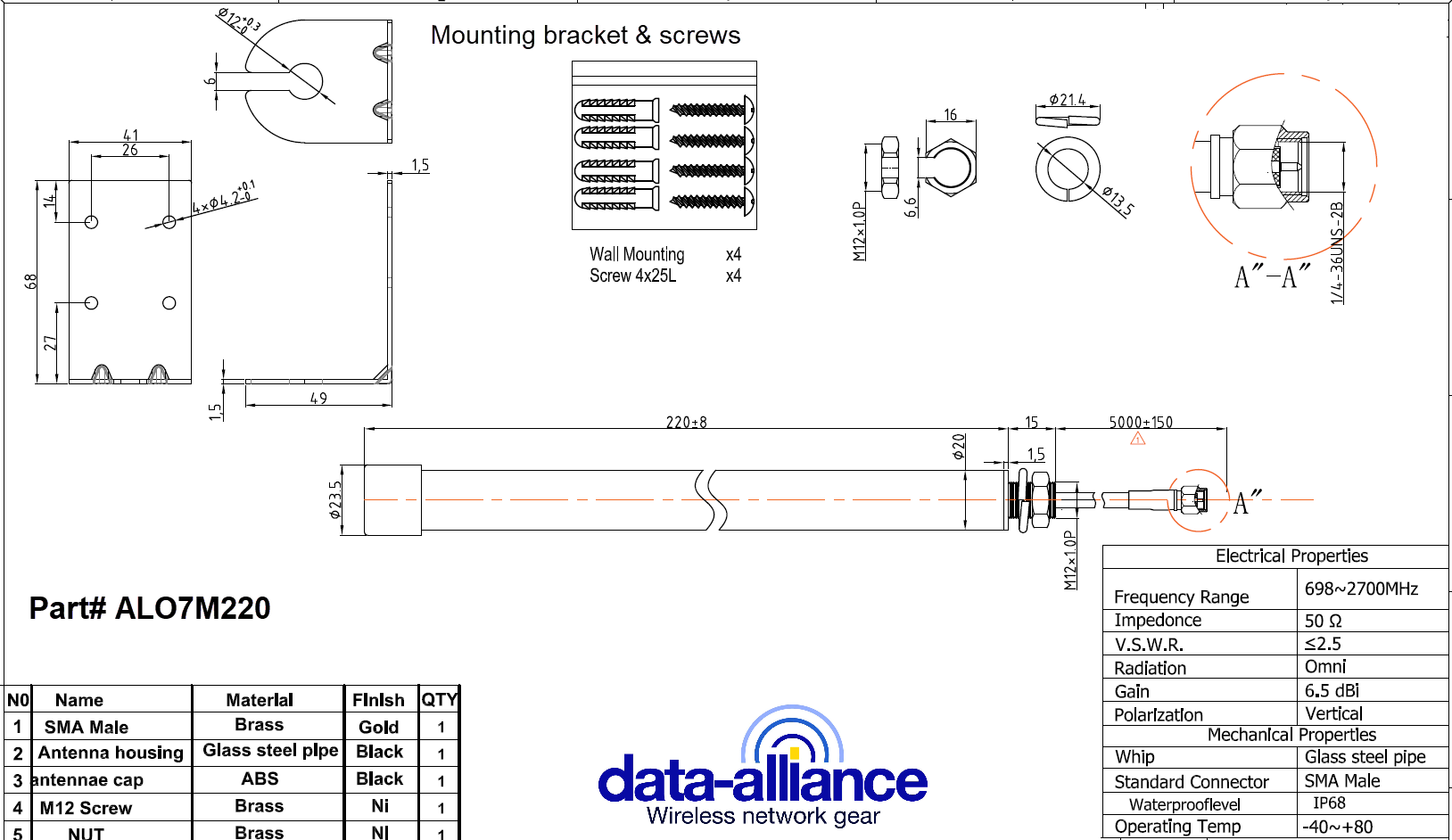

Key Specifications

• Frequency range: 698-2700 MHz
• Nominal impedance: 50 Ohms
• VSWR: 2.0:1 maximum
• Omnidirectional performance
• 50-ohm impedance
• Operates from -40°C to +80°C
• RG58 coaxial cable to SMA male connector:  Length and connector type are customizable for large orders.

Complete Installation Kit

Unlike antennas that require separate mounting hardware, this model includes the components needed for installation.

Included components:

• Outdoor fiberglass antenna
• Wall-mount bracket
• Four wall anchors
• Four mounting screws
• RG58 coaxial cable to SMA male connector

The supplied mounting bracket allows the antenna to be securely installed on walls, poles, equipment enclosures, cabinets, and other structures.

Low-Loss RF Performance

The antenna system is designed around a standard 50-ohm impedance for compatibility with cellular routers, industrial modems, gateways, and wireless communication equipment.

The antenna provides efficient operation across multiple frequency bands, helping support dependable cellular communications in both urban and remote environments.

Ideal for Industrial and IoT Applications

This antenna is particularly well suited for industrial networking projects where reliability and environmental durability are critical.

Common deployments include:

• Remote tank monitoring
• Water and wastewater systems
• Pipeline monitoring
• Solar energy systems
• Environmental sensors
• Smart city infrastructure
• Agricultural monitoring
• Industrial automation
• Cellular backup communications

Whether you are deploying a remote monitoring system, installing an industrial cellular gateway, or improving LTE connectivity for a router or modem, this outdoor fiberglass antenna provides a rugged and dependable solution for long-range wireless communications.
