600–6000 MHz Wideband LPDA Antenna – 4G LTE / 5G, 50 Ohm
- SKU:
- ALP213-RP
- Availability:
- In stock
- Weight:
- 0.32 LBS
Data Alliance
600–6000 MHz Wideband LPDA Antenna – 4G LTE / 5G, 50 Ohm
The 600–6000 MHz Wideband LPDA Antenna provides broad frequency coverage in a compact, directional printed-circuit design. Engineered for RF communication and testing applications, this log periodic antenna operates across frequencies used by many 4G LTE, 5G, and other wireless systems.
With a frequency range of 600 MHz to 6 GHz, the antenna supports a variety of wireless integration and measurement applications without requiring multiple antennas for individual frequency ranges.
Its 50-ohm nominal impedance makes it suitable for compatible RF equipment and transmission systems. Published gain measurements range from 2.8 dBi to 7.3 dBi at the specified test frequencies, with peak documented gain of 7.3 dBi at 2700 MHz.

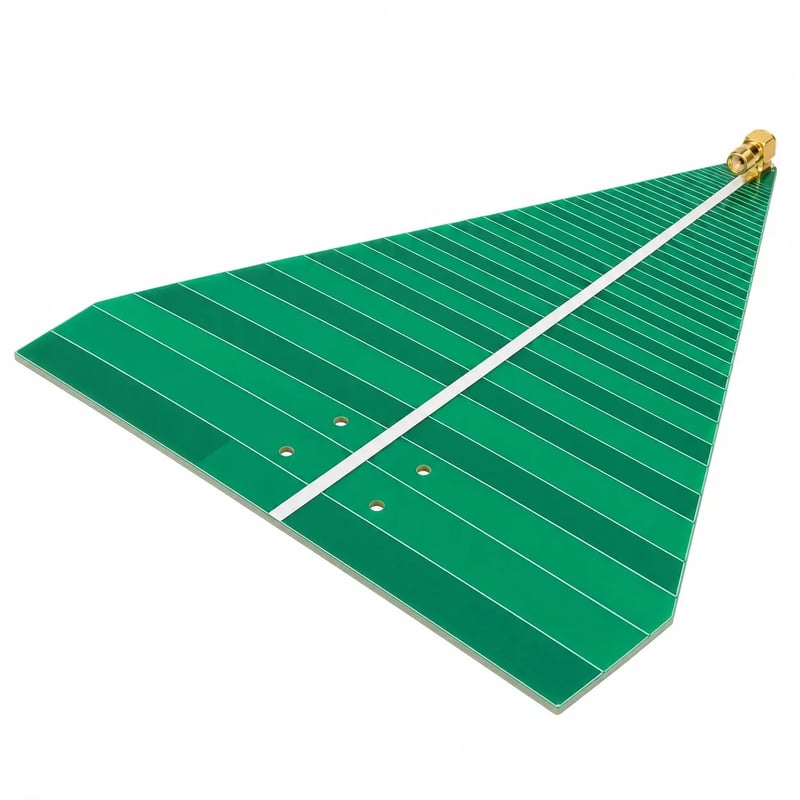

The antenna uses an FR4 printed-circuit construction with a tapered profile and integrated conductive elements. Its compact physical dimensions make it a practical choice for equipment development, wireless communications experimentation, and RF laboratory setups.

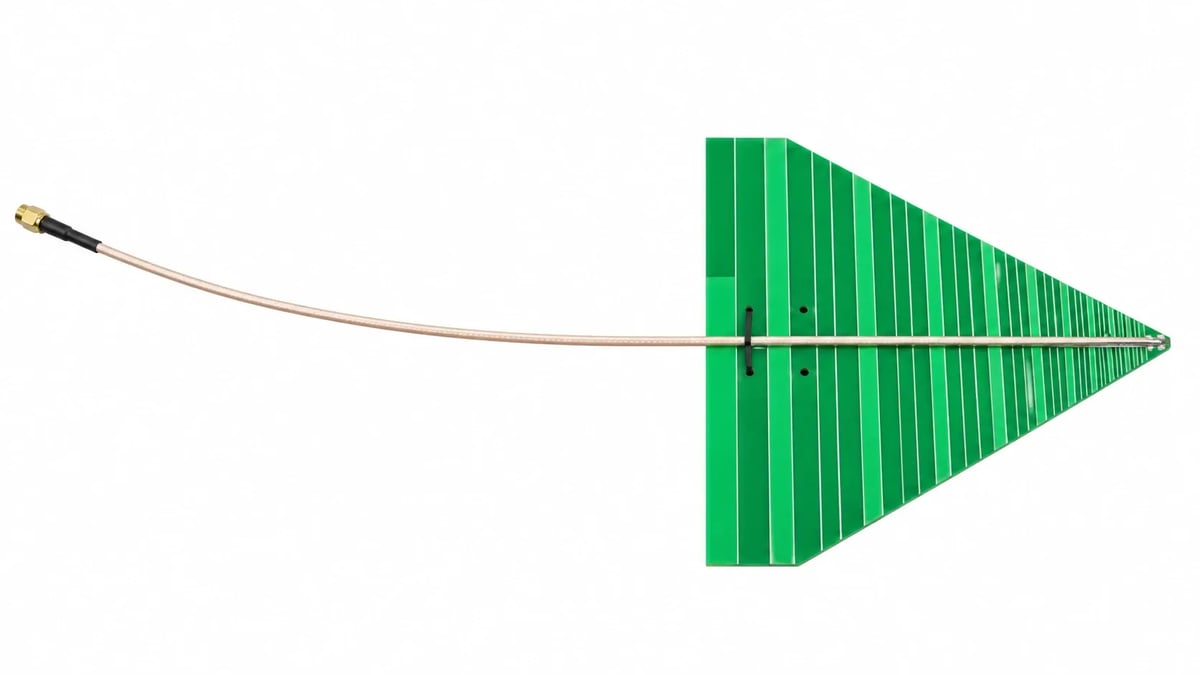

The mechanical drawing identifies a coaxial cable connection with an SMA male connector. Because the electrical specification also lists SMA female connector options, buyers should verify the supplied connector configuration before ordering.
Whether used for wireless system evaluation, broadband RF experimentation, or compatible cellular communication equipment, this LPDA antenna provides a versatile solution where wide frequency coverage and directional antenna characteristics are required.
Key Features
-
Broad 600–6000 MHz operating frequency range.
-
Suitable for compatible 4G LTE and 5G frequency bands.
-
Directional log periodic antenna architecture.
-
50-ohm nominal impedance.
-
Documented peak gain of 7.3 dBi at 2700 MHz.
-
Printed-circuit FR4 construction.
-
Compact tapered antenna design.
-
Coaxial cable feed with SMA connector configurations documented.
Technical Specifications
Parameter
Specification
Antenna Type
Log Periodic Dipole Array (LPDA)
Frequency Range
600–6000 MHz
Nominal Impedance
50 Ohms

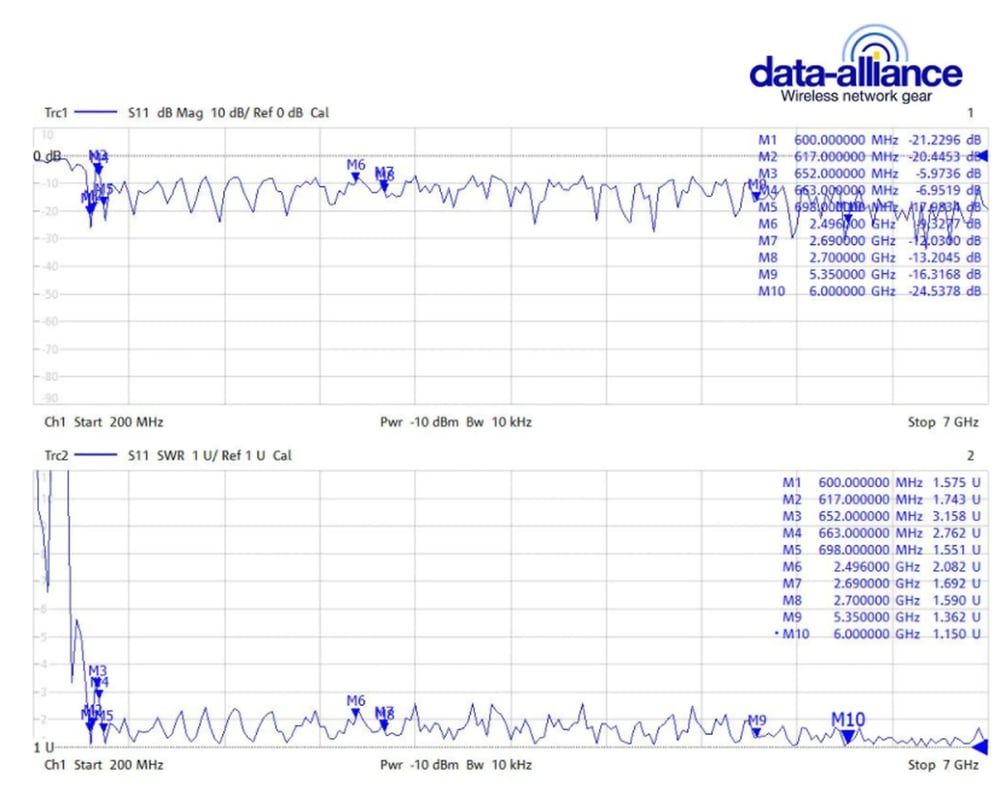

Maximum Specified VSWR
2.0:1
Peak Documented Gain
7.3 dBi at 2700 MHz
Antenna Board Material
FR4
Antenna Board Width
198.5 mm
Antenna Board Length
200 mm
Overall Length in Drawing
270 ± 5 mm
Connector
SMA male in drawing; SMA female options in specifications
Coaxial Cable
RG316 shown in drawing; RG141 also listed
Operating Temperature
−40°C to +80°C
Antenna Appearance
Green PCB in supplied product photographs
Published RF gain and efficiency
|
Frequency |
Gain |
Efficiency |
|---|---|---|
|
600 MHz |
2.99 dBi |
45% |
|
617 MHz |
3.32 dBi |
44% |
|
960 MHz |
5.66 dBi |
63% |
|
1710 MHz |
6.0 dBi |
61% |
|
2170 MHz |
5.0 dBi |
57% |
|
2700 MHz |
7.3 dBi |
76% |
|
3300 MHz |
3.8 dBi |
45% |
|
3800 MHz |
4.8 dBi |
54% |
|
5000 MHz |
3.3 dBi |
41% |
|
5950 MHz |
2.8 dBi |
46% |
Applications
-
4G LTE and 5G wireless system evaluation.
-
Broadband RF testing and experimentation.
-
Antenna and RF equipment development.
-
Wireless communication laboratory applications.
-
Compatible cellular RF equipment integration.
Actual compatibility depends on the equipment, supported frequency bands, antenna ports, and connector configuration.
