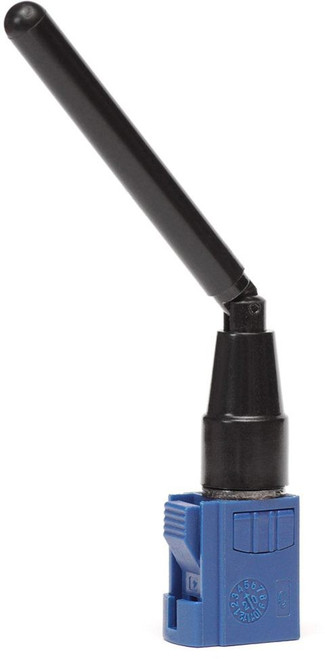

GNSS Antenna w/ Fakra-C Connector Mount | GPS, GLONASS, Galileo
- SKU:
- AGPSFAK
- Availability:
- Available in May 2026
- Weight:
- 0.15 LBS
Data Alliance
Key Features
-
Multi-constellation support: GPS, GLONASS, Galileo, BeiDou, QZSS
-
Optimized GNSS frequency coverage around 1561–1606 MHz
-
High efficiency (~75% typical) for strong satellite signal reception
-
Compact, low-profile design (81 × 14 × 10 mm)
-
Connector mount with hinged Fakra-C (Blue) connector
-
Omnidirectional radiation pattern for consistent coverage
-
Designed for harsh environments: IP-67; -40°C to +85°C
GNSS Frequency Support
-
BeiDou: 1561 MHz
-
GPS / Galileo / QZSS: 1575 MHz
-
GLONASS: 1598–1606 MHz
Electrical Specifications
| Parameter | Value |
|---|---|
| Impedance | 50 Ohm |
| Polarization | Linear |
| Radiation Pattern | Omnidirectional |
| Max Input Power | 25 W |
Performance (Typical)
| System | Efficiency | Peak Gain | VSWR |
|---|---|---|---|
| BeiDou | ~75.3% | ~3.5 dBi | ~1.4:1 |
| GPS/Galileo/QZSS | ~75.1% | ~3.3 dBi | ~1.3:1 |
| GLONASS | ~77.5% | ~3.9 dBi | ~1.1:1 |
Mechanical Specifications
-
Mounting Type: Connector Mount
-
Connector: Fakra-C (Blue), Female
-
Dimensions: 81 × 14 × 10 mm
-
Radome Material: POM
-
Color: Black
-
Connector Style: Hinged
Environmental
-
Operating Temperature: -40°C to +85°C
-
Storage Temperature: -40°C to +85°C
-
Compliance: RoHS
Ideal Applications
-
Vehicle navigation systems
-
Fleet tracking and telematics
-
Asset tracking devices
-
Industrial IoT positioning systems
-
Smart transportation and mobility solutions
This high-efficiency GNSS antenna is designed for reliable satellite positioning across multiple global navigation systems, including GPS, GLONASS, Galileo, BeiDou, and QZSS.
Featuring a compact connector-mount design with a hinged Fakra-C (blue) interface, this antenna is ideal for space-limited installations where dependable positioning performance is critical.
Its low-profile form factor and ground plane dependent design make it well-suited for automotive, telematics, and embedded IoT applications.
Why This Antenna?
This GNSS antenna delivers a strong balance of compact size, high efficiency, and multi-constellation compatibility, making it a reliable choice for applications that depend on accurate positioning in real-world environments.
