VNA Antenna Testing: How to Measure S11, VSWR & Impedance with a Vector Network Analyzer
VNA antenna testing is the most precise way to verify that an antenna is properly matched to its 50-ohm feed system across its intended frequency range. A vector network analyzer (VNA) measures how RF energy is reflected and transmitted by the antenna under test, reporting S-parameters such as S11 (return loss), along with VSWR and feed-point impedance. If an antenna is mis-tuned or the cable assembly is lossy, a VNA shows it immediately — before it costs you range, throughput, or transmitter life in the field.
This guide explains what a VNA measures, how to set one up for antenna testing, the calibration steps that make the results trustworthy, and how the common VNA models compare — from a sub-$100 NanoVNA to lab-grade Keysight and Rohde & Schwarz instruments.

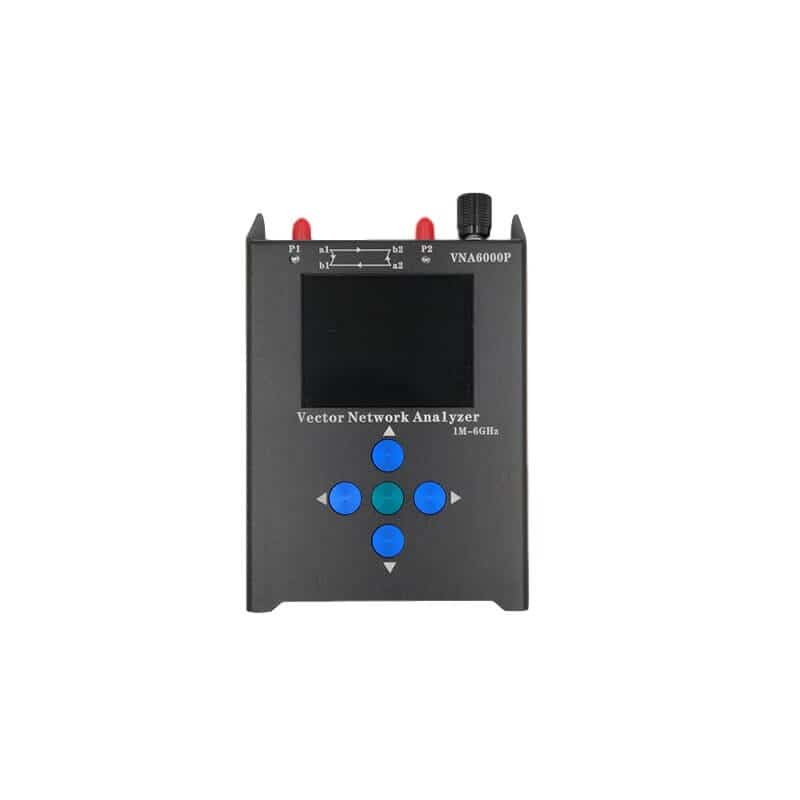

What Is a Vector Network Analyzer (VNA)?
A vector network analyzer is an electronic instrument used to measure the network parameters of electrical networks, primarily in the RF, microwave, and millimeter-wave frequency ranges. VNAs assess how RF signals transmit and reflect through a device under test (DUT) — here, an antenna or antenna cable assembly — and present the data as S-parameters (scattering parameters). Because a VNA measures both magnitude and phase, it gives far deeper insight than a simple SWR meter.
Key capabilities of a VNA
- S11 (return loss / reflection coefficient) – how much signal is reflected back from the antenna.
- S21 (insertion loss / forward gain) – how much signal passes through from one port to another (useful for cables, filters and two-antenna range tests).
- Phase and magnitude of the signal response across frequency.
- Impedance matching diagnostics referenced to 50 ohms.
- Real-time Smith Chart, VSWR, and gain visualization.
Why Use a VNA for Antenna Testing?
Antennas are passive components designed to radiate or receive electromagnetic signals efficiently at specific frequencies. VNA antenna testing confirms that the antenna:
- Is properly matched to its feed line (typically 50 ohms).
- Performs within its advertised bandwidth (frequency range).
- Minimizes return loss — reflections that waste transmit energy.
- Operates within the desired VSWR (a ratio of 2:1 or lower is a common target; 1.5:1 or lower is better).
A poorly tuned antenna — or a lossy cable between the radio and the antenna — can cause reduced range, lower signal quality, heat build-up in transmitters, and faster battery drain in mobile devices. Much of what a VNA flags as a "bad antenna" is actually the cable assembly, which is why testing the antenna and its antenna cable together matters.
Common VNA tests for antennas
| Measurement | Purpose |
|---|---|
| S11 / Return Loss | Shows how well the antenna is matched to the transmission line |
| VSWR (Voltage Standing Wave Ratio) | Measures reflection efficiency; a VSWR of 1.5:1 or lower is often desirable |
| Impedance Plot | Confirms the antenna's feed-point impedance across frequency (target 50 Ω) |
| Bandwidth Verification | Ensures the antenna maintains performance across its intended band |
Typical VNA Testing Setup for Antennas
Components you need
- VNA (e.g., Keysight, Rohde & Schwarz, or a low-cost NanoVNA)
- Calibration kit — Open, Short, Load (and Through) standards
- Low-loss RF test cables and adapters matched to your DUT connector
- Antenna under test (AUT)
- Anechoic chamber or open test environment for far-field measurements
Your test-cable and adapter quality directly affects accuracy. Use double-shielded, low-loss jumpers and the correct connector series so you are measuring the antenna, not the cable — for example an SMA cable or adapter for most WiFi/IoT antennas, or an N-type cable or adapter for higher-power and outdoor antennas. Data Alliance manufactures these assemblies to length, so you can match the test jumper to the connector on your antenna.
Basic steps
- Calibrate the VNA at the end of the test cable using SOLT (Short, Open, Load, Through) or an equivalent method, so the reference plane is at the antenna connector.
- Connect the antenna to Port 1 of the VNA for a single-port S11 test.
- Measure and analyze the S11 curve, the Smith Chart impedance trace, and VSWR across the frequency range.
- Optionally compare the results to the datasheet specs or a known-good reference antenna.
Example Use Cases
- Antenna development labs test new designs for embedded wireless modules (LoRa, GPS, WiFi, LTE).
- Field engineers use portable VNAs to verify and tune antennas on installed systems (base stations, IoT devices, UAVs).
- Manufacturing QA confirms each antenna batch meets return-loss and impedance specs before shipment.
Advantages of Using a VNA
- High precision compared with simpler tools such as SWR meters or spectrum analyzers.
- Wide frequency range — many VNAs cover kHz to multi-GHz.
- Visual diagnostics — the Smith Chart makes tuning intuitive.
- Real-time feedback for adjusting antenna elements or matching networks.
Practical Tips
- Always calibrate close to the DUT to eliminate cable effects.
- Use flexible, low-loss RF cables to maintain signal integrity.
- Avoid nearby conductive objects when testing — especially at high frequencies.
- For far-field radiation-pattern testing, pair the VNA with a turntable and reference antenna in an anechoic chamber.
Common VNA Models: Frequency Range, Ports, Use Case & Price Tier
The right VNA depends on your top frequency, port count, and budget. Verify the maximum frequency covers your highest band (for example 6 GHz for WiFi 6E / 5 GHz work) before buying.
| Model | Frequency Range | Ports | Use Case | Price Tier |
|---|---|---|---|---|
| NanoVNA V2 Plus4 | 50 kHz – 4.4 GHz | 2 | Hobbyist / field | Lower (~$170–$300) |
| NanoVNA-H4 | 50 kHz – 1.5 GHz | 2 | Entry-level antenna testing | Lower (~$70–$110) |
| RigExpert AA-230 ZOOM | 100 kHz – 230 MHz | 1 | HF/VHF antenna & cable | Lower (~$300–$400) |
| Siglent SVA1015X + VNA | 9 kHz – 1.5 GHz | 2 | Budget bench measurements | Mid (~$1,800–$2,500) |
| Anritsu ShockLine MS46122B | 1 MHz – 6 GHz | 2 | Production testing | Mid (~$7,000–$10,000) |
| Keysight FieldFox N9912A | 30 kHz – 6.5 GHz | 2 | Rugged field use | Higher (~$10,000+) |
| Copper Mountain S5065 | 9 kHz – 6.5 GHz | 2 | Lab / microwave R&D | Higher (~$12,000+) |
| Rohde & Schwarz ZNL3 | 5 kHz – 3 GHz | 2 | Lab-grade precision | Higher (~$15,000–$20,000) |
| Keysight E5071C ENA | 9 kHz – 20 GHz | 2–4 | R&D & production | Higher (~$12,000–$50,000+) |
Price tiers are approximate and vary by configuration and options — verify current pricing and the exact frequency/port specification with the manufacturer before purchase.
Conclusion
A VNA gives deep insight into how an antenna behaves across frequency and how well it is matched to its system. Whether you are building IoT devices, installing wireless infrastructure, or troubleshooting range issues, VNA antenna testing is a core skill for RF engineers and technicians. Pair the instrument with quality low-loss test cables so your measurements reflect the antenna itself — browse Data Alliance antenna cables and adapters, or contact technical support for a custom test jumper.
Frequently Asked Questions
What is a Vector Network Analyzer (VNA) and why is it important for antenna testing?
A vector network analyzer (VNA) is an electronic instrument used to measure the network parameters of RF, microwave, and millimeter-wave systems. It evaluates how signals are transmitted and reflected by a device under test (DUT), usually expressed as S-parameters. In antenna testing, a VNA reveals how well an antenna is matched to its system, its bandwidth performance, and its overall efficiency — with far more precision than a basic SWR meter.
What key parameters does a VNA measure for antennas?
The most common measurements are S11 (return loss / reflection coefficient), which shows how much signal is reflected back from the antenna; S21 (insertion loss / forward gain), which indicates how much signal passes from one port to another; impedance, which verifies how closely the antenna matches the 50-ohm feed line; VSWR (voltage standing wave ratio), which assesses reflection efficiency and is ideally 2:1 or lower; and Smith Chart analysis, which visualizes impedance and matching conditions in real time.
Why is impedance matching important in antenna testing?
Impedance matching ensures the maximum amount of signal is transferred between the antenna and the transmission line. Poor matching causes reflections (high return loss) that reduce range, degrade signal quality, waste power as heat, and can even damage transmitters or shorten battery life in mobile devices.
What are the most common VNA tests performed on antennas?
Key tests include return loss (S11), which indicates how efficiently the antenna radiates; VSWR, where a lower ratio means better matching; impedance plots, which confirm feed-point impedance across frequency; and bandwidth verification, which ensures the antenna maintains performance across its specified operating range.
How do you set up a VNA for antenna testing?
A typical setup includes the VNA instrument, a calibration kit (Open, Short, Load standards), low-loss RF cables and adapters, the antenna under test, and a suitable testing environment (an anechoic chamber or open area for far-field tests). The workflow is: calibrate the VNA using the SOLT method at the end of the test cable, connect the antenna to Port 1, and measure S11, VSWR, and impedance across the frequency range.
What are the advantages of using a VNA over simpler tools?
Compared with SWR meters or spectrum analyzers, a VNA offers higher precision, wide frequency coverage (from MHz to multi-GHz), real-time diagnostic visuals such as Smith Charts, and immediate feedback for tuning antennas or matching networks.
What common mistakes should you avoid when testing antennas with a VNA?
Avoid not calibrating close to the DUT, since cable effects can skew results; using poor-quality cables, since high-loss or stiff cables reduce accuracy; testing near conductive objects, since surrounding metal can distort readings; and skipping environment control, since antennas can behave differently indoors versus in anechoic or open-field setups.
Which VNAs are commonly used for antenna testing, and what do they cost?
Popular models span a wide price range: the NanoVNA V2 Plus4 (50 kHz–4.4 GHz, portable, ~$170–$300), the RigExpert AA-230 ZOOM (100 kHz–230 MHz, great for HF/VHF, ~$300–$400), the Anritsu ShockLine MS46122B (1 MHz–6 GHz, production testing, ~$7,000–$10,000), the Keysight FieldFox N9912A (rugged field VNA, ~$10,000+), and the Keysight E5071C ENA (lab-grade, up to 20 GHz, ~$12,000–$50,000+). The right choice depends on whether you are a hobbyist, a field engineer, or working in advanced R&D.
