Antenna cable: N-male to H.FL - To attach antenna to internal wireless card (mini PCI card)

Antenna cable: N-male to H.FL - To attach antenna to internal wireless card (mini PCI card)

Price: $6.99 Discounts: Qty 5-9: 10% | Qty 10-19: 15% | Qty 20-0: 20%

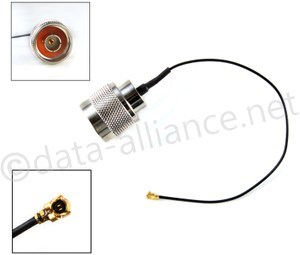

ANTENNA CABLE: I-PEX (H.FL equivalent) TO N-male

(6 inches)

One end has a I-PEX connector (equivalent to H.FL), and the other end has a N-male connector.

This cable is 6 inches long. Cable type is 1.13

I-PEX connector mates with cable-connector U.FL-LP-66, found on mini-PCI wireless cards such as:

Intel PRO / wireless 2200BG Network Connection (WM3B2200BG)

This pigtail enables connection of an external antenna to a mini-PCI wireless card with a female hirose/U. FL connector U.FL-LP-66 connector. Mini-PCI wireless cards are designed for laptops.

The mini-PCI card in the photos is for compatibility-evaluation only and is not included in the listing.

Gender of N-male is counter-intuitive: Please observe picture & note it is correct.

The gender is referring to the pins inside--not the threads. N-male has threads on inside.

Click here for more details regarding SMA gender determination.

I-PEX connector is identical to H.FL and mates with cable-connector U.FL-LP-66, found on mini-PCI wireless cards such as: Intel PRO / wireless 2200BG Network Connection (WM3B2200BG)
