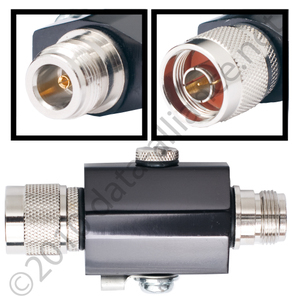

Lightning Surge Arrestor with N connectors (male & female) for WiFi / wireless networks
SUMMARY SECTION Español version
1. Easily replaced Gas Tube element
2. Multi-strike protection capacity: Capable of protecting against multiple strikes
3. Bi-Directional protection
4. Excellent for IEEE 802.11b/g WiFi , ISM, PCS, Cellular, MMDS & other applications.
5. N-connectors: N-male on one end and N-female on the other
| ELECTRICAL SPECIFICATIONS |
|
Impedance: 50 Ohm
|
| Frequency: 0 - 3.0GHz |
|
| Gas Tube Elements DC Breakdown Voltage Indicated: |
90V/230V/350V +/- 20% |
| Gas Tube Impulse Breakdown Voltage: |
1,000V +/- 20% |
| Maximum Withstanding: |
5,000A |
| Insertion Loss: 0.2dB Typical, 0.35dB Max. at 2.4GHz |
|
| MECHANICAL & ENVIRONMENTAL SPECIFICATIONS |
| Connector Body Material: |
Nickel-Plated Brass |
| Pin Material: |
Gold-Plated Brass |
| O-Ring Material: |
Rubber |
| Weatherproof and Dust Rating: |
IP65/IEC 529 5 |
| Salt Spray: |
MIL-STD-202 Method 101 Test Cond. B |
